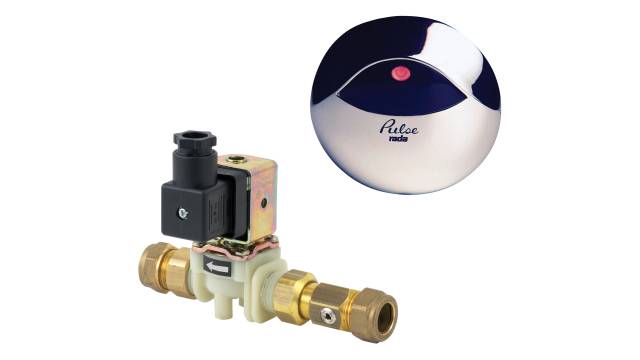

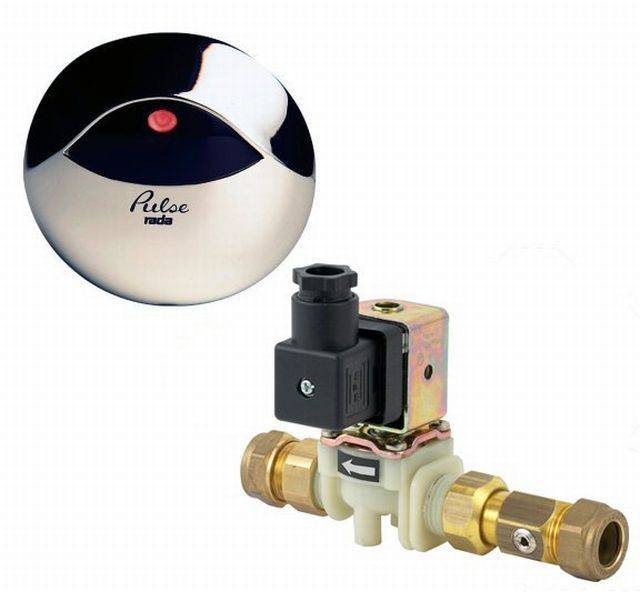

Rada Pulse 120 Operating System

Verified by manufacturer 6 days ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Water-control operating system.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For individual showering or hand washing. To be used with Rada Pulse Control Box System.

Description

Water-control operating system.


Features and benefits:

  • Hygienic 'no-touch' infra red sensor.
  • Incorporates a solenoid valve.
  • The duration of the flow for each outlet can be individually pre-set, via the control box and programmer.
  • The solenoid valve is supplied complete with an integral isolator and filter.

General information

Color

Silver

Finish

Chrome

Material

Plastic

Polyamide

Length

22 mm

Width

84 mm

Height

84 mm

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

Product range

Sports and Leisure
Education
Washrooms

Specification data - Shower thermostatic water supply sets

Materials

-

Body

Engineering plastic and fibreglass polyamide.

Finish and colour

Chrome plated.

Accessories

Not required.

Rada Pulse control box.

Rada Pulse hand held programmer.

Ingress protection (IP) rating

IP55.

Operation

Occupancy sensor.

Controller

Surface mounted.

Ambient temperature

0–40°C.

Bar

0.20–10 bar.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved
