Rada PA - ETF Shower Panel Assembly

Verified by manufacturer 7 months ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

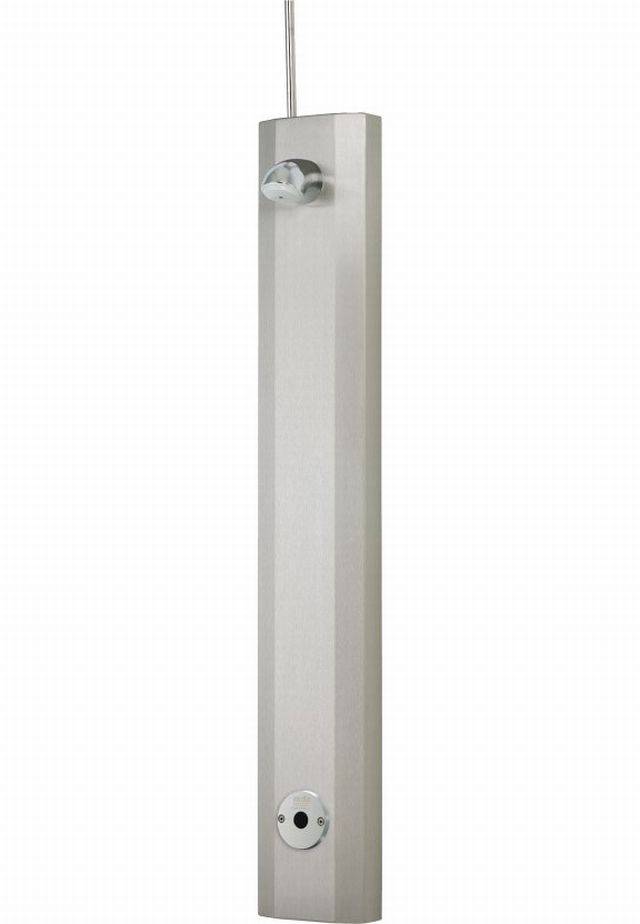

Ready to install stainless steel shower panel.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Description

A ready to install, satin stainless steel panel with single pipe entry for connection to pre-blended water supply. Units incorporate a Rada Pulse 129 electronic timed flow operating system with no-touch sensor (for connection to a Rada Pulse Control Box) and Rada VR105 vandal resistant shower head with integral strainer and flow regulator. Options include an adjustable spray angle.


Features and benefits:

  • Concealed pipe-work which protects users from high surface temperatures.
  • Long, sleek design – suitable for all ages and abilities.
  • Robust and durable materials used throughout.
  • Easy to install and maintain - integral isolator and flexible connection provided.
  • Product designed to reduce water consumption

Operation:

  • The flow cycle is activated when the user passes a hand within the target range of the infra-red sensor.
  • The duration of each flow cycle can be pre-set via the Rada Pulse control box.

General information

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Size

(h x w x d)

Length

156 mm

Width

192 mm

Height

1217 mm

WarrantyDescription

Two year

Two years parts and labour as standard.

Five year

Extended to five years parts and labour if commissioned by Rada. UK only.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Sports and Leisure
Education
Secure
Student Accommodation

Specification data - Shower fittings package

Form

Preplumbed shower panel with Rada Pulse 129 operating system and Rada VR105 shower head.

Rada Pulse 129 for connection to a Rada Pulse Control Box.

Materials

-

Body

Stainless steel panel, brass solenoid valve, copper alloy timed flow control and shower head, engineering plastic spray plate.

Finish and colour

Brushed panel, chromium plated shower head.

Integral accessories

Integral isolator and stainless steel braided flexible connection hoses. Shower head with integral strainer and flow regulator.

Flexible hoses with EPDM liner throughout.


Options

None.

Adjustable spray angle.

Accessories

Not required.

Rada Pulse control box.

For Rada Pulse 129 electronic timed flow operating system to connect to.

Water pressure

Minimum maintained pressure with 9 litres/ minute flow regulator fitted in the shower head: 1.0 bar. Minimum maintained pressure with flow regulators removed: 0.5 bar. Maximum static pressure: 7.0 bar.

Connections

15 mm compression to blended water inlet pipe.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

  • Water Regulations Advisory Scheme (WRAS) approved
