Rada PA - 215TF Shower Panel Assembly

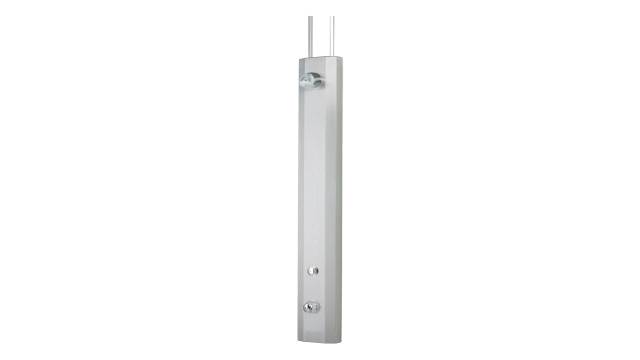

Rada PA-215TF Shower panel assembly:

A ready to install, satin finished, stainless steel panel with hot and cold water pipe entry connecting to a concealed Rada 215-t3, TMV3 approved, thermostatic mixing valve, with adjustable temperature selection, feeding a Rada TF503 push button timed flow control and a Rada VR105 vandal resistant chrome plated shower head with integral strainer and flow regulator.

Units are available with an adjustable spray angle option.

Rada PA-215TFW Shower panel assembly:

A ready to install, white powder coated, stainless steel panel with hot and cold water pipe entry connecting to a concealed Rada 215-t3, TMV3 approved, thermostatic mixing valve, feeding a Rada TF503 push button timed flow control and a Rada VR105 vandal resistant chrome plated shower head with integral strainer and flow regulator.

Units are available with an adjustable spray angle option.

Dimensions:

1217 mm high x 192 mm wide x 156 mm deep.

Connections:

Inlet - 15 mm compression to both hot and cold feeds.

Operation:

• The flow cycle is activated by pressing the flow button.

• The flow rate is constant and is automatically turned off after approximately 30 seconds.

• Further economy of water usage can be achieved by means of an internal flow rate adjuster.

• Showering temperatures can be selected (up to a pre-set maximum temperature) via a rotary control knob.

Temperature range:

• Optimum thermostatic control range: 35°C to 45°C.

• Recommended hot water: 55°C to 65°C.

• Recommended cold water temperature: 5°C to 20°C.

• Maximum hot water temperature: 85°C.

Pressure/ Flow rates:

• Minimum maintained pressure with 9 litres/minute flow regulator fitted in the shower head: 0.5 bar.

• Minimum maintained pressure with flow regulators removed: 0.2 bar.

• Maximum static pressure: 7.0 bar.

Materials:

• Panels: Brushed stainless steel or white powder coated finish.

• Stainless steel braided flexible hoses with EPDM liner throughout.

• Rada 215-t3 thermostatic mixing valve: DZR brass with chrome plated knob.

• Timed flow control: Body and some internal components manufactured from copper alloys.

• Shower head: Chrome plated copper alloy body with engineering plastic spray plate.

Adjustable spray angle.
