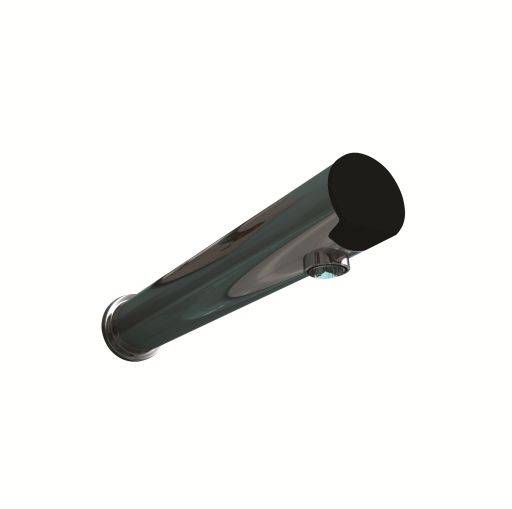

Rada Outlook panel mounted IR spout.
Rada Outlook is a six outlet digital thermostatic mixing valve, with programmable timed flow for hand washing and showering applications, operated by a choice of touch sensors, non-touch sensors, or non-touch spout.
Features and benefits:
Non-touch flow control for wash basins, Contains conealed infra red sensor, so no requirement for wall-mounted sensor control, 150 mm in length
Non-touch flow control for wash basins, Contains conealed infra red sensor, so no requirement for wall-mounted sensor control, 225 mm in length
Non-touch flow control for wash basins, Contains conealed infra red sensor, so no requirement for wall-mounted sensor control, 190 mm in length
Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada
N13/375 Shower units
N13/40 Shower units
Rada Outlook (1.1621.099)
Required items (select all)
IR Sensor (1.1621.112)
RS485 Converter and Software (1.1621.117)
Piezo Hand Sensor (1.1621.085)
Required non-touch infra-red sensor mounted spout (select one)
150 mm IR Spout: 1.1621.136
190 mm IR Spout: 1.1621.132
225 mm IR Spout: 1.1621.137
Rada Isolating Key Switch (2.1495.080)
For temporary disablement of the Rada Outlook sensor box during cleaning or maintenance of showering.
Rada Outlook Outlet By-Pass Adaptor (1.1621.115)
To channel an unused outlet to an open outlet. Useful when there are less than six outlets utilised. Eliminates water 'dead spots' where bacteria can spread.
Rada Outlook RS485 Socket (1.1621.116)
RS485 cable to connect the RS485 converter to a sensor box within a network. The network is then accessible via laptop/ PC at that point.
Rada Relay Box (2.1495.044)
For use with the Rada Outlook sensor box to provide three switched relays for operation of pumps, lights and fans.
Standard product features
Flat faced union connections.
Sensor flow control: Non-touch ON/ OFF. Touch ON/ OFF. Non-touch ON/ OFF spout.
Programmable temperature range:
- Factory settings:
- Programmable range:
Duty flush not enabled at factory, programming required.
