Rada Ligature Resistant Operating System

Verified by manufacturer over a year ago

Rada

Ligature resistant active infra-red sensor and solenoid valve, designed to be used with the Rada Pulse Control Box System and LR Head - for prisons and secure psychiatric facilities.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For showering and handwashing use, ideal for prisons and secure psychiatric facilities.

Description

Ideal for prisons and secure psychiatric facilities.


Features and benefits:

  • Designed to be recessed or built within wall surface for extra security.

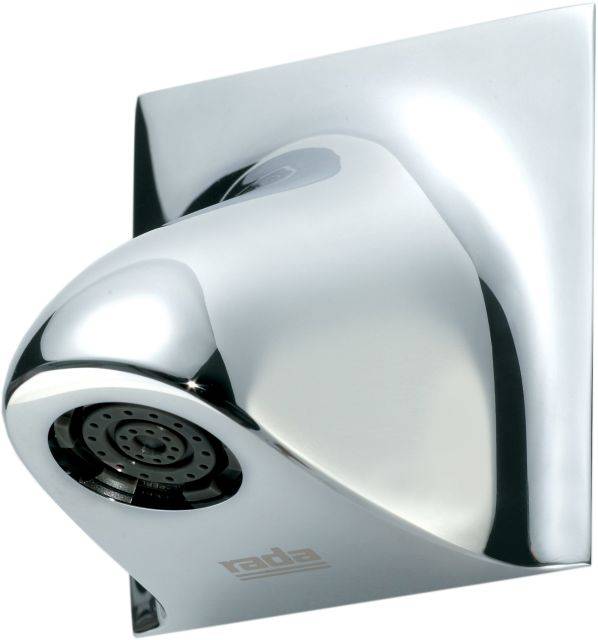

LR Head:

  • Fitted with 8 litres/ minute (shower) cartridge providing consistent flow.
  • 1/2" BSP connection.

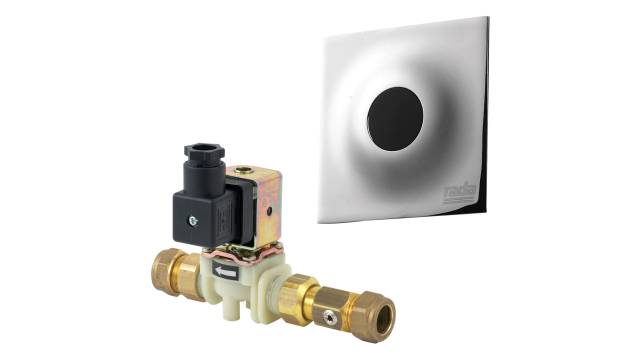

LR sensor/ LR operating system:

  • No-touch control of a washbasin or shower.
  • For use with Rada pulse control box system.

General information

Color

Silver

Finish

Chrome

Material

Brass

Plastic

Warranty description

Two years parts and labour as standard; extended to five years parts and labour if commissioned by Rada. UK only.


-

Uniclass

Pr_40_20_87_76 Shower headsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Secure

Specification data - Shower heads

Materials

-

Body

Brass and engineering plastic.

Finish and colour

Chrome plated.

Size

Head

75 x 75 x 71.4 mm.

(w x h x d).

TemperatureRange

5–90°C.

Designed to accept water supplied between 5–90°C.

NominalSupplyVoltage

12 V a.c. + 10% 50/60Hz.

 Via Rada pulse control box.

Sensor

IP65.

Protection class sensor: IP65.

Pressure

5.0 bar.

  • Maximum maintained pressure at the inlet of the fitting: 5.0 bar.
  • Recommended minimum maintained pressure at the inlet: 0.5.

Showerhead

Brass, polished chrome.

Connection

1/2" BSP connection.

LR head.

Flow rate

6 L/ min.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016
