Rada Autotherm-3 BSM

Verified by manufacturer 10 days ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

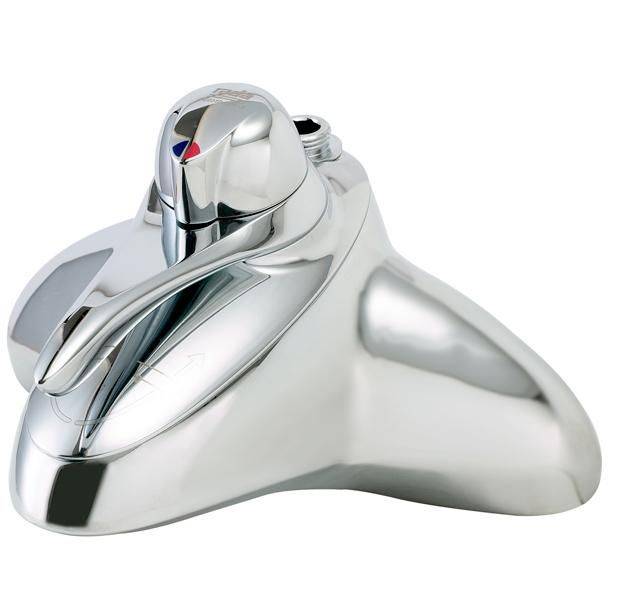

Fully thermostatic bath and shower mixer.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For both high and low pressure use.

Description

Fully thermostatic bath and shower mixer.


Features and benefits:

  • Featuring a patented automatic safe temperature adjustment on the shower.
  • The only thermostatic bath and shower mixer approved to the toughest TMV3 healthcare standard.
  • Approved to the TMV2 standard for residential use.
  • It will automatically reset a safe maximum showering temperature, where a higher bathfill temperature had already been set.
  • Easy 'above-the-bath maintenance', body removable from manifold for easy access to check valves and filters.
  • Inlets supplied with 0.5 m long flexible hoses: 22 mm compression.
  • Fitting with isolating valves.
  • Facility to deliver one maximum temperature for bath fill and another for showering.
  • Supplied complete with service-free temperature and flow cartridges, check valves, strainers, isolating ball valves and flexible tails.


Approvals:

Buildcert TMV3 Thermostatic Mixing Valve Scheme approved:

  • LP-S - Low Pressure Shower.
  • LP-T44 - Low Pressure Bathfill.
  • LP-D44 - Diverts to bath and shower with appropriate temperature selection.
  • HP-S - High Pressure Shower.
  • HP-T44 - High Pressure Bathfill.
  • HP-D44 - Diverts to bath and shower with appropriate temperature selection.
  • Certificate No: BC 103 0804.
  • Complies with the technical requirements of BS 7942 for the same designations.

Buildcert TMV2 Thermostatic Mixing Valve Scheme approved:

  • HP-B- High Pressure Bidet.
  • HP-S - Pressure Shower.
  • HP-W- Pressure Washbasin.
  • HP-T - High Pressure Bathfill.
  • LP-S - Low Pressure Shower.
  • Certificate No: BC 121 0205.
  • Designed to comply with European Standards BS EN1111 and BS EN1287.
  • Water Regulations Advisory Scheme (WRAS) approved.
  • Designed, manufactured and supported in accordance with accredited BS EN ISO 9001 and BS EN ISO 14001.

General information

Finish

Chrome

Material

Brass

DZR

Uniclass

Pr_40_20_87_07 Bath mixer taps with shower hose and hand spraysPrimary

CAWS

N13/355 Baths

S90/680 Thermostatic mixing valves

S90/680 Thermostatic mixing valves

N13/35 Baths

Product range

Sports and Leisure
Healthcare
Student Accommodation

Specification data - Bath mixer taps with shower hose and hand sprays

Standards

To BS 7942, BS EN1111, BS EN1287, BS EN ISO 9001 and BS EN ISO 14001

Approval

Water Regulations Advisory Scheme (WRAS) approved and Buildcert TMV2 and TMV3 scheme approved

Form

Bath mixer tap with shower hose.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Water supply temperature (maximum)

65°C.

  • Factory preset to 41°C for shower and 44°C for bathfill.
  • Optimum thermostatic control range: 35–45°C.
  • Recommended hot: 55–65°C.
  • Recommended cold: 5–20°C.

Integral accessories

Rada Autotherm-3 EV Shower Fittings (1.1533.117).

Shower fittings including three mode adjustable chrome handset, slide bar, 1.5 m hose and soap dish.

Rada Autotherm-3 EV - CAT 5 Shower Fittings (1.1533.118).

Shower fittings including three mode adjustable chrome handset, slide bar, 1.5 m hose, soap dish and patented security ring approved for Category 5 installations.

Rada BSM Shower Fittings (1.1533.247).

Shower fittings including three mode adjustable chrome handset, slide bar, 1.5 m hose and soap dish.

Product Reference

Rada Autotherm-3 BSM

Operation

Manual, lever.

Dimensions

243 x 165 x 152 mm.

Pressure

0.2–5.0 bar.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
AECOsim
-

1

Revit

Revit 2015

3

IFC

IFC2X3

3

Third party certifications

  • Buildcert TMV2 Thermostatic Mixing Valve Scheme: BC 121 0205
  • Buildcert TMV3 Thermostatic Mixing Valve Scheme: BC 103 0804
