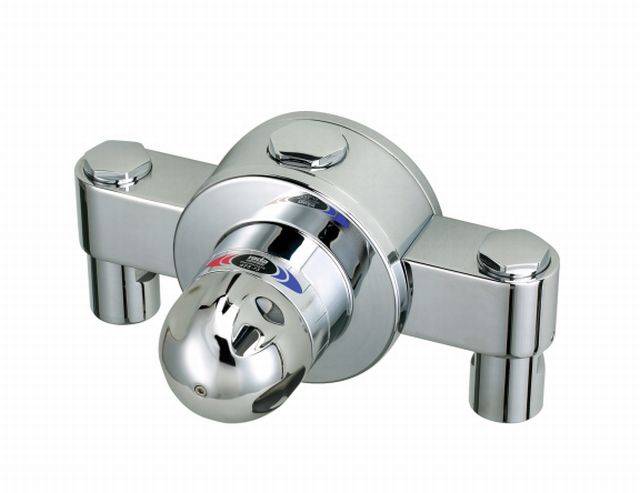

Rada 425-T3 C Thermostatic Mixing Valve

Rada 425-T3 C Thermostatic Mixing Valve

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

Rada

A 1" surface mounted thermostatic mixing valve suitable for group shower applications.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

A 1" surface mounted thermostatic mixing valve suitable for group shower applications.

General information

Uniclass 2015

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

S90/67 Thermostatic mixing valves

S90/680 Thermostatic mixing valves

Specification data - Shower thermostatic water supply sets

Product Reference

Rada 425-T3 C (1.1523.037)

Standard product features

Type 425-T3 C thermostatic mixing valve incorporates a Radatherm temperature sensor, check valves, filters and isolating ball valves and is supplied with 28 mm compression fittings.

Connections:

  • Inlet: 1" BSP female or 28 mm compression fittings (adaptors supplied).
  • Outlet: 1" BSP female.
  • Standard connections are hot-left, cold-right, outlet-top, when facing the control.

Note: The outlet can be altered to bottom outlet if required, by repositioning the drain plug.

Operation:

The temperature control knob allows the user to select the required temperature within the range available. An integral temperature stop limits the maximum temperature to a pre-set level and can only be reset by an authorised person (alternatively, the temperature knob can be locked in position after the desired temperature has been selected).

Flow control:

A separate flow control is required.

Temperature range:

  • Thermostatic control range: 25°C to 60°C.
  • Optimum thermostatic control range: 35°C to 46°C.
  • Minimum cold water temperature: 1°C.
  • Maximum hot water temperature: 85°C.

Pressure/ Flow rates:

  • Minimum dynamic supply pressure: 0.1 bar (0.2 bar in healthcare).
  • Maximum dynamic pressure: 3.5 bar.
  • Maximum supply static pressure: 10 bar.
  • Minimum flow rate: 8 litres/minute at mid blend with nominally equal supply pressures.
  • Maximum flow rate: 200 litres/minute.
  • Maximum pressure loss ratio: 10:1 (in favour of either supply during flow).

Materials:

Body - DZR brass chrome plated.

Third party certifications
  • BS 7942 : LP-T44 Low pressure bathfill - LP-T46 Low pressure bathfill
  • Sanitary tapware - BS EN 1111 : Thermostatic mixing valves (PN10) General technical specification
  • Sanitary tapware - BS EN 1287 : Low pressure thermostatic mixing valves. General technical specification
  • Buildcert: Certificate - ETC 131/0501 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
  • Water Regulations Advisory Scheme (WRAS) approved
