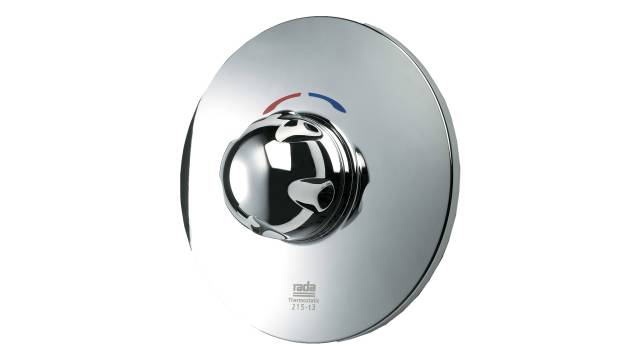

1/2" concealed thermostatic mixing valve suitable for group showering.
A ½" surface mounted thermostatic mixing valve, incorporating a sealed cartridge. Please note this requires separate outlet flow control.
Features and benefits:
Color | Silver |
Finish | Chrome |
Material | Brass Body: DZR brass nickel plated. |
WarrantyDescription | Two year Two years parts and labour as standard. Five year Extended to five years parts and labour if commissioned by Rada. UK only. |
Uniclass | |
CAWS | S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves |
Product range |
Form | Wall mounted thermostatic shower mixer valve. |
Materials | - |
Body | Brass.DZR brass nickel plated. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 35 L/min.At mid blend. |
Water supply temperature (maximum) | 43°C.Factory pre-set maximum outlet temperature. |
Integral accessories | Integral strainers, check valves, cartridge, swivel elbows with 15 mm compression connectors. |
Connections | Inlet and outlet - ½" BSP external union or 15 mm compression fittings. Standard connections are hot-left, cold-right, outlet-top, when facing the control. |
Flowrate | 3 L/min (minimum). Minimum flow rate at mid blend (which equates to a maximum pressure loss of 1.8 bar). |
MaximumPressureLoss(Ratio) | 10:1 (in favour of either supply). |
NominalStaticPressure | 10 bar (maximum). |
Operating temperature | Minimum temperature differential, blend to either supply: 12°C; Optimum thermostatic control range: 30°C to 50°C; Minimum cold water temperature: 1°C; Maximum hot water temperature: 85°C. Note: The mixing valve can accept temporary temperature excursions above 85°C without damage, however, operation of the mixing valve at such elevated temperatures is not recommended. For reasons of general safety, hot water storage supply temperatures should ideally be maintained at between 60°C and 65°C where serving ablutionary requirements. |
Operation | The mixing valve does not have integral flow control: appropriate provision must be made for this in the outlet pipework. |
Water pressure(Dynamic supply pressure) | 0.15 bar (minimum), 5.0 bar (maximum). |
