NBS Source

Rada 129 Mono-Control System

Verified by manufacturer 7 months ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

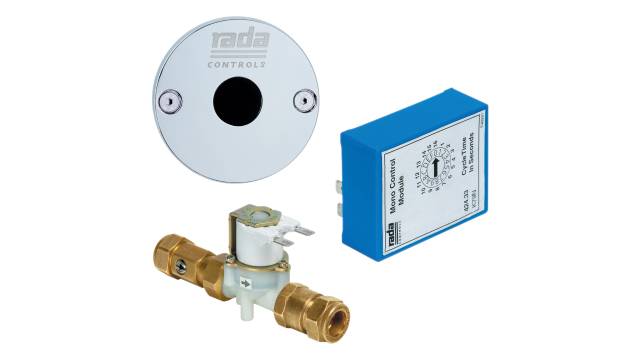

Wall mounted active infra-red sensor, control module and solenoid valve for single washbasin or shower.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For the control of water to a single shower, hand washbasin or urinal.

Description

A mono-control operating system incorporating a mono control module, 'no-touch' sensor and a solenoid valve.


Features and benefits:

  • Hygienic 'non-touch' automatic urinal flushing.
  • Ceiling mounted for 'non-touch' control of a single urinal.
  • Programmable flush times provides flexibility and greater economy.
  • Automatic duty flush when building unoccupied.
  • All elements linked via safe extra low voltage (12 Volts) supply.

General information

Color

Chrome sensor.

-

Finish

Chrome

Sensor

Material

Polyamide

Solenoid valve

Length

12 mm

Width

84 mm

Height

84 mm

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

Product range

Sports and Leisure
Education
Student Accommodation

Specification data - Shower thermostatic water supply sets

Materials

-

Body

Fibreglass polyamide.

Solenoid valve

Finish and colour

Chrome plated.

Sensor

Accessories

Not required.

Rada Universal 12 V a.c. Transformer.

Operation

Occupancy sensor.

Controller

Surface mounted.

Ambient temperature

5–40°C.

Power consumption

6 VA.

Ingress protection (IP) rating

IP65.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Literature

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved
