Rada 125 Mono-Control System

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

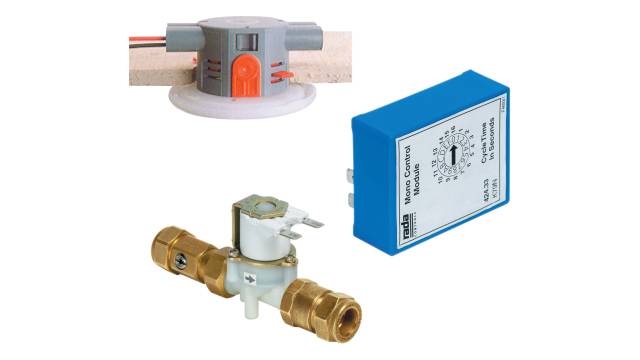

Ceiling mounted passive infra-red sensor, control module and solenoid valve.

Jump to:
+44 (0)344 571 1777 Website

Application

For the control of water to a single urinal.

Description

A mono-control operating system incorporating a mono control module, 'no-touch' sensor and a solenoid valve.


Features and benefits:

  • Hygienic 'non-touch' automatic urinal flushing.
  • Ceiling mounted for 'non-touch' control of a single urinal.
  • Programmable flush times provides flexibility and greater economy.
  • Automatic duty flush when building unoccupied.
  • All elements linked via safe extra low voltage (12 Volts) supply.

General information

Material

Fiber-glass

Polycarbonate

Length

55 mm

Width

128 mm

Height

128 mm

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_75_50_46_31 Flush control devicesPrimary

Product range

Sports and Leisure
Education
Secure
Student Accommodation
Washrooms

Specification data - Flush control devices

Operation

Occupancy sensor.

Controller

Surface mounted.

Accessories

Not required.

Rada Universal 12 V a.c. Transformer.

Ingress protection (IP) rating

IP55.

Power consumption

6 VA.

Ambient temperature

5–40°C.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library

Literature

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved
