Rada 124 Mono-Control System

Verified by manufacturer 7 days ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

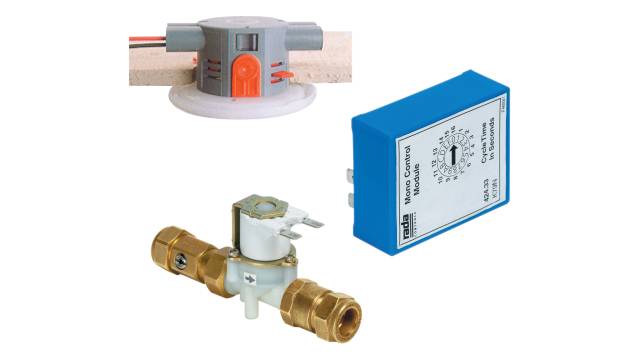

Ceiling mounted passive infra-red sensor, control module and solenoid valve.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For the control of water to a single shower, hand washbasin or urinal.

Description

A mono-control operating system, incorporating a mono control module, 'no-touch' sensor and a solenoid valve.


Features and benefits:

  • Hygienic 'non-touch' control.
  • Ceiling mounted sensor for 'non-touch' control of individual washbasins.
  • Economy and flexibility - timing can be programmed to suit application.
  • All elements linked via safe extra low voltage (12 Volts) supply.


General information

Material

Polyamide

Acrylonitrile butadiene styrene (ABS)

Length

55 mm

Width

128 mm

Height

128 mm

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply sets

Primary

Product range

Sports and Leisure
Education
Secure
Student Accommodation
Washrooms

Specification data - Washbasin thermostatic water supply sets

Materials

-

Body

Polycarbonate acrylonitrile butadiene styrene (PC-ABS)/ Fibreglass polymide.

Accessories

Not required.

Rada Universal 12 V a.c. Transformer.

Ingress protection (IP) rating

IP55.

Power consumption

6 VA.

Ambient temperature

5–40°C.

Operation

Occupancy sensor.

Controller

Surface mounted.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved

Literature

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls
