Rada 122 Mono-Control System
Verified by manufacturer 3 months ago

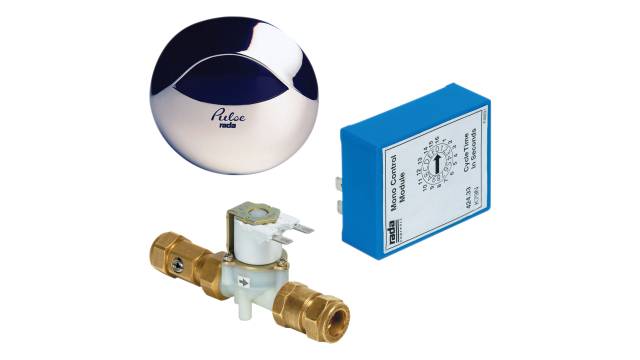

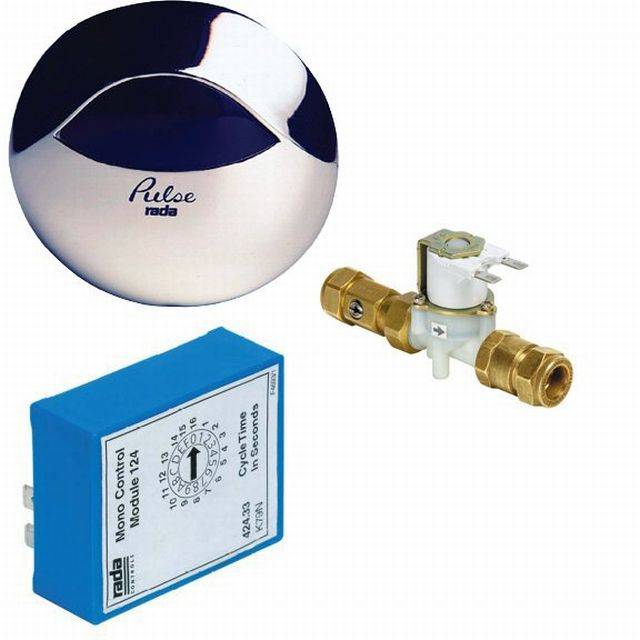

Wall mounted passive infra-red sensor, control module and solenoid valve.
Application
For automatic single urinal flushing.
Description
Wall mounted passive infra-red sensor, control module and solenoid valve.
Features and benefits:
- Hygienic 'non-touch' automatic urinal flushing.
- Wall mounted sensor for 'non-touch' control of a single urinal.
- Programmable flush times provides flexibility and greater economy.
- Automatic duty flush when building unoccupied.
- All elements linked via safe low voltage (12 volts) supply.
General information
Color | Silver Chrome sensor. |
Finish | Chrome Sensor |
Material | Plastic Sensor Polyamide |
Length | 22 mm |
Width | 84 mm |
Height | 84 mm |
Warranty descriptionTwo-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only. | - |
Uniclass |
Product range |
Specification data - Flush control devices
Operation | Occupancy sensor. |
Controller | Surface mounted. |
Accessories | Not required. Rada Universal 12 V a.c. Transformer. |
Power consumption | 6 VA. |
Ambient temperature | 5–40°C. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
