Rada 122 Mono-Control System

Verified by manufacturer 7 days ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

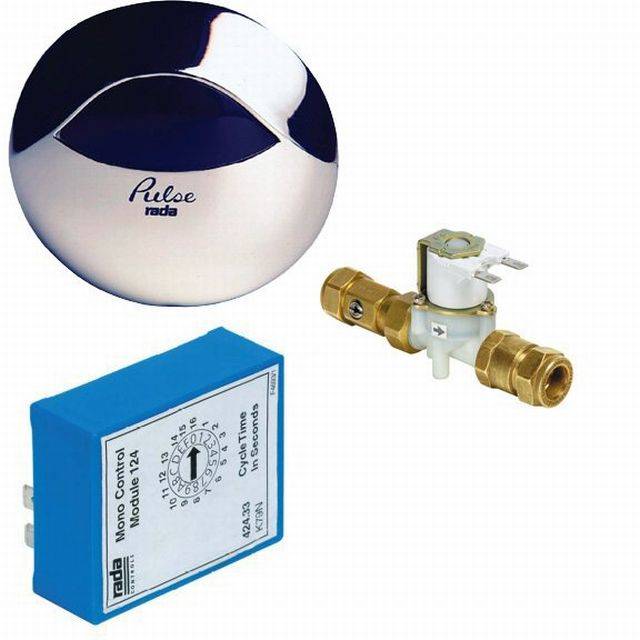

Wall mounted passive infra-red sensor, control module and solenoid valve.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For automatic single urinal flushing.

Description

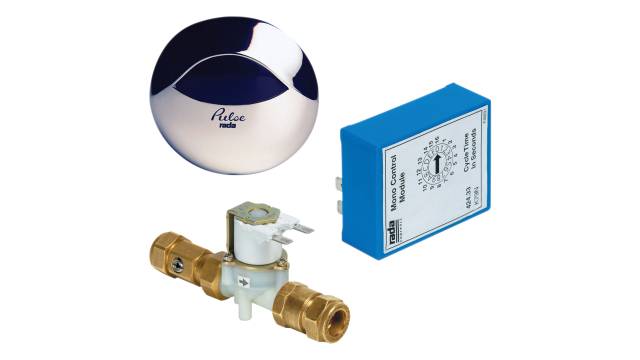

Wall mounted passive infra-red sensor, control module and solenoid valve.


Features and benefits:

  • Hygienic 'non-touch' automatic urinal flushing.
  • Wall mounted sensor for 'non-touch' control of a single urinal.
  • Programmable flush times provides flexibility and greater economy.
  • Automatic duty flush when building unoccupied.
  • All elements linked via safe low voltage (12 volts) supply.

General information

Color

Silver

Chrome sensor.

Finish

Chrome

Sensor

Material

Plastic

Sensor

Polyamide

Length

22 mm

Width

84 mm

Height

84 mm

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_75_50_46_31 Flush control devicesPrimary

Product range

Sports and Leisure
Education
Washrooms

Specification data - Flush control devices

Operation

Occupancy sensor.

Controller

Surface mounted.

Accessories

Not required.

Rada Universal 12 V a.c. Transformer.

Power consumption

6 VA.

Ambient temperature

5–40°C.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved

Literature

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls
