Raaft® Planterline Straight/ Curved - Steel planter panels
Verified by manufacturer 3 months ago

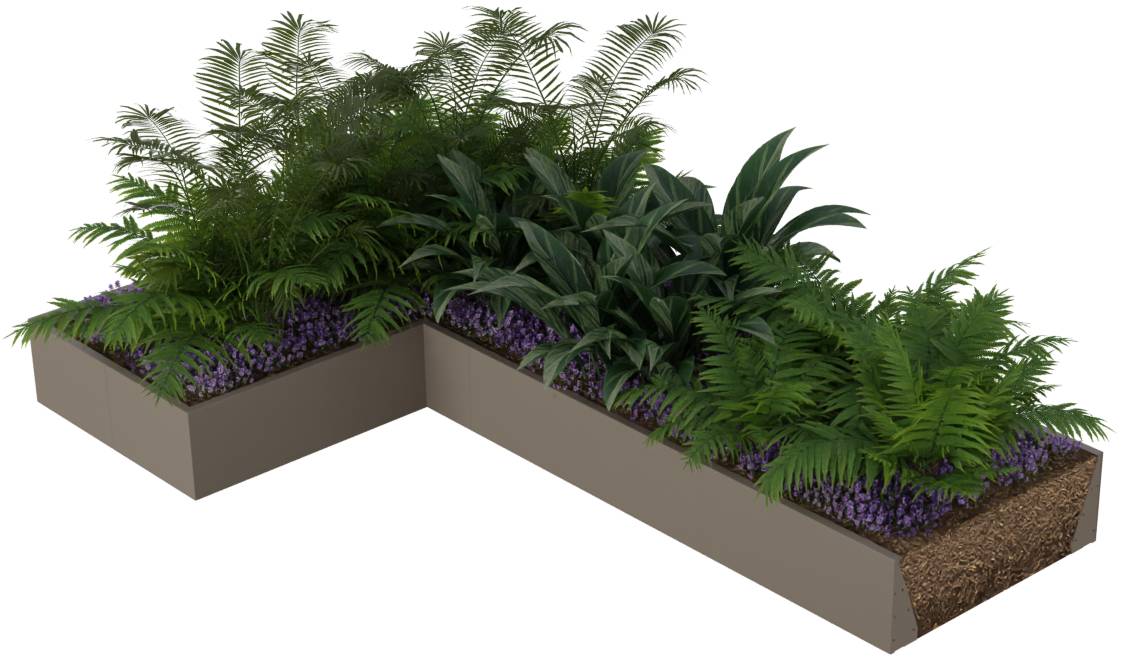

Raaft Planterline Custom - Curved

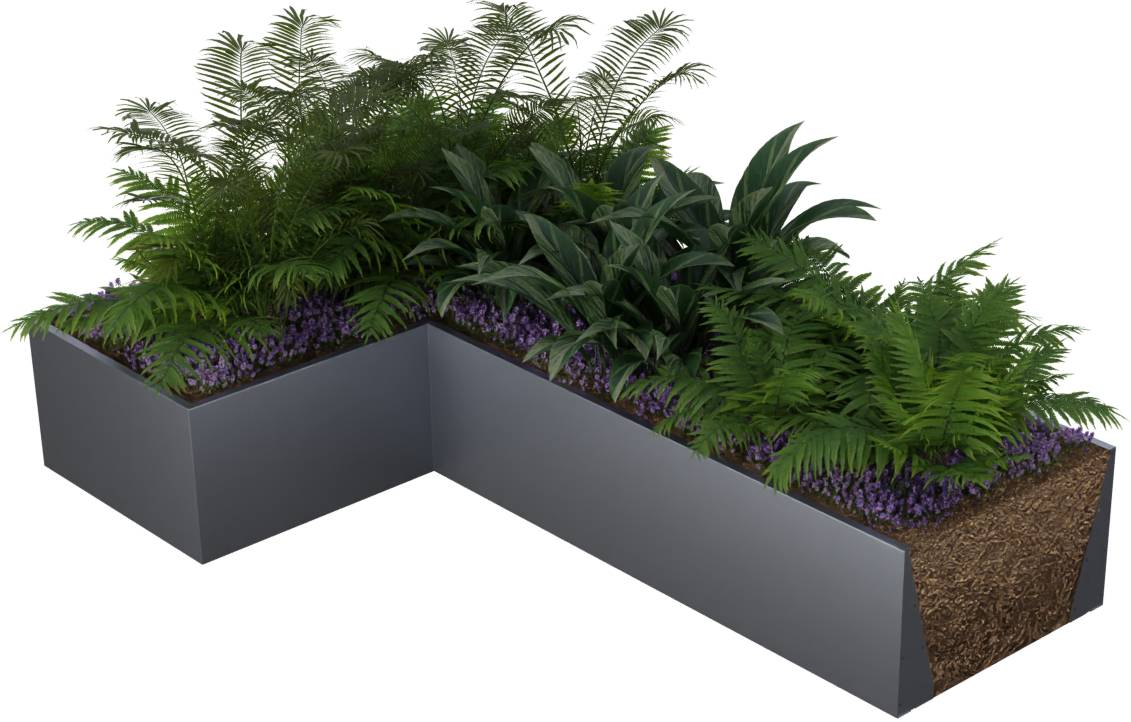

Raaft Planterline Custom - Curved
Steel planter panels available in bespoke sizes and shapes
Application
Suitable for roof terraces, parks, playgrounds and many other external spaces.
Description
Steel planter panels available in straight and curved bespoke sizes. The panels have a distinctive folded design that ensures a strong retaining structure but also keeps weight to a minimum making this a particularly suitable choice for roof terrace applications.
Features and benefits:
- Available in Corten & Powder coated steel
- Can be powder-coated to any RAL colour.
- Easy to handle and install on site.
- Suited to a wide range of designs.
- Raaft Timber Benches can easily be incorporated into the planter systems.
- Works very well with the Raaft terrace system, using the Floor structure panels as a base.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidancePowder-coated to any RAL colour. |
Finish | Powder-coated Natural Metallic |
Material | Steel Guidance for specification option: Galvanized. Cor-Ten |
Shape | Rectangle Other Guidance for specification option: Curved. Trapezoid Rhombus Square |
Length | 2400 mm 100000 mm Bespoke |
Width | 400 mm 2400 mm 100000 mm Bespoke |
Height | 300 mm 400 mm 500 mm 600 mm 700 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q31/292 Prefabricated plant containers |
Specification data - Steel plant containers
Material | Steel.Stainless steel.Corten A. |
Finish | Galvanized.Guidance for specification option: Steel only. Galvanized and powder-coated.Natural.Guidance for specification option: Corten and stainless steel. |
Shape | Curved - 4/ 6 mm steel.Other - 4/ 6 mm steel.Guidance for specification option: Other shapes also available; consult manufacturer. Manufacturer guidanceAll galvanized planters are 6 mm thick. |
Dimensions | Manufacturer guidanceMaximum straight panel length: 2980 mm. Maximum curved panel length: 2980 mm. Height range 300–1500 mm. Insert requirements or refer to a drawing. |
Drainage holes | None (no base).Perforated tray. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Galvanized. Cor-Ten |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % |
