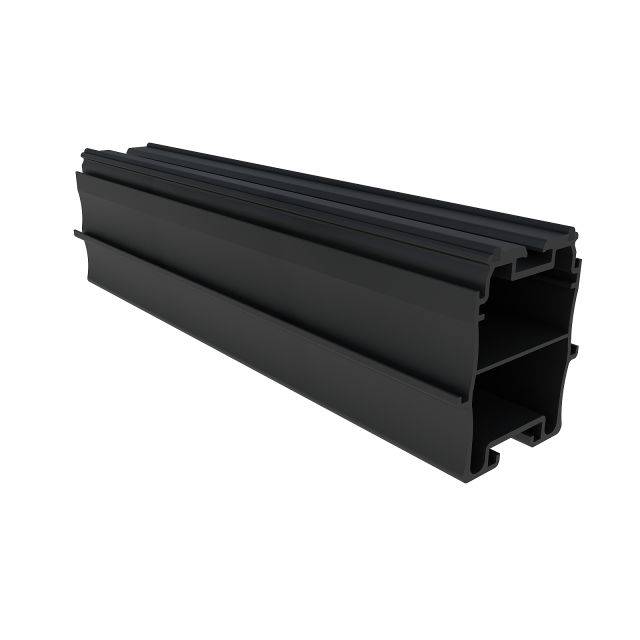

Raaft Aluminium Support Joists
Description

Aluminium support structure joists, available in three heights.

General information
Finish

Black powder coat finish

Material

6063A T6 aluminium

Uniclass 2015
Pr_20_76_51_07 Aluminium structural sectionsPrimary
CAWS

Q55/110 Deck

Q55/120 Boardwalk

Q55/130 Footbridge

Specification data - Aluminium structural sections
Product Reference

Raaft Aluminium Support Joists

Type

301013

30 mm joist.

301010

50 mm joist.

301011

80 mm joist.

Finish

Black powder coat finish

Accessories

None

Angle connector

90° connector clip to plug

Straight joist connector plug

80 mm end cap

50 mm end cap

3 mm tile spacer

Support wing 48 mm

For 50 and 80 mm joists only.

Support wing 28 mm

For 30 mm joist only.

Standard product features

Material:

6063A T6 aluminium.

Product Options

Type:

- Size (h x l x w):

  • 301013: 30 x 2400 x 69 mm.
  • 301010: 50 x 2400 x 69 mm.
  • 301011: 80 x 2400 x 69 mm.
