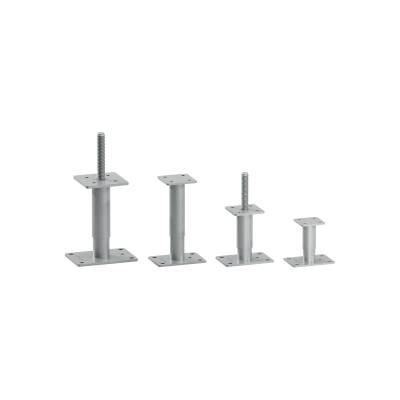

R20 - Adjustable post base
Verified by manufacturer 20 hours ago
Height-adjustable carbon steel post base finished with DAC COAt for long-term outdoor durability complete with concealed fastening system and dual-plate design ensuring structural performance
Application

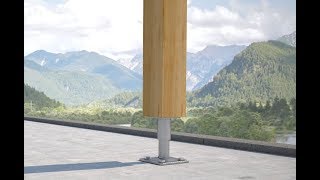

Designed for lightweight external structures, the R20 provides stable, adjustable support for timber columns in pergolas, canopies, decks and similar outdoor builds.
Description
Height-adjustable carbon steel post base finished with DAC COAt for long-term outdoor durability complete with concealed fastening system and dual-plate design ensuring structural performance and refined appearance
Features and benefits:
- Outdistanced from the ground to avoid water splash and stagnation and guarantee high durability.
- Concealed fastening on the timber element.
- DAC COAT coating ensures high aesthetic performance and durability in outdoor contexts.
- Rectangular base plate allows for simplified installation of anchors and positioning of the column even close to the edges of the concrete.
- High compressive and tensile strengths through the use of VGS all-thread screws or through-rod.
General information
Color | Silver |
Finish | Other |
Material | Steel |
Shape | Other |
Length | 140 mm 160 mm 200 mm |
Width | 80 mm 100 mm 140 mm |
Height | 150 mm 200 mm 300 mm |
Uniclass |
SKU Code | R2080M, R20100L, R20140XL |
Sustainability data
Material | Steel |
Literature
R20 - Technical Data Sheet
