This product is no longer available

Description

Semi-rigid, impact resistant sound absorption panel.

Features and benefits:

  • Premium acoustic performance, absorbing a minimum 85% of noise.
  • Durable, providing long-term stability and performance.
  • Design flexibility, created with solid colour throughout.
  • Various branding and design possibilities with custom cutting.
  • Lightweight and easy to handle.
  • Made from 100% polyester fibre without chemical binders and certified low VOC.
  • Manufactured using a minimum of 45% post-consumer recycled material.
  • Safe, non-toxic, non-irritant and non-allergenic and contains no Red List chemicals.
  • Manufactured under ISO 9001 and ISO 14001 certified Quality and Environmental Systems.

Applications:

  • Framed modular office partition panelling.

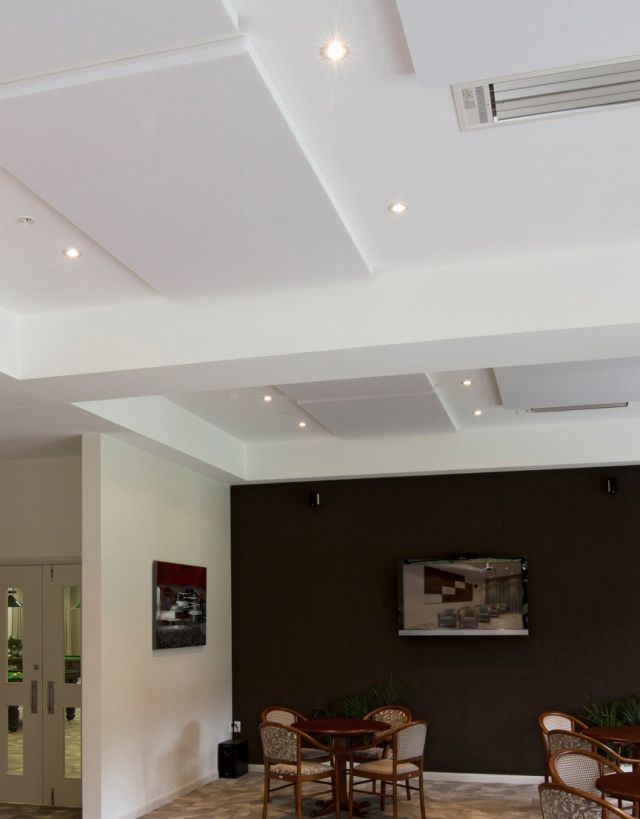

  • Suspended or direct fixed feature in ceilings.
  • Education, Healthcare, Retail and commercial interiors.

General information
Features

High acoustic performance, allows design flexibility, designed to fit standard ceiling grids, manufactured from 100% polyester fibre without chemical binders and certified low VOC, lightweight, highly durable and naturally resistant to moisture

Material

Polyester fibre (PET)

Shape

Rectangular

Size

2410 x 1205 x 25 mm

2410 x 1205 x 100 mm

2410 x 1205 x 75 mm

2410 x 1205 x 50 mm

Uniclass 2015
Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Specification data - Sound attenuator infill units
Product Reference

Panel

Colour

Black

White

Thickness

25 mm

50 mm

75 mm

100 mm

Accessories

Not required

Vertiface

Decorative acoustic wall covering.

ProductInformation

www.autexacoustics.co.uk/assets/Uploads/documents/IA-NZ-DS-QS-PANEL-web.pdf

Standard product features

Composition:

100% polyester fibre (PET).

Size:

2410 x 1205 mm.

Weight:

  • 25 mm: 2400 g/m².
  • 50 mm: 3900 g/m².
  • 75 mm: 5260 g/m².
  • 100 mm: 5560 g/m².

Acoustic performance:

-NRC:

  • 25 mm: 0.85.
  • 50 mm: 1.00.
  • 75 mm: 1.05.
  • 100 mm: 1.05.

Thermal performance:

-R value:

  • 25 mm: 0.64.
  • 50 mm: 1.48.
  • 75 mm: 2.12.
  • 100 mm: 2.96.

Fire rating (EN 13501-1):

B - s2, d0.

Impact resistance (EN 13964):

1A.

Product Options

Colour/ Finish:

Bespoke images and designs available, consult manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
