Quietspace® Ceiling Tile
Application

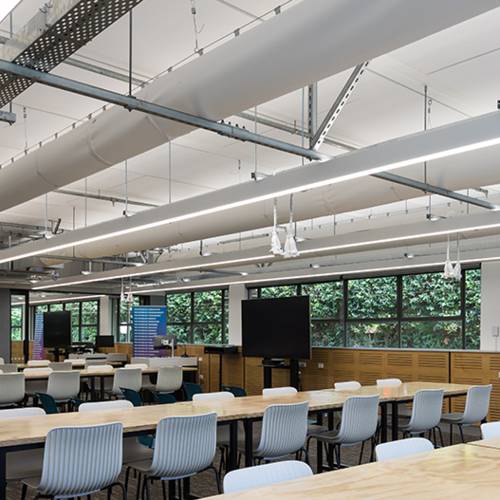

Offices and call centres, hospitals and healthcare facilities, boardrooms and conference rooms, school classrooms, halls and auditoriums, libraries and administration buildings, retail stores and showrooms.

Description

Designed to fit into standard grid systems and available in a rebated or square edge; Quietspace® Ceiling Tiles are a lightweight, easy and safe solution for suspended ceiling systems.


Quietspace® Ceiling Tiles are extremely durable and will not chip, crack or break, resulting in no wastage whilst installing. Because Quietspace® Ceiling Tiles do not contain chemical binders or crystalline silica they are non-toxic, non-irritant and non-allergenic.


Features and benefits:

  • Chip and crack resistant.
  • Designed to fit standard ceiling grids.
  • Naturally resistant to moisture, light-weight and easy to handle and install.
  • Spun-bond cover protects tiles during installation.

General information

Finish

Smooth

Color

White

Material

Polyester fibre (PET)

Shape

Square

Rectangular

Size

595 x 595 x 25 mm.

595 x 1195 x 25 mm

Uniclass 2015

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Specification data - Sound attenuator infill units Enhanced data

Form

Infill unit.

Rigidity

Rigid.

Application

Ceiling mounting.

Material

Polyester fibre (PET).

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class B to BS EN ISO 11654.

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s2,d0.

VOC emissions

0.01 mg/m³.

Dimensions

-

Size (length x width)

595 x 595 mm.

595 x 1195 mm.

Thickness (overall)

25 mm.

Profile

Geometric profile.

Edges

Square.

Surface pattern

Solid.

Colour

White.

Product Reference

Quietspace® Ceiling Tile

Environmental information

Recycled content

60

Digital objects
Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
