NBS Source
Quietspace® Accent Ceiling Tile

Application

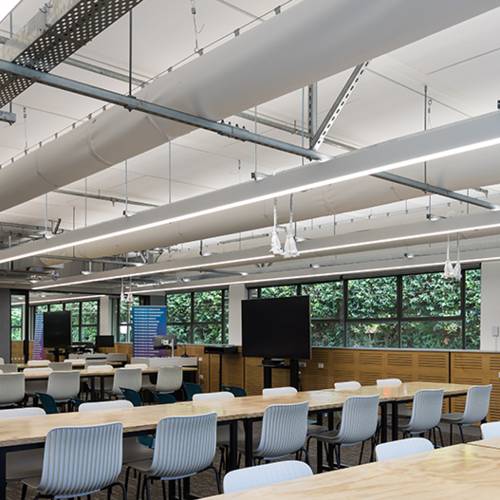

Offices, call centres and schools, boardrooms and conference rooms, halls and auditoriums, libraries and administration buildings, retail stores and showrooms.

Description

Unparalleled simplicity The Accent Ceiling Tile is a simple, unassuming, high-performance acoustic tile designed to fit within standard grid systems, and comply with typical loading standards. Made from non-woven, needle punched 100% polyester fibre, the tiles are lightweight yet sturdy, so they will not chip, crack, or break. Each Accent Ceiling Tile is double sided, with one smooth white face, and one colourful face; simply mix and match colours and textures.


Features and benefits:

  • Reversible finish, chip and crack resistant.
  • Designed to fit standard ceiling grids.
  • Naturally resistant to moisture.
  • Light-weight and easy to handle and install.
  • Spun-bond cover protects tiles during installation.

General information

Shape

Rectangle

Color

Range of colours available.

-

Finish

Smooth

Material

Polyester fibre

Size

595 x 1195 x 13 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/105 Suspended ceiling system

K40/265 Infill units

K45/120 Existing suspended ceiling system

K45/130 Unit-suspended ceiling system alterations

K45/160 Board-suspended ceiling system alterations

Specification data - Sound attenuator infill units Enhanced data

Form

Infill unit.

Rigidity

Rigid.

Application

Ceiling mounting.

Material

Polyester fibre (PET).

Material density

275 kg/m³.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class B to BS EN ISO 11654.

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s2,d2.

VOC emissions

0.01 mg/m³.

Dimensions

-

Size (length x width)

595 x 1195 mm.

Thickness (overall)

13 mm.

Profile

Geometric profile.

Edges

Square.

Surface pattern

Solid.

Colour

Acros.

Bosco.

Empire.

Falling water.

Flatiron.

Ironbank.

Opera.

Petronas.

Pinnacle.

Savoye.

Senado.

Zenith.

Environmental information

Recycled content

60 %

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
