Quartz Classic Smart concealed adjustable - HP

Quartz Classic Smart concealed adjustable - HP

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Aqualisa Products Ltd

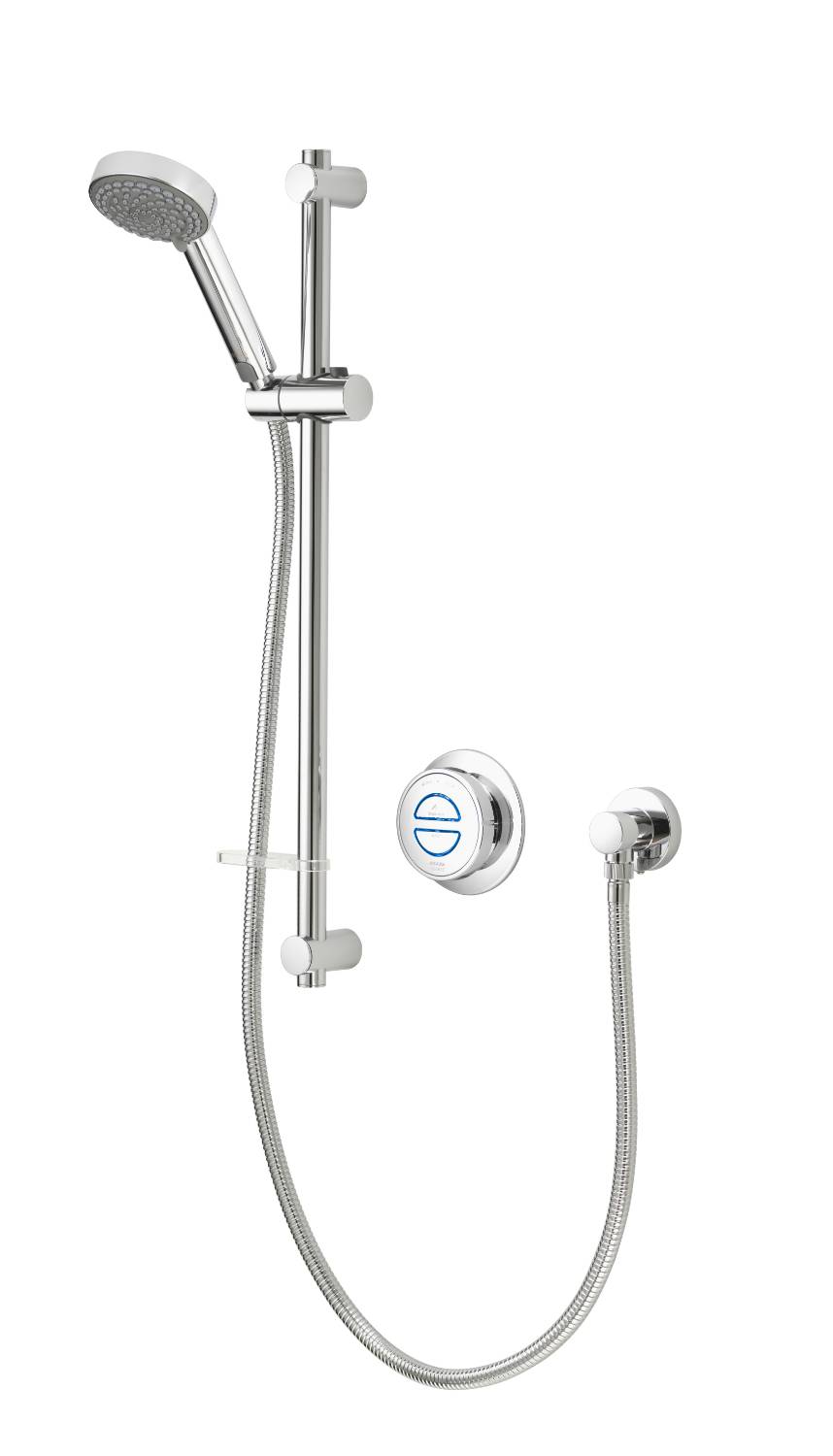

Built-in single outlet smart shower with wall outlet for adjustable handset.

Jump to:
+44 (0)1959 560000 www.aqualisa.co.uk
Description

Chrome adjustable showerhead up to maximum centres of 657 mm.

Features and benefits:

  • One touch start/ stop control.
  • LED display indicates when pre-selected temperature has been reached.
  • Boost button for enhanced flow.
  • Wi-Fi and app compatible – control the product with a smart phone or smart home device e.g. Alexa or Google home.
  • App functions include start/ stop, shower timer, user dashboard, usage tracker and help/ support.
  • Aqualisa SmartValve™.
  • Compatible with wired remote control.
  • 105 mm, four spray patterns (adjustable head) including eco-spray option.
  • CE marked.
  • Five-year guarantee.

General information

Finish

Chrome

Size

42 x 97 x 120 mm

Color

Chrome

Features

One touch stop, start control, LED display, compatible with wired remote, WiFi and app compatible, boost button for extra flow

Material

Metal, plastic, chrome plated

Shape

Circular

WarrantyDescription

5-year guarantee – shower unit, 2-year guarantee – shower head and kit

Uniclass 2015

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower fittings package

Product Reference

Quartz Classic™ Smart Concealed Adjustable - HP

QZD.A1.BV.20.

Standard product features

Size:

  • Overall (h x w): 700 x 320 mm (maximum).
  • Showerhead diameter: 105 mm.
  • Controller: 42 x 120 mm.
  • Aqualisa SmartValve™: 72 x 165 mm.

Colour:

Chrome.

Technical characteristics:

  • Pressure: 1 bar (minimum), 7 bar (maximum).
  • Aqualisa SmartValve™ inlet and outlet fitting connections: 15 mm push fit.
  • Valve inlet centres: 48 mm.
  • Inlet supply positions: Hot right, cold left.
  • Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath.
  • Supply temperature: Cold inlet temperature 1˚C (minimum) and 15˚C (maximum). Hot inlet temperature 65˚C (maximum).
  • Water system: HP, combi and boosted gravity.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
Third party certifications
  • BEAB Approval Mark
