Description

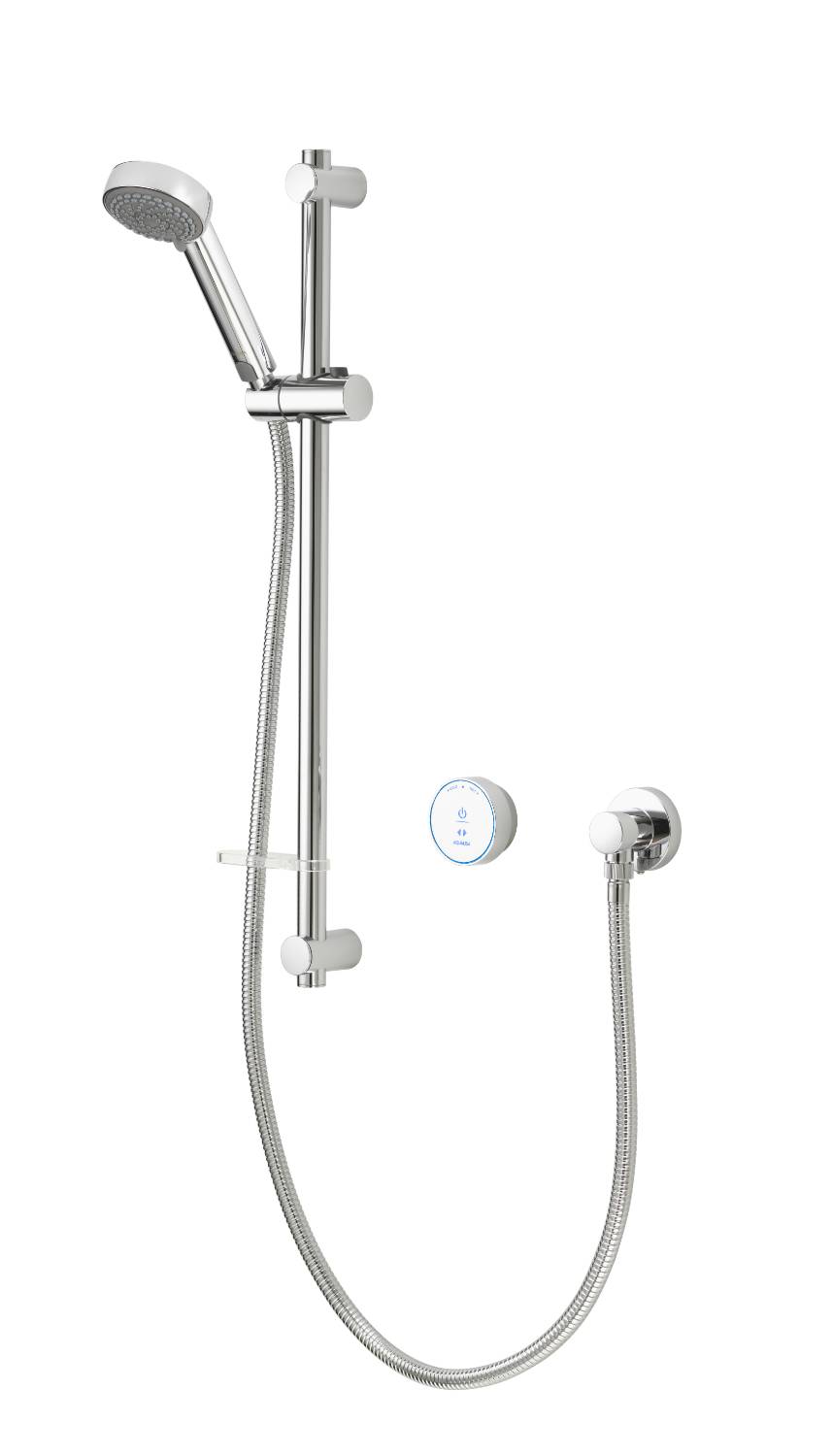

Chrome adjustable showerhead up to maximum centres of 657 mm. It must be sited no higher than the base level of the cold water cistern.

Features and benefits:

  • One touch start/ stop control.
  • LED display indicates when pre-selected temperature has been reached.
  • Wi-Fi and app compatible – control with a smart phone or smart home device e.g. Alexa or Google home.
  • App functions include start/ stop, shower timer, user dashboard, usage tracker and help and support.
  • Aqualisa SmartValve™.
  • 90 mm, four spray patterns (adjustable head) including eco-spray option.
  • CE marked.
  • Five-year guarantee.

General information
Finish

Chrome

Size

36 x 72 mm

Color

Chrome

Features

One touch stop, start control, LED display, WiFi and app compatible

Material

Metal, plastic, chrome plated

Shape

Circular

WarrantyDescription

5-year guarantee – shower unit, 2-year guarantee – shower head and kit

Uniclass 2015
Shower fittings package (Pr_40_20_87_75)Primary
Specification data - Shower fittings package
Product Reference

Quartz Blue™ Smart Concealed Adjustable GP

QZSB.A2.BV.20.

Standard product features

Size:

  • Overall (h x w): 700 x 315 mm (maximum).
  • Showerhead diameter: 90 mm.
  • Controller: 36 x 72 mm.
  • Aqualisa SmartValve™: 91 x 165 x 445 mm.

Colour:

Chrome.

Technical characteristics:

  • Pressure: 0.1 bar (minimum), 1 bar (maximum).
  • Aqualisa SmartValve™ inlet and outlet fitting connections: 15 mm push fit.
  • Valve inlet centres: 48 mm.
  • Inlet supply positions: Hot right, cold left.
  • Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath.
  • Supply temperature: Cold inlet temperature 1˚C (minimum) and 15˚C (maximum). Hot inlet temperature 65˚C (maximum).
  • Water system: Gravity.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
Third party certifications
  • BEAB Approval Mark
