Application


  • Use in the most common wall types with sealing in accordance with DIN 18533 W2.1-E or for core bore in waterproof concrete.
  • For sealing sewer pipes DN 110.
  • With seal flange in accordance with DIN 18533.
  • Suitable for new connections in existing buildings.

Description

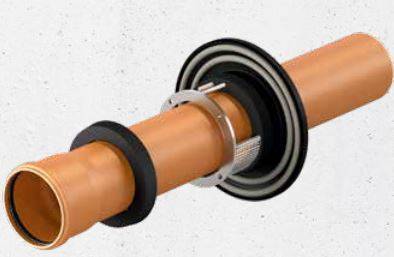

Through wall sealing system.


Features and benefits:

  • With Easy Fix system for easy
  • With ITL system for optimal contact pressure.
  • Installation without special tools
  • Suitable for sealing existing bitumen thick coatings.
  • Can even be used with conventional hollow bricks without filling.
  • Quick installation.
  • Suitable for building renovations.
  • Gas and water tight. Pressing water up to 1 bar.
  • Radon-tight – according to FHRK information sheet MB101 meets the requirements for radon precautionary areas.
  • For open design.
  • For bores in the most common wall types with sealing in accordance with DIN 18533 W2.1-E and for core bores in waterproof concrete.
  • 25 year guaranty

General information

Color

Black

Shape

Circle

WarrantyDescription

25 year

Uniclass

Pr_65_52_61_64 Pipe sleeve sealsPrimary

CAWS

E40/320 Hydrophilic waterstops

D40/565 Proprietary waterstops

Specification data - Pipe sleeve seals

Size

149–153 mm core bore/ pipe sleeve diameter, 250 mm outer diameter of seal flange.

100 mm.

Outer diameter.

Suitable wall thickness

200 mm.

Accessories

None.

2K cartridge gun.

Literature

25 Year Guarantee

25 Year Guarantee

Quadro-Secura® Quick_O

Quadro-Secura® Quick_O

Quadro-Secura Quick O Installation Instructions

Quadro-Secura Quick O Installation Instructions
