Quadra 460 - Instant Filtered Boiling and Chilled Tap - Water Tap - Boiling/ Chilled Water System

Name: Quadra 460 - Instant Filtered Boiling and Chilled Tap - Water Tap - Boiling/ Chilled Water System
Brand: Billi UK
SKU: gSpmfT86K99GWTmt3htfJj

Verified by manufacturer 19 hours ago

Quadra 460 XL

Billi UK

Product certifications:

EPD
Certificate type
HACCP International Product Compliance Certification
Certificate type
BSI Kitemark
Certificate type
Watermark
Certificate type
WRAS
Certificate type

Water-cooled, instant filtered boiling, chilled, and sparkling water tap – available in multiple configurations for energy-efficient use in offices, commercial kitchens, Healthcare and homes

Jump to:

BOS

+44 (0) 20 7456 6789 Website

Application

Designed for versatile use across multiple sectors – including offices, healthcare, education, retail, hospitality (hotels, restaurants, bars, cafés), leisure and sports facilities, industrial settings, and public sector buildings. Ideal for high-demand environments requiring reliable, energy-efficient boiling and chilled filtered water solutions.

Description

Water-Cooled, High-Capacity Commercial instant filtered Boiling and Chilled Water Tap System

An advanced, water-cooled commercial drinking water solution designed to deliver instant filtered boiling and chilled water for high-demand environments. Ideal for offices, hospitality, healthcare, education, and public sector settings.

This energy-efficient system uses heat exchange technology to remove the need for cupboard ventilation, making it perfect for space-saving installations. With a high hourly output, it supports up to 60 users with ease.

Key Features & Benefits

Water-cooled technology for quiet, energy-efficient performance
Delivers up to 180 cups of boiling and 175 cups of chilled filtered water per hour
No cupboard ventilation required – easy to specify and install
Global GreenTag Certified – supporting sustainable building accreditations
Safe operation, ideal for commercial and public spaces
Safety lock – Boiling safety lock option for safe delivery of boiling drinking water.
Compact, space-saving design
Easy installation and maintenance
Refillable CO2 cylinder

Dispenser Variations

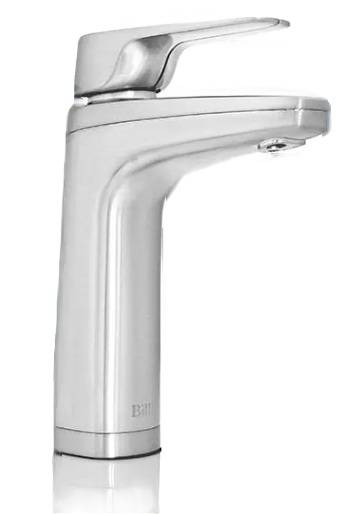

XL – Classic lever tap

• Standard operation with ergonomic design

XL with Red/Blue Levers – Equality Act Compliant

• Colour-contrasted for users with vision impairments

XR Remote – Accessibility First - DDA

• Wall-mounted remote control panel ideal for ambulant or wheelchair users

• Inclusive access solution

XT Touch – Modern Aesthetic

• Sleek, touch-activated dispenser for contemporary design environments

Perfect For

Offices • Commercial Kitchens • Healthcare Facilities • Schools & Universities • Hotels & Hospitality • Leisure & Sports Centres • Public Buildings • Industrial Workplaces

General information

Color	Silver White Black Grey Other
Finish	Brushed Chrome Matt PVD Powder-coated
Material	Zinc Steel Stainless steel
Shape	Other
Length	465 mm Guidance for specification option: Above-countertop (visible) dispenser only.
Width	315 mm
Height	340 mm Guidance for specification option: Above-countertop (visible) dispenser only; lever at maximum height.
Warranty description	Two year Guidance for specification option: The Billi Alpine Range is covered by a comprehensive two-year warranty on all parts and labour.

Uniclass	Pr_40_70_23_42 Instant boiling and cold water tapsPrimary
CAWS	N11/350 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes

SKU Code	904060LCHUK, 904060LMBUK, 904060LBRUK

Specification data - Instant boiling and cold water taps

Classification data
Third-party certification	QEC 11627; WRAS certified; Global GreenTag certified.
Water	Chilled and boiling.
Duty	-
Hot cups	Up to 180 per hour. Manufacturer guidance Based on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170 mL. Usage patterns and draw-off methods can impact recovery.
Cold cups	Up to 175 per hour.
Dimensions	Dispenser: 217 x 140 mm; outlet height: 137.5 mm. Guidance for specification option: Maximum height x overall depth (above counter). Hole size required: 35 mm. Inlet centre to outlet: 98 mm. Bench thickness: 1–48 mm. Manufacturer guidance See Integral accessories for under-bench unit.
Electrical connection	-
Power	13 A single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 m flex cord and plug.
Water inlet	An accessible drinking water supply from a 15 mm pipe with a minimum pressure of 2.5 bar static and 6 litres a minute flow should be located in the base unit of the installation location.
Safety features	Lever control.
Colour	Chrome (CH). Guidance for specification option: Standard finish. Brushed (BR). Guidance for specification option: Standard finish. Matte Black (MB). Guidance for specification option: Standard finish. Matte White (MW). Guidance for specification option: Special order. Rose Gold (RG). Guidance for specification option: Special order. Brushed Rose Gold (BRG). Guidance for specification option: Special order. Gun Metal Grey (GM). Guidance for specification option: Special order. Urban Brass (UB). Guidance for specification option: Special order.
Accessories	None. 120 mm riser and font (992803). Tubing extension kit for X series dual temp dispensers (990720). iX02 limescale filter (994032). Guidance for specification option: Replaces standard filter (see Integral accessories).
Integral accessories	Quadra under-bench unit with 800 mm tube. Premium filter. Guidance for specification option: Under-bench unit: 340 x 315 x 465 mm (height x width x depth). 350 mm minimum clearance required below bench. Filter: Billi's range of premium filters utilize BWT's exclusive Fibron X technology which provide superior taste, water quality, consistent filter life and peace of mind on the topic of hygiene. Supplied: 994051 (5 micron). Limescale filter alternative available, see Accessories.
Waste	A 32 mm/ 40 mm mains waste pipe is required within the base unit. This pipe should include a trap or U-bend to prevent any unpleasant odours. If there is a spigot waste connection, two spigots are required to connect to the waste and condenser line.
Compliance	BREAMM compliant; LEED compliant.

Sustainability data

Contains Red List materials	No
Country of material origin	Australia
Country of product manufacture	Australia
Manufacturing plant location	21-35 Radford Rd, Reservoir VIC 3073, Australia
Material	Zinc Steel Stainless steel
Expected Life	Seven year
