Quad+ - Modular Office Booth
Verified by manufacturer 3 months ago
Four person modular office booth, with a w:2300mm x d:1785mm (7.55’ x 5.86’) footprint, power and data ports, lighting and 30+ decibel sound reduction.
Application
Suitable for internal workspace applications for four occupants.
Furniture Configurations:
Quad+ Meet
Designed for small teams that think big. The Quad+ Meet includes two benches and a large central table, seating four comfortably while keeping the room compact and soundproof.
Quad+ Focus
A spacious single office for serious work. The Quad+ Focus comes with a full desk and ergonomic chair, giving you space to spread out, plan, and focus without interruptions.
Quad+ Collab
Made for collaborative thinking and creative sessions. The Quad+ Collab features a corner sofa and a side table, perfect for workshops, design reviews, or solving the most
complex problems.
Description
Meet, collaborate and focus - together; This is our most versatile booth with a generous footprint. Built for small groups or for use as a spacious private office, it adapts to fit the way you work.
Features and benefits:
- Outlets: x1 DGPO, x1 USB-C, and x1 USB-A above table height (on wall) Additional (Meet Configuration) x1 DGPO, x1 USB-C, x1 USB-A (on table)
- Power access on left side
- Power consumption: 100W
- Motion sensor controls lights and air flow automatically
- Color temperature: 3000K-6000K (adjustable)
- Wheelchair accessible option compliant with UK regulations available
General information
Color | White Black Grey Other |
Finish | Coated |
Material | Aluminium Glass Polyester fibre (PET) |
Shape | Rectangle |
Length | 1785 mm Manufacturer guidanceDepth. |
Width | 2300 mm |
Height | 2340 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N10/10 Purpose-made N10/110 Purpose-made |
Specification data - Office booths or pods
Classification data | |
Type | |
Enclosure type | Fully enclosed. |
Flexibility | Relocatable. |
Product reference | Quad+ Soundproof Modular Meeting Office. |
Certification scheme | FSC/ PEFC, BIFMA Level 2. |
Configuration | |
Framework | Aluminium. |
Shape | Rectangular. |
Size/ dimensions | |
Height | 2300 mm. |
Length | 1586 mm. |
Width | 2200 mm. |
Occupancy (number of people) | Four. |
Doors | |
Material | Tempered safety glass door. |
Type | Hinged. |
Size | 795 mm width. |
Construction | |
Roof | Carbon polymer panel. |
Ceiling | Carbon polymer panel. |
Floor | Carbon polymer panel. |
Front wall (with entrance door) | Tempered safety glass. |
Left wall | Carbon polymer panel. |
Rear wall | Tempered safety glass. |
Right wall | Carbon polymer panel. |
Services | |
Power | Internal: 1 No. GPO, 2 No. USB-A, 1 No. USB-C (above desk); 1 No. Ethernet port, 2 No. GPO, 4 No. USB-A, 2 No. USB-C (below desk). External: Power inlet. Guidance for specification option: The external power inlet is located on back left-hand side. Includes a standard 1.8 m long cable. |
Lighting | 2 No. LED strips (non dimmable), 1 No. 18 W square LED (dimmable). Guidance for specification option:
|
Automatic water fire suppression system | |
Type | Manufacturer guidanceFire sprinkler hole provided. |
Ventilation | |
Method | Integrated air circulation fans. Guidance for specification option: Three silent, built-in adjustable fans, motion sensor operated. |
Ventilation rate | 459 m³/h. |
Finishes/ colour | |
Roof | Electrostatic coated/ architectural surface film, cloud white. Electrostatic coated/ architectural surface film, domino black. Electrostatic coated/ architectural surface film, custom colour. Guidance for specification option: Consult manufacturer and insert requirements. |
Ceiling | PET acoustic panels, dark grey GP-04. PET acoustic panels, custom colour. Guidance for specification option: Consult manufacturer and insert requirements. |
Floor | Carpet, dark grey FP1-1. |
Wall | |
Left wall | PET acoustic panels, dark grey GP-04. PET acoustic panels, custom colour. Guidance for specification option: Consult manufacturer and insert requirements. |
Right wall | PET acoustic panels, dark grey GP-04. PET acoustic panels, custom colour. Guidance for specification option: Consult manufacturer and insert requirements. |
Furnishings | |
Seats and backs | Two upholstered stools. |
Tables and desks | HPL meeting table. |
Sound reduction | To ASTM E596, 30 dB. |
Sustainability data
Material | Aluminium Glass Polyester fibre (PET) |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

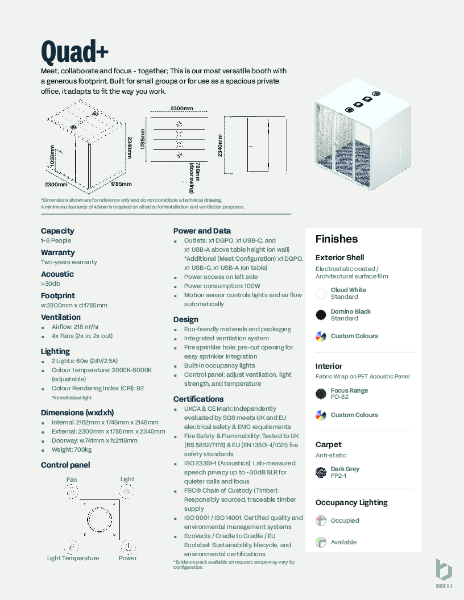

Bureau_Quad+ Spec Sheet_UK
