Application

Suitable for use in domestic bathrooms.

Description

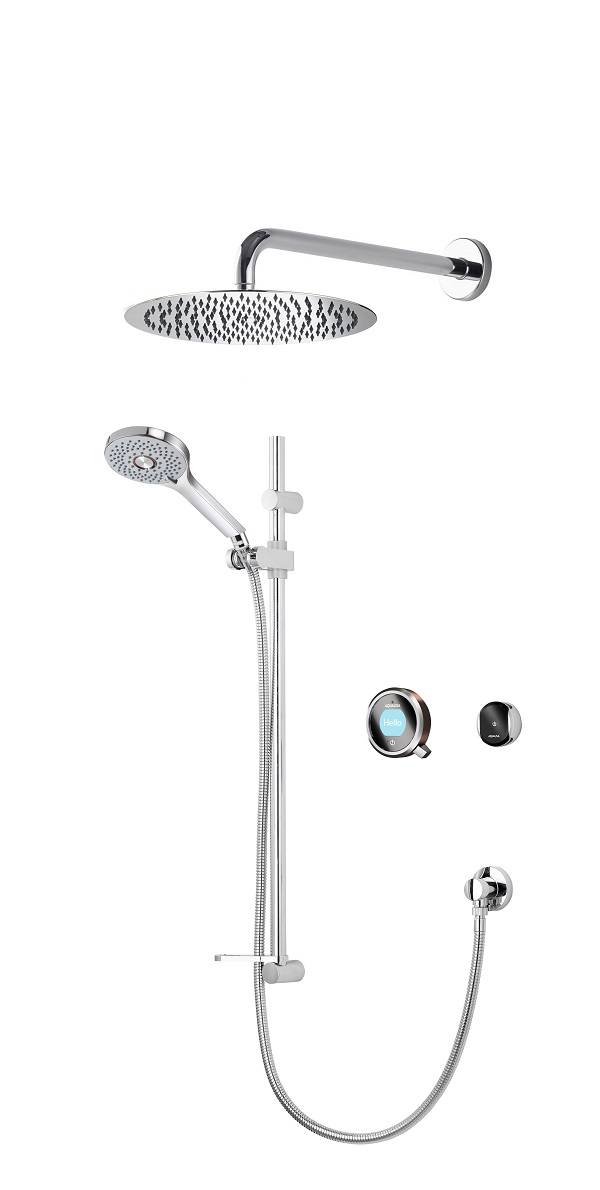

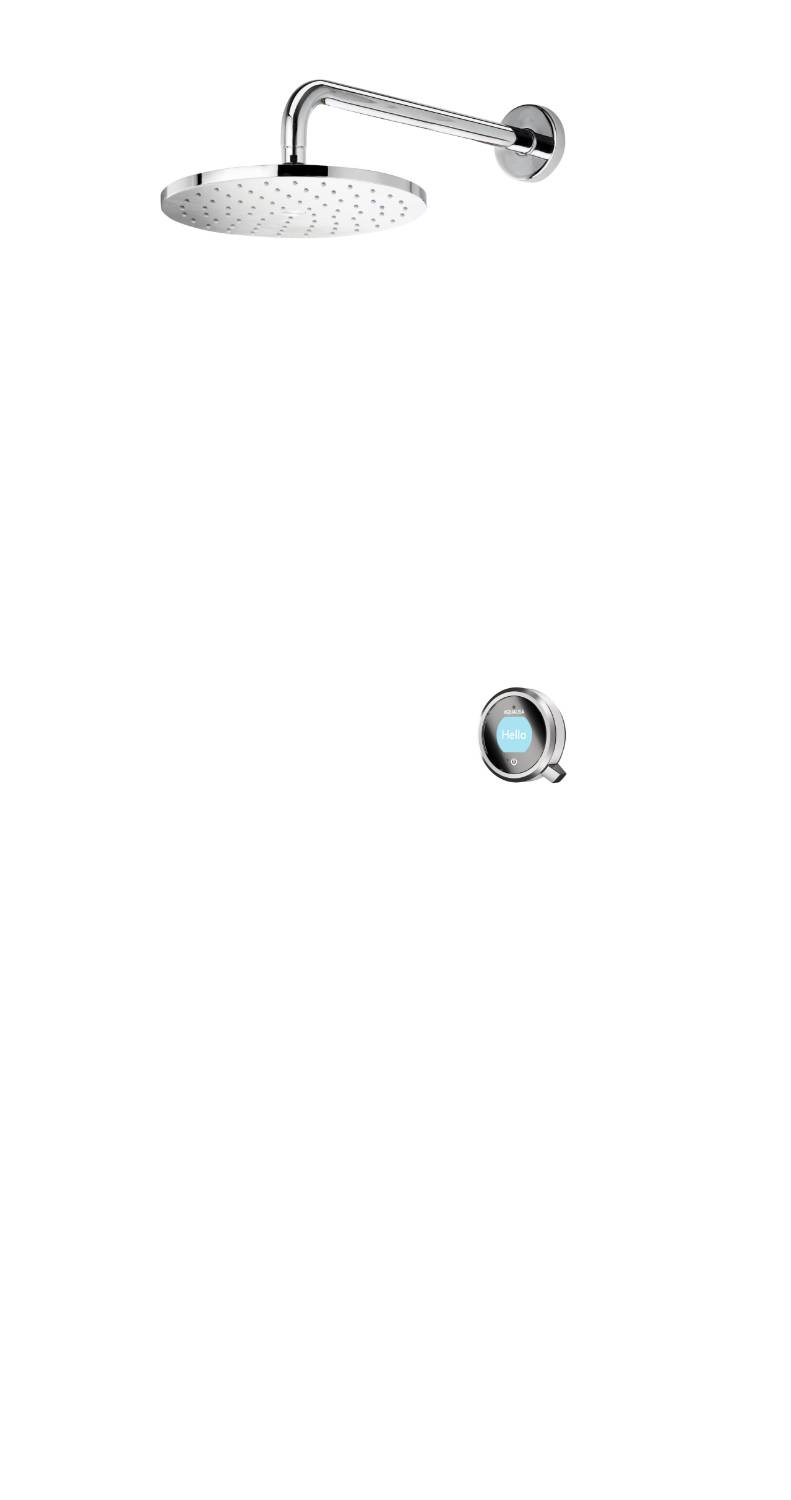

Smart shower with single or dual outlets, available with adjustable head, drencher, hand shower heads and bath fills.

Features and benefits:

  • Unique proximity sensor that reduces water flow when stepping away from the shower.
  • Includes a large rotary temperature ring.
  • Touch on/ off switch.
  • Single control lever.
  • Wireless remote control available.
  • Pre-set and personalized shower experiences - consult manufacturer for further details.
  • Available in a choice a choice of five metallic accents to suit project requirements.
  • 130 mm shower head with three spray patterns.
  • Thin film transistor (TFT) colour display screen with high definition.
  • Suitable for high pressure (HP), combination boiler and gravity pumped water systems.
  • Five-year guarantee.
  • .Matching shower/ bath filler models available (specified separately).

Applications:

Suitable for use in domestic bathrooms.

General information
Finish

Glass front plus colour accent

Color

Chome, silver, white, grey, blue, orange

Features

On off touch switch, proximity sensor, temperature bezel, q level, colour display, colour accent

Material

Chrome plated

Shape

Circular

WarrantyDescription

5 year warranty

Uniclass 2015 Shower fittings package (Pr_40_20_87_75)
Specification data
Product Reference

Q™ Edition Smart Shower

Mixer valve

Q™ Edition Smart Shower - QDC.01.GP

Single outlet, for gravity pumped water systems.

Q™ Edition Smart Shower - QDC.01.HP

Single outlet, for HP/ combi water systems.

Q™ Edition Smart Shower - QDC.02.GP

Dual outlet, for gravity pumped water systems.

Q™ Edition Smart Shower - QDC.02.HP

Dual outlet, for HP/ combi water systems.

Q™ Edition bezel and handset colour

Black chrome - QDD.AA.03

Bright chrome - QDD.AA.01

Nickel - QDD.AA.04

Pewter - QDD.AA.05

Rose gold - QDD.AA.02

Rail

Not required

550 mm shower rail system - OPN6001

900 mm shower rail system - OPN6002

900 mm shower rail system with adjustable fixings - OPN6002

Accessories

None

Wireless remote control

Standard product features

Finish:

Chrome.

Valve:

  • Processor inlet/ outlet fitting connections: 15 mm push fit fittings.
  • Inlet centres: 48 mm.
  • Suitable processor locations: Loft, airing cupboard or under bath.
  • Inlet supply positions: Hot/ right, cold/ left.
  • Blended water supply connection: Wall outlet: 15 mm; fixed head arm: 15 mm.

Pressure requirements:

Up to 7 bar (dependent on water system).

Supply temperature:

  • Cold: 1–15°C.
  • Hot: 65°C (maximum).

Blended outlet temperature settings:

  • Factory mid set blend temperature: 45˚C.
  • Adjustable temperature setting: 35–55˚C.

Product Options

Design:

As well as being able to choose from individual package items, kits are also available, consult manufacturer's literature for information.

Accessories:

Others are available; consult manufacturer's literature for information.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
