Application

Can be used as a temporary storage tank or a soakaway for a wide range of applications, including:

  • Parks.
  • Domestic gardens.
  • Residential developments.
  • Car parks and roads.
  • Industrial and commercial areas.

Description

Geocelluar stormwater management system designed to combine ease of access and speed of installation.

Features and benefits:

  • Fast and easy to install units, with push-fit functionality.
  • Proven vertical loading capacity of 32.5 tonnes/m² and lateral loading capacity of 10.8 tonnes/m².

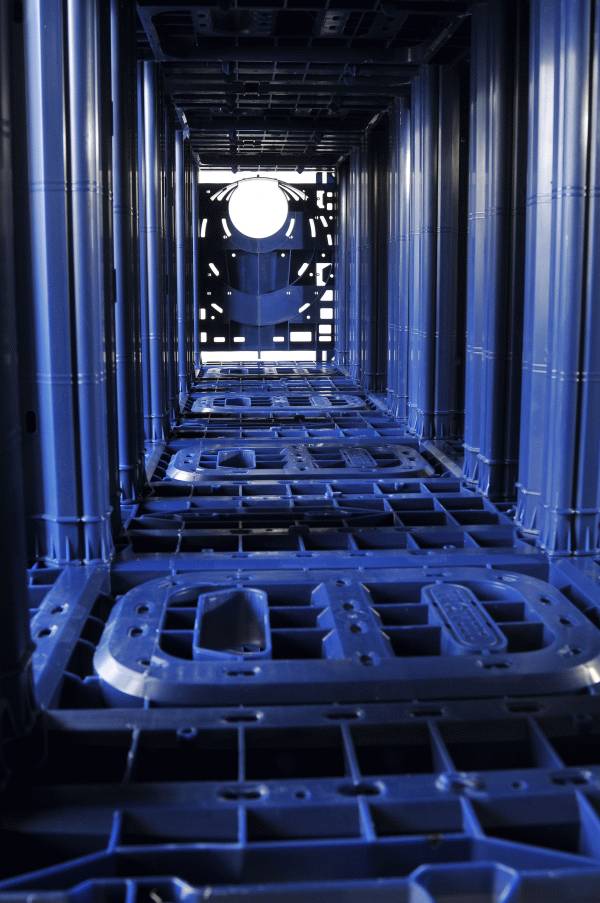

  • The open void structure provides access for inspection and maintenance.
  • Modular design allows configuration to suit the site conditions.
  • Lightweight and easy to carry with ergonomic hand grips and a walkable top deck.
  • Can be used as part of a SuDS scheme to help reduce flood risk.
  • BBA approved.

Applications:

Can be used as a temporary storage tank or a soakaway for a wide range of applications, including:

  • Parks.
  • Domestic gardens.
  • Residential developments.
  • Car parks and roads.
  • Industrial and commercial areas.

General information

Uniclass 2015

Pr_60_50_96_65 Polypropylene (PP) tanksPrimary

CAWS

R12/464 Modular stormwater attenuation units

R17/315 Modular plastics soakaway units

Specification data - Polypropylene (PP) tanks

Product Reference

Q-Bic Plus

Type

3059730

Infiltration unit, 1200 x 600 mm.

3059731

Solid bottom plate.

3059732

Perforated bottom plate.

3059733

Lateral side plate, 1200 x 600 mm.

3059735

Connection plate, 160 mm.

3059736

Connection plate, 315 mm.

4062303

Side flange adapter, 225 mm UltraRib.

4062304

Vertical flange adaptor 500mm TwinWall.

4062305

Vertical flange adaptor, 300 mm TwinWall.

4062356

Side flange adaptor, 300 mm TwinWall.

4062357

Side flange adaptor, 375 mm TwinWall.

4062358

Side flange adaptor, 300 mm UltraRib.
