Pyroguard Rapide Plus EI - Laminated Glass, Silicate Interlayers
Verified by manufacturer 27 days ago
EI30 INT, 15 mm
EI30 INT, 15 mm
Cuttable fire safety glass which provides integrity and heat insulation for 30 and 60 minutes - EI Classification.
Application
For use in glazing applications.
Description
A range of laminated glass products with silicate interlayers, providing integrity and complete thermal insulation for 30 and 60 minutes - EI Classification.
Features and benefits:
- Fire rated performances range from 30/30 to 60/60.
- Can be made into IGUs with the thicknesses dependent upon compositions.
- Light transmission ranges from 85% for EI30 products to 81% for EI60 products.
- Sound reduction ranges from 38 dB for both EI30 INT and EI30 EXT products, to 40 dB and 42 dB for EI60 INT and EI 60 EXT products respectively.
- Both Pyroguard EI30 and EI60 have respective internal and external products to suit specific applications.
- Fire performance classified to BS EN 13501-2.
- Impact resistance classified to BS EN 12600.
- Lightweight and cuttable.
General information
Color | Clear |
Finish | Glazed |
Material | Glass |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | H10/115 Patent glazing H11/110 Curtain walling L10/20 Steel windows L10/310 Steel windows L10/33 Proprietary windows L10/390 Proprietary windows L10/56 Glazed screen system L10/560 Glazed screen system L40/505 Fire-resistant tape/ Strip glazing L40/510 Fire-resistant channel glazing – solid section channel L40/515 Fire-resistant channel glazing – plastics/ elastomeric channel L40/65 Fire-resistant tape/ Strip glazing L40/75 Fire-resistant channel glazing – solid section channel |
Specification data - Laminated glass sheets
Third-party certification | CE certified, UKCA certified. |
Laminate glass type | Fire and safety. |
Thickness | 15 mm.Guidance for specification option: +3/-3 tolerance. |
Outer leaf | Laminated glass. |
Inner leaf | Laminated glass. |
Interlayer to glass leaves | Silicate. |
Body colour | Clear. |
Performance requirements | |
Fire resistance | |
Integrity | To BS EN 13501-2, E 30 minutes. |
Insulation | To BS EN 13501-2, EI30 minutes. |
Light | To EN 410, 85%. |
Impact resistance | To BS EN 12600, 181. |
AttackGuard | Required. Not required. |
Sound reduction | 38 dB (minimum). |
Sheet size | 3100 x 2125 mm. |
TemperatureRange | -40/+50°C. |
Weight | 38 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Literature

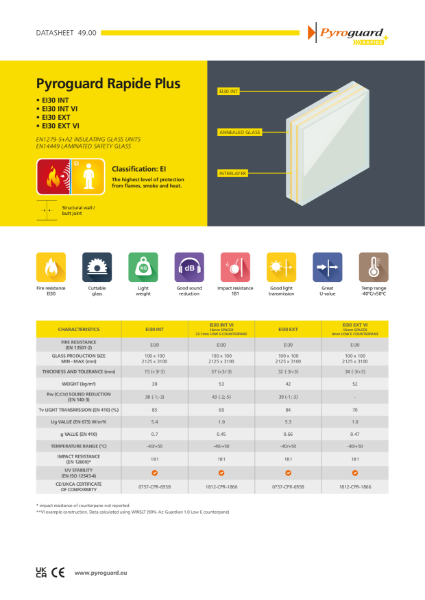

Pyroguard Rapide Plus EI30
Pyroguard Rapide Plus EI60
Case studies

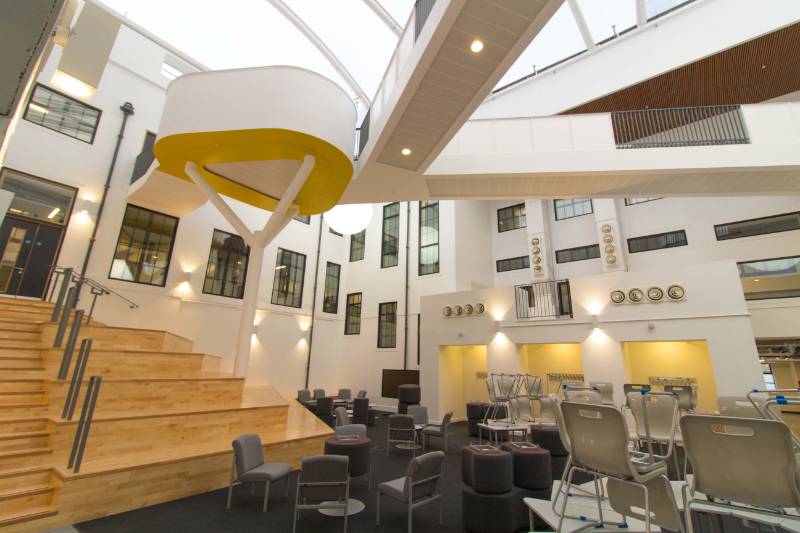

Marr College, Troon, Scotland - Pyroguard Firesafe, Rapide Plus & Protect
