Pyroguard Protect EW - Toughened Glass with Gel Interlayers
Verified by manufacturer 6 months ago
T-EW30/13-1, 13 mm
T-EW30/13-1, 13 mm
Certifire Certificate
Certificate type
EPD
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Range of toughened glass with gel filled interlayers, providing a fire rated performance of integrity, radiation reduction and partial thermal insulation.
Application
For use in glazing applications.
Description
Range of toughened glass with gel filled interlayers, providing a fire rated performance of integrity and partial thermal insulation. T-EW products are made to order as they cannot be cut from stock sheets.
Features and benefits:
- Fire rated performances range from 30/0 to 120/0.
- Thicknesses of 13-19 mm.
- Can be made into IGUs where the thicknesses are dependent upon compositions.
- Acoustic reduction ranges from 31–37 dB for the standard Pyroguard T-EW products. Acoustic performances for IGU are dependent upon composition.
- Light transmission ranges from 81–85% for the standard Pyroguard T-EW products. Light transmissions for IGU are dependent upon composition.
- Fire performance classified to BS EN 13501-2.
- Impact resistance classified to BS EN 12600.
General information
Color | Clear Manufacturer guidanceColour also available. |
Finish | Satin Painted Gloss Glazed |
Material | Glass |
Shape | Other Guidance for specification option: Made to order. Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/25 Wood panelled doors H10/115 Patent glazing L10/33 Proprietary windows L10/20 Steel windows L10/15 Wood windows L10/10 Wood windows L20/20 Wood flush doors L20/410 Wood doorsets L20/250 Wood panelled doors L20/480 Doorsets L10/560 Glazed screen system L10/510 Glazed wood screens L10/480 Roof windows L10/390 Proprietary windows L10/310 Steel windows L10/210 Wood windows L40/65 Fire-resistant tape/ Strip glazing L20/280 Doors L20/270 Wood doors L20/45 Doors L20/420 Wood doorsets L20/30 Wood doors H11/110 Curtain walling L20/230 Wood flush doors L20/55 Doorsets L40/505 Fire-resistant tape/ Strip glazing |
Specification data - Thermally toughened glass sheets
Thickness | 13 mm. |
Body colour | Clear. |
Performance requirements | |
Fire performance | To BS EN 13501-2, 120/0. |
Light | Transmittance (minimum) 0.81–0.85.Guidance for specification option:
|
Impact resistance | To BS EN 12600, 1B1. |
AttackGuard | Not required. Required. |
Sound reduction | To EN 140-3, 37 dB. |
Weight | 29.4 kg/m². |
Light transmission | To EN 410, 88%. |
TemperatureRange | -10/+45°C. |
Reaction to fire | To EN 13501-1, A2-s1,d0. |
Sheet size | 1800 x 3500 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe Manufacturer guidanceManufactured in UK and in France |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 35 kg CO₂ eq/m² Manufacturer guidanceValue is for T-EW/13-1 |
Third party certifications
Third party certifications
Literature

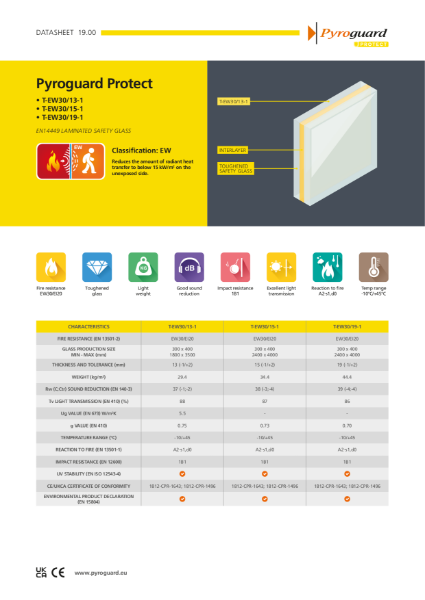

Pyroguard Protect T-EW30
Case studies
Coal Drops Yard, Kings Cross - Pyroguard Protect
Kiruna Hotel, Sweden - Pyroguard Protect (EW & EI)
Uppsala Stadhues, Sweden - Pyroguard Protect (EW & EI)
Central Public Works Department, New Delhi - Pyroguard Protect (EW & EI)
Hekla Tower, Paris - Pyroguard Protect (EW & EI)
Campus Lelystad, The Netherlands - Pyroguard Protect (EW & EI)
Emudhra, Bangalore - Pyroguard Protect (EW & EI)
