Pyroguard Balustrade - Toughened Laminated Safety Glass
Verified by manufacturer 6 months ago
T-EW/19-1
T-EW/19-1

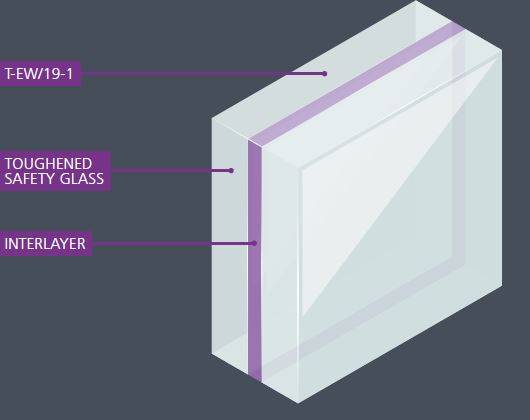

Toughened laminated safety glass.
Application

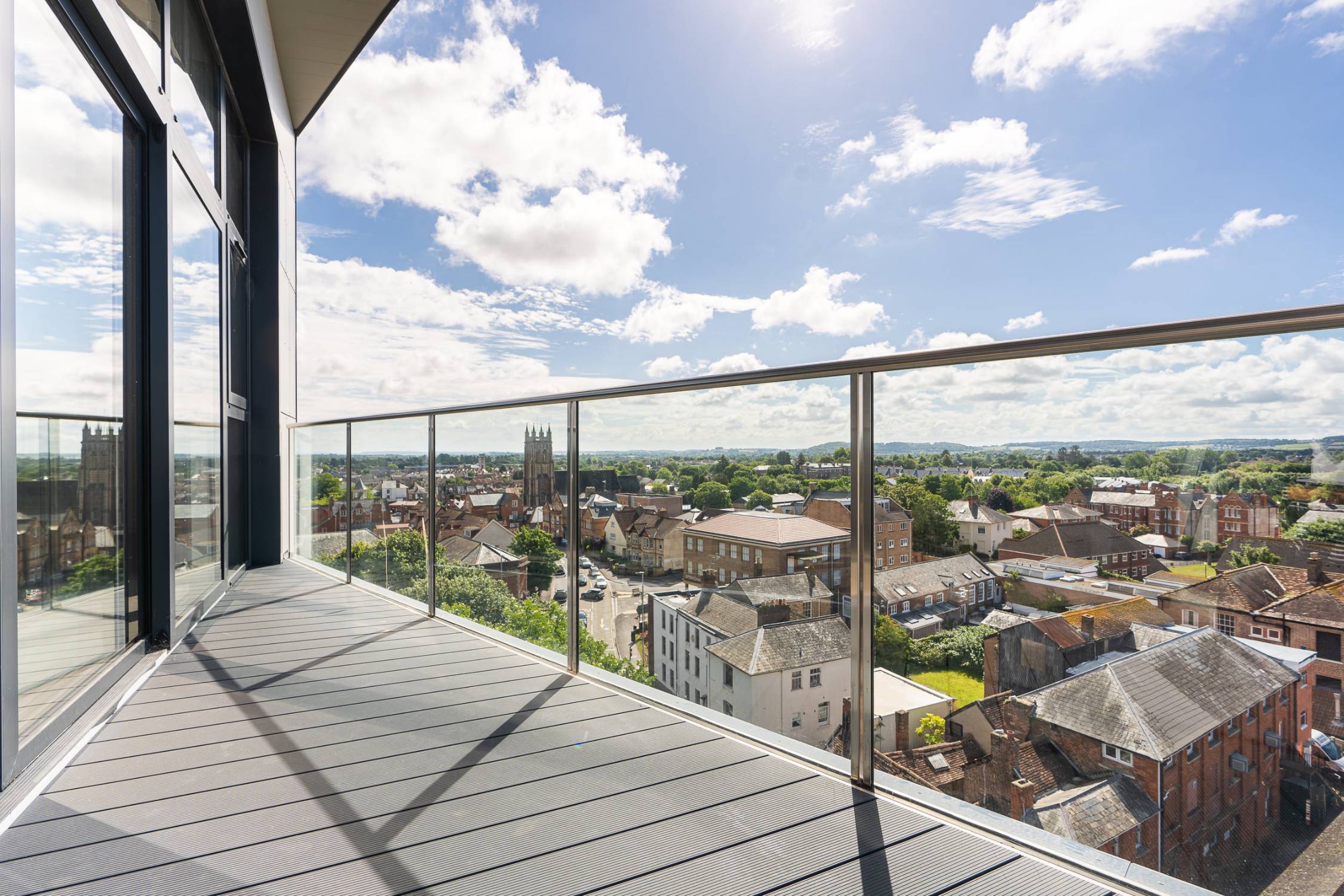

Suitable for use as part of a balustrade system.
Description
Toughened laminated safety glass. A2-s1,d0 reaction to fire rated. Lightweight with excellent light transmission, UV stable (EN ISO 12543-4), UK CA and CE marked.
Features and benefits:
- Toughened glass.
- Lightweight.
- Good light transmission.
Meets the requirements of:
- EN 12150-2 TOUGHENED SAFETY GLASS.
- EN 14449 LAMINATED SAFETY GLASS.
- BS 6180:2011 BARRIERS IN AND ABOUT BUILDINGS.
General information
Color | Clear |
Finish | Other Manufacturer guidanceStandard finish is glossy, other finishes are available |
Material | Glass |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L37/160 Balustrade systems |
Specification data - Thermally toughened glass sheets
Third-party certification | CE certified, UKCA certified. |
Thickness | 19 mm.Guidance for specification option: -1/+2 tolerance. |
Body colour | Clear. |
Performance requirements | |
Fire performance | EW120/EI20. |
Sound attenuation | Rw 39 dB.Guidance for specification option: T-EW/19-1 (19 mm thick). |
Impact resistance | To BS EN 12600, 1B1. |
Reaction to fire | To EN 13501-1, A2-s1, d0. |
Sheet size | 2400 x 4000 mm. |
Weight | 44.4 kg/m². |
Sound reduction | To EN 140-3, 39 dB. |
Light transmission | To EN 410, 86%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe Guidance for specification option: United Kingdom and France. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 51 kg CO₂ eq/m² Self declared Manufacturer guidanceValue for T-EW/19-1 |
Literature
Pyroguard Balustrades
Case studies

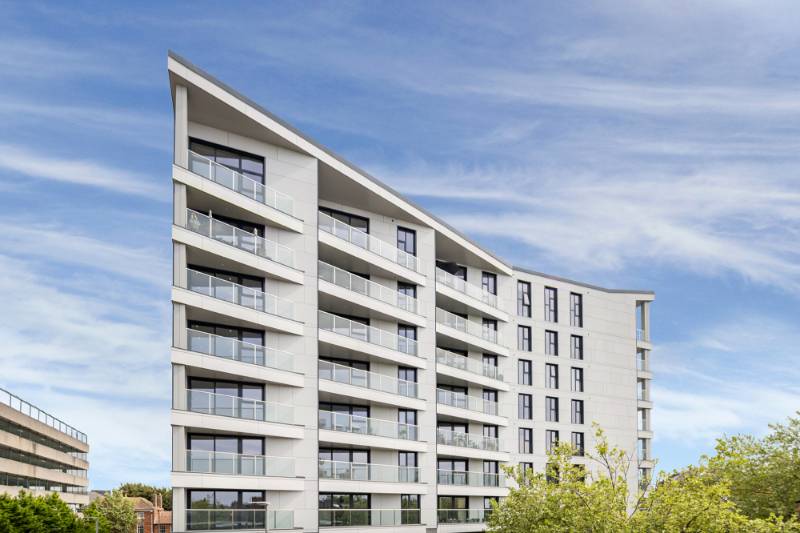

Quantock House, Taunton, Somerset - Pyroguard Balustrade
