PWF - Wood Finish Powder Coating

Verified by manufacturer 3 months ago

Powdertech (Corby) Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • EPD

    EPD

    Certificate type

  • Warringtonfire

    Warringtonfire

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Powdertech Wood Finish (PWF™) is formulated by Powdertech to match the natural variations in colour, grain density and grain pattern of wood. Wood Finish has been tested and approved to A2, s1-d0.

Jump to:
BOS
+44 (0)1536 400890 Website

Application

Suitable for application onto galvanized steel, mild steel and aluminium.

  • Material design: Flat, folded, circular, formed, welded or fabricated.
  • Internal and external locations.

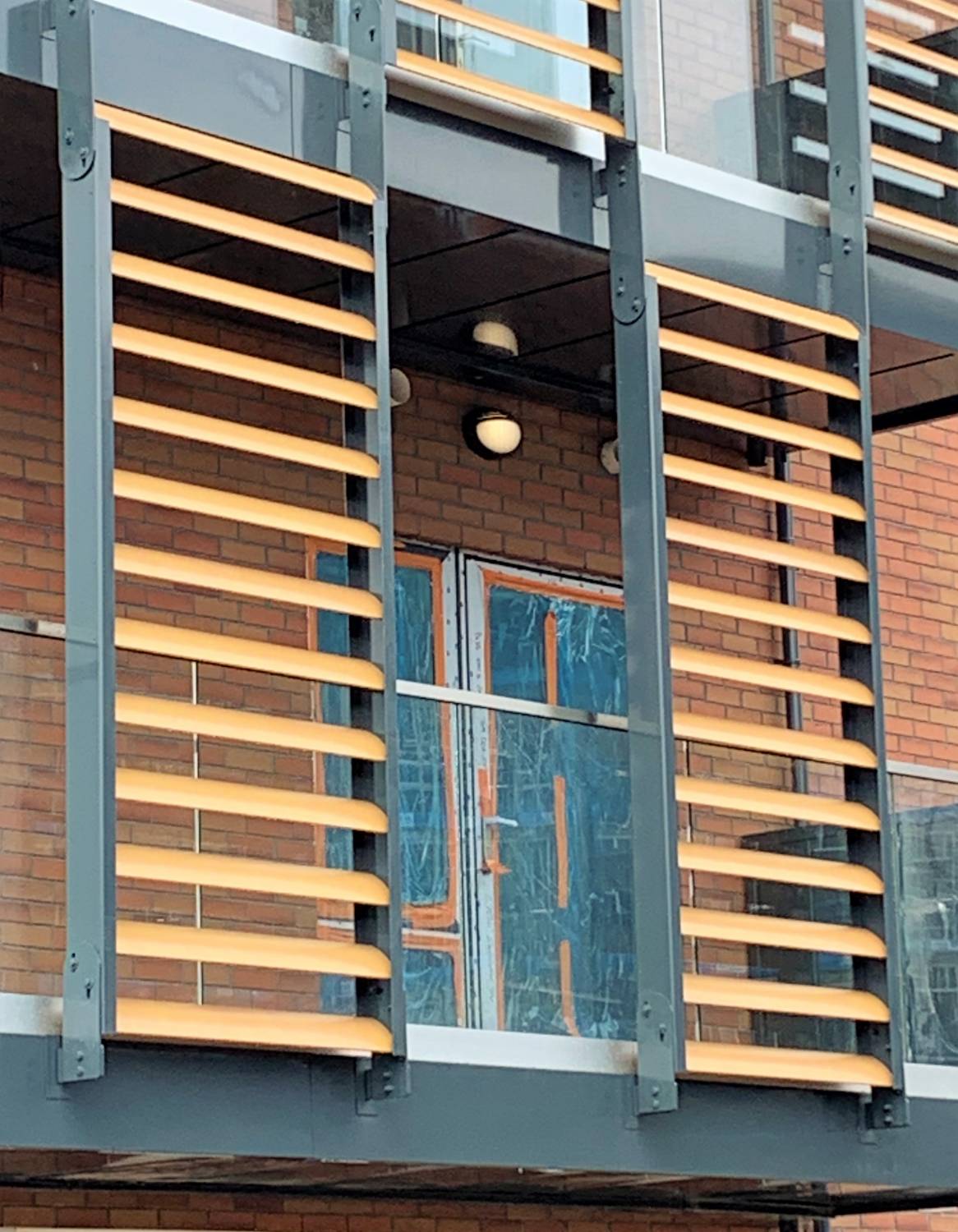

  • Architectural metalwork including facade, solar shading, spandrel panels, handrail etc.
  • General metalwork including signage, retail display, gates, posts.

Description

Powdertech Wood Finish (PWF™) was formulated by Powdertech to match the natural variations in colour, grain density and grain pattern of wood. Some of the finishes also have texture. Wood has an instinctive appeal as a building material, associated with the natural world and its warmth and texture.


Features and benefits:

  • Combines the strength and longevity of metal with the look of natural wood.
  • No pattern repeat - no two coated pieces ever look exactly the same.
  • Can be applied to most metallic substrates including aluminium, galvanized steel, cast metals and stainless steel.
  • Good weather resistance and colour stability.
  • Conforms to Reaction to Fire classification A2,s1-d0
  • Low maintenance - unlike wood.
  • Adapts to curved surfaces such as columns and posts.
  • Can be cut and drilled for fabrication.
  • There are 35 standard colours in smooth or texture finishes.
  • PWF Roughwood introduces the textured feel of wood.
  • Applied worldwide since 2000.
  • Resistance to boiling water, no blistering and no loss of adhesion.
  • Cylindrical mandrel bending, tested to ISO 1519, 5 mm mandrel, no cracking or detachment.

General information

Color

-

Finish

Smooth

Textured

Wood grain

Woodgrain

Manufacturer guidance

Available as smooth or textured finish.

Material

Polyester

Manufacturer guidance

Powder coating material is a thin layer of pigmented polyester applied to a base metal.

Shape

Formless

Warranty description

25 year

Guidance for specification option:

For C2 and C3 environments: 25-year warranty for gloss, colour and adhesion.

For C4, C5I and C5M environments: Guarantees are conditional on project location, environmental conditions and pre-contract approval.

Uniclass

Pr_35_31_68_66 Powder coatingsPrimary
Pr_35_31_22_55 Multicoloured finish spatter coatings
Pr_35_31_22_54 Multicoloured coatings

CAWS

N91/580 External sign

N91/580 External sign

N91/120 Bespoke signage system

N91/120 Bespoke signage system

Q50/130 Gate

Q50/120 Steel gate

H92/130 Major non-standard components

H10/115 Patent glazing

H13/115 Structural glass assembly

H20/150 Sheet cladding (attached to metal support systems)

H20/155 Sheet cladding (attached to timber battens)

H31/120 Metal

H92/830 Powder coating

L10/650 Metal louvres

L30/560 Proprietary balustrades

L30/550 Purpose-made balustrades

L35/420 Carbon steel components

L35/410 Aluminium components

H10/10 Patent glazing

H20/10 Sheet cladding

H11/830 Powder-coating

R10/13 Combined fascia, soffit and gutter

H11/130 Sun screens

H11/110 Curtain walling

H11/140 Louvres

H11/145 Integrated access equipment

H92/120 Rainscreen cladding

L10/460 Rooflights

L10/550 Glazed metal screens

L10/560 Glazed screen system

R10/321 Combined fascia, soffit and gutter

Z31/120 Powder coating materials

L10/45 Rooflights

L30/55 Proprietary balustrades

L30/50 Purpose-made balustrades

L10/51 Glazed screen system

L10/54 Louvres

H43/120 Metal insulating sandwich panel

Specification data - Powder coatings

Standard

To BS EN 12206-1 and ISO 13438.

Powder formulation

Durable.

Gloss level

20—70%.

Guidance for specification option:

At 60ᵒ.

Film thickness

>60 µm.

Adhesion

Rating 0.

Guidance for specification option:

Dry adhesion cross hatch (ISO 2409) Rating 0, no coating detachment, wet adhesion (ISO 2409) after 1 hour pressure cooker rating 0, no detachment.

Accelerated weathering

1000 hours no significant change in colour, >50% retained gloss.

Guidance for specification option:

To ISO 16474-2:2013.

Sulphur dioxide resistance

24 cycles no infiltration.

Guidance for specification option:

Exceeding 1 mm from the scribe, no change in colour or blistering in excess of 2(S2) to ISO 4628-2.

Constant humidity resistance

1000 hours.

Guidance for specification option:

To ISO 6272-2, <1mm scribe creep. No blistering in excess of 2(S2) to ISO 4628-2.

Impact resistance

No cracking or detachment.

Guidance for specification option:

Tested to ISO 6272-2, reverse Impact test.

Erichsen cupping

No cracking or detachment.

Guidance for specification option:

Tested to ISO 1520, minimum 5 mm indent.

Permeability

No blistering or coating detachment.

Scratch resistance

E2 Pass.

Guidance for specification option:

To BS 3900.

Pre-treatment

Aluminium: Titanium-zirconium (TiZr) non-chrome six-stage pre-treatment.

Galvanized steel: Silane (oxsilan) non-chrome eight-stage pre-treatment.

Not required/ other.

Guidance for specification option:

Consult manufacturer for details for surfaces other than aluminium or galvanized steel.

Application method

Corona discharge system.

Guidance for specification option:

Powder application.

Fire rating (to BS EN 13501)

A2-s1, d0.

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

LCA: A1-A3. 3.29 to 5.06 Kg CO2 eq/kg. Contact Powdertech for more information.

Recyclability

Does not affect the recyclability of the substrate material

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

EPD
