PVC-U Log Pile Retention

Application

Landscaping and bank retention where a soft, engineered appearance is required.

Description

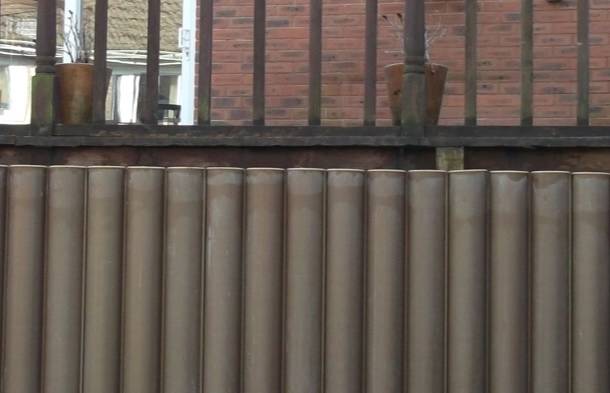

PVC-U log piling, comprising three logs extruded together with a timber composite finish to replicate the appearance of timber logs and enabling moss to grow to weather naturally.

Features and benefits:

  • Does not rot or rust.
  • Maintenance-free.
  • Clean, consistent appearance that doesn't age over time.
  • Can be easily cut or bored with no sparking.
  • Ability to create curved walls and 90º corners.
  • Not affected by salt water.
  • Resistant to chemicals and rodent and marine borer attacks.
  • Not affected by salt water.
  • Lighter than steel.

Applications:

Landscaping and bank retention where a soft, engineered appearance is required.

General information

Material

Polyvinyl chloride (PVC)

Uniclass 2015

Pr_20_85_62_66 Plastics sheet pilesPrimary

CAWS

D40/438 Special sheet piles

Specification data - Plastics sheet piles

Product Reference

PVC-U Log Pile Retention

Standard product features

Material:

Polyvinyl chloride (PVC).

Thickness:

6 mm.

Width:

429 mm.

Depth:

132 mm.

Technical characteristics:

  • Sheet weight: 11 kg/m.
  • Wall weight: 25.6 kg/m².
  • Tensile yield strength: 40 N/mm².
  • Modulus of elasticity: 2300 N/mm².
  • Secant modulus: 2.15 kN/mm².
  • Moment of inertia: 255 cm4/m.
  • Allowable movement (kNm/m): log pile only, 2626; log pile and hardwood post, 11.87; log pile and softwood post, 8.27; log pile and steel tube, 17.15.
