PVC Corner Fittings - Round Spigot

PVC Corner Fittings - Round Spigot

Wallbarn Ltd

Pre-cast corner fittings for drainage holes on roofs, balconies and terraces designed be heat bonded or sealed to the compatible synthetic waterproofing membrane.

Jump to:
+44 (0)20 8916 2222 www.wallbarn.com

Application

A corner fitting used for enhancing waterflow and waterproofing.

Description

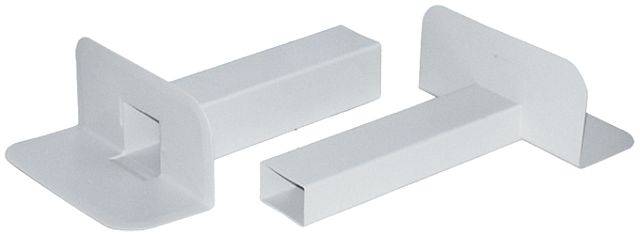

Tough and durable pre-cast corner fittings for drainage holes on roofs, balconies and terraces.


Features and benefits:

  • The outlet pipe is either round or rectangular shaped and is slightly recessed, with a small drop from the horizontal border flap to encourage the water to flow into the pipe immediately. It is also slightly angled to create a fall, encouraging faster flow of the water down the pipe.
  • Bonded by using hot air gun (not direct contact to a flame).
  • They can be fitted to vertical downpipes at the edge of the retaining wall, or on a horizontal plane through the upstand or wall to then connect to the external downpipe.
  • The corner fitting includes a flange which is heat bonded to the waterproofing membrane.
  • There is a range of size options to accommodate varying pipe widths.

General information

Color

White

Material

Polyvinyl chloride (PVC)

Size

50 mm

63 mm

75 mm

90 mm

110 mm

Show more

Uniclass 2015

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/365 Proprietary rainwater outlets

R10/26 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets Enhanced data

Material

Polyvinyl chloride (PVC).

Product Reference

PVC Corner Fittings - round spigot

Outlet pipe

Outlet pipe length: 500 mm for round mouth.

50 mm.

Round mouth (diameter).

63 mm.

Round mouth (diameter).

75 mm.

Round mouth (diameter).

90 mm.

Round mouth (diameter).

110 mm.

Round mouth (diameter).

Show more

Couplings

Not required.

To suit drainage outlet.

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

Wallbarn Catalogue for Pedestals, Decking, Green Roofs, Waterproofing, Geotextile & Drainage

Wallbarn Catalogue for Pedestals, Decking, Green Roofs, Waterproofing, Geotextile & Drainage

Pedestals & Support Pads Brochure

Pedestals & Support Pads Brochure
