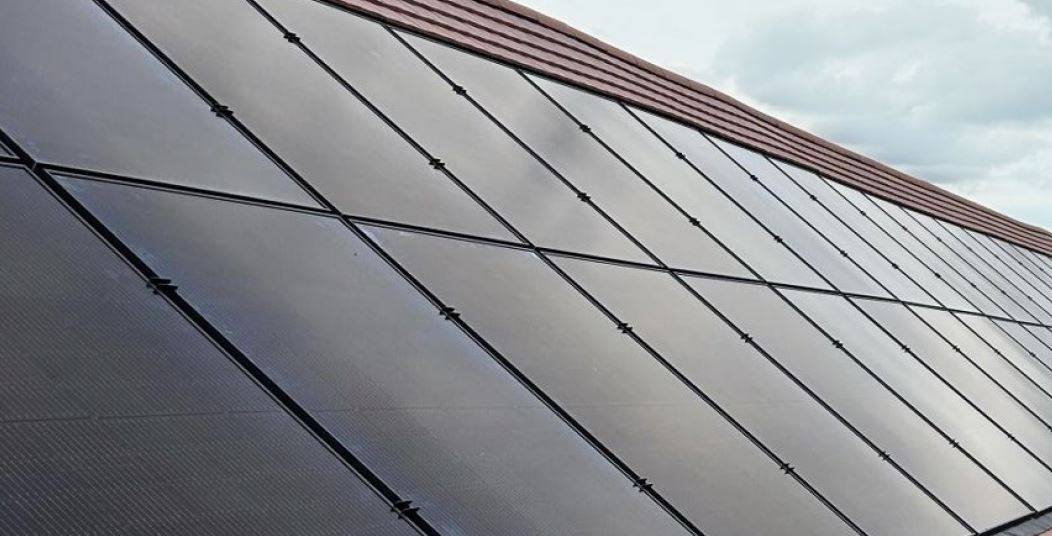

PV InDaX Adapt - Photovoltaic in-roof system
Verified by manufacturer 2 months ago
High output photovoltaic modules.
Application
Can be installed on roofs with pitches between 12–50° (subject to tile specification).
Compatible with all BMI Redland tiles and slates, and similar profiles. Can also be used with concrete and clay.
Description
High output photovoltaic modules, which can achieve any desired configuration in portrait format.
Features and benefits:
- Mounted in specially designed framing that optimizes the ventilation at the rear of each module and thereby maximizes the power output.
- Utilizes half-cut cell module technology.
- Attractive and weathertight roof covering.
- Sits in line with the surrounding tiles.
- Low overall height, with modules mounted in black-coated framing.
- Safe, flexible and quick assembly.
- Wide pitch range capability.
- Maximum energy yield.
- Weathertight and resistant to high wind uplift.
- Fully MCS and BBA-certified.
- 25-year power output guarantee.
- TÜV approved.
- MCS 005 and MCS 012 approved.
Consult manufacturer's literature for full technical specifications.
General information
Color | Black |
Material | Glass Guidance for specification option: Front panel: Anti-reflective (AR) coated, heat-strengthened glass. Polypropylene Guidance for specification option: Frame tray. Plastic Guidance for specification option: Back panel: Laminated thermoplastic. Aluminium Guidance for specification option: Framing. |
Shape | Rectangle |
Length | 1724 mm |
Width | 1134 mm |
Height | 30 mm Guidance for specification option: Depth/ thickness. |
Warranty description | Ten year Guidance for specification option: Product warranty. 25 year Guidance for specification option: Power output guarantee. BMI UK & Ireland guarantees that during the first year of operation the module power output will be at least 96.5% of the rated power output: from years 2-25, the manufacturer guarantees that the module power output will reduce by no more than 0.6% per year of the rated power output, such that by the end of the 25th year of operation, the modules will still provide a minimum power output of 80% compared to the rated power output. |
Uniclass | |
CAWS | H62/860 Photovoltaic modules H61/860 Photovoltaic modules H60/860 Photovoltaic modules H65/860 Photovoltaic modules |
Specification data - Photovoltaic modules
Third-party certification | MCS-certified product. |
Cell type | Monocrystalline. |
Format | Welded frame modules. |
Framework | |
Material | Aluminium.Guidance for specification option: Aluminium frame sits within a tray that is made from polypropylene. |
Colour | Black. |
Nominal output of module | |
Peak power | At standard test conditions (STC): 415 Wp. |
Output warranty | Minimum of 80% power output after 25 years. |
NumberOfCells | 108 solar cells per module. |
Voltage | At standard test conditions (STC): 31.61 V. |
Current | At standard test conditions (STC): 13.13 A. |
Nominal weight | 21.5 kg (approximately). |
