NBS Source

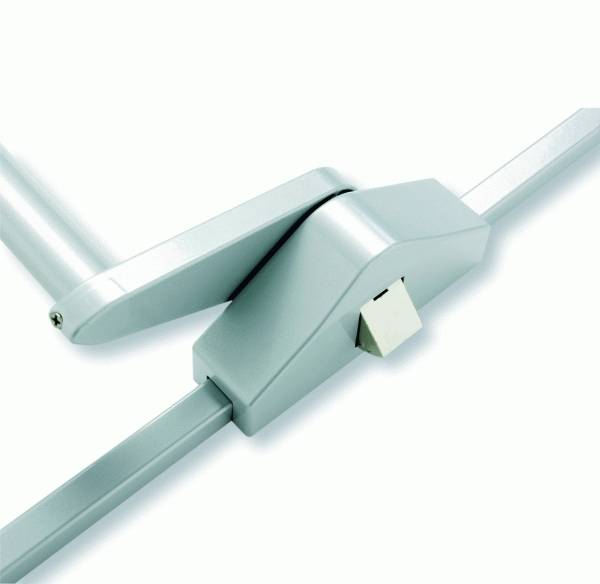

Push Bar Panic Device 882

Application

  • For single doors in buildings accessed by the public.
  • Suitable for push face of outward opening doors.
  • May be used on double doors with non-rebated meeting stiles (one 2 point 882 or 882-W per leaf).
  • Fixings to suit timber doors. Fixings for metal doors also available.
  • Non-handed for maximum flexibility.
  • Compatible with UNION 885 Outside Access Device.
  • Choice of upper and lower latches (882 and 882-W) or lateral latches (882L & 882L-W).

Description

Contemporary styling combined with the technology and convenience of Pullman latches.

Application:

  • For single doors in buildings accessed by the public.
  • Suitable for push face of outward opening doors.
  • May be used on double doors with non-rebated meeting stiles (one 2 point 882 or 882-W per leaf).
  • Fixings to suit timber doors. Fixings for metal doors also available.
  • Non-handed for maximum flexibility.
  • Compatible with UNION 885 Outside Access Device.
  • Choice of upper and lower latches (882 and 882-W) or lateral latches (882L & 882L-W).

Operation:

Downward pressure at any point on the push bar withdraws the latches ensuring immediate release of door.

Features:

  • Easy action upper and lower Pullman latches.
  • Rods and push bar can be cut to size.
  • Anti-thrust steel deadlatch.
  • Adjustable steel strike.
  • Complete with signage (BS EN 1125) and fixing instructions.
  • 10 year guarantee.

Additional information for this product is available from - http://www.uniononline.co.uk/en/site/Union-Online/Products/Exit-Devices/Exit-Hardware-with-Pullman-Latches/-Touch-bar-Panci-Lartch1/

General information

Features

Easy action upper and lower Pullman latches

Rods and push bar can be cut to size

Anti-thrust steel deadlatch

Adjustable steel strike

Complete with signage (BS EN 1125) and fixing instructions

Show more

Uniclass 2015

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/577 Panic exit devices

Product range

UNION Exit Hardware / UNION 880 Series

Specification data - Panic exit devices

Product Reference

882

For maximum door width of 900 mm.

882L

Lateral latch, for maximum door width of 900 mm.

882-W

For maximum door width of 1200 mm.

882L-W

Lateral latch, for maximum door width of 1200 mm.

Colour/ Finish

GRN

Green push bar and silver rods trim.

SIL

Silver push bar and silver trim.

WTE

White push bar and white trim.

Product Options

Maximum door height:

2350 mm.
