Application

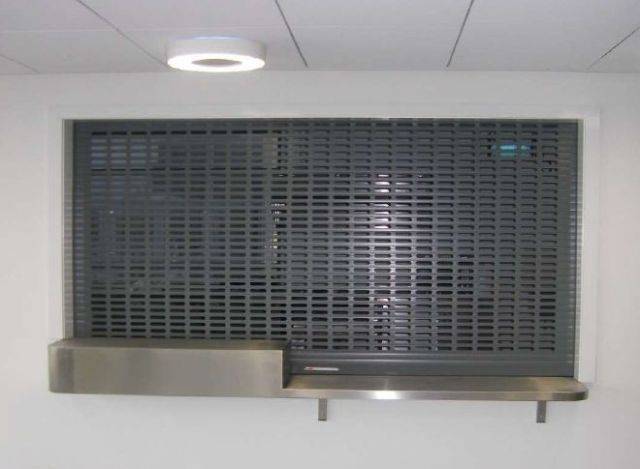

Suitable for securing openings such as shopfronts, servery counters, reception desks and bars, whilst maintaining through vision for advertising purposes. A close-fitting flat lath curtain, together with a neat and unobtrusive tubular motor drive system, allows the shutters to present an aesthetic and cost-effective solution to securing various types of opening.

Description

Steel, punched lath roller shutters, which are robust and have a long life with little maintenance required.

Features and benefits:

  • Curtain: constructed from 51 mm flat section galvanized steel laths, with punched holes and pressed steel end locks fitted to alternate laths to prevent lateral movement.
  • Bottom rail: galvanized steel inverted 'tee' section.
  • Guides: the side guides are formed from galvanized steel channels and prepared for fixing to the opening structure by means of continuous fixing angles.
  • End plates: fabricated from carbon steel of adequate thickness relative to door size, and supplied with angles for fixing to the structure.
  • Roller: the roller is manufactured from mild steel tube of sufficient diameter and wall thickness to resist deflection, and is mounted on bearings or cups on each end plate.
  • Operation: electrical operation is by means of a single-phase tubular motor. A safety brake is fitted to all shutters where personnel could pass underneath, thus meeting all relevant health and safety requirements. The client should provide a fused spur within 500 mm of the motor position.
  • Controls: the standard method of control is by means of internal, wall-mounted push-buttons.
  • Casings: coil casings fabricated from galvanized steel sheet are available as an optional extra.

Applications:

Suitable for securing openings such as shopfronts, servery counters, reception desks and bars, whilst maintaining through vision for advertising purposes. A close-fitting flat lath curtain, together with a neat and unobtrusive tubular motor drive system, allows the shutters to present an aesthetic and cost-effective solution to securing various types of opening.

General information
Size

Bespoke; consult manufacturer for details and insert requirements.

Finish

Galvanized

Standard.

Polyester powder-coated, RAL

Optional.

Uniclass 2015
Roller shutters (Pr_30_59_84_73)Primary
Specification data - Roller shutters
Product Reference

Punched Lath Roller Shutters

Size

Bespoke; consult manufacturer for details and insert requirements.

Finish

Galvanized

Standard.

Polyester powder-coated, RAL

Optional.

Fixing

Fixed in-between

Face-fixed

Accessories/ Other requirements

None

Fascias

Galvanized steel coil casing

Hoods

Key switches

Photocells

Radio remote control

Timer-closing

Standard product features

Weight:

Dependent upon the size and lath configuration but typically 25 kg/m².

Product Options

Size (w x h, maximum):

4 x 3 m.

Finish:

The majority of parts are galvanized, with other parts prime-painted. A polyester powder-coated finish in a range of standard RAL colours is available at extra cost.
