Pull Handle Straight D with Mitres ASH106 - Pull Handle
Verified by manufacturer 5 months ago
ASH106 - 19 mm
ASH106 - 19 mm

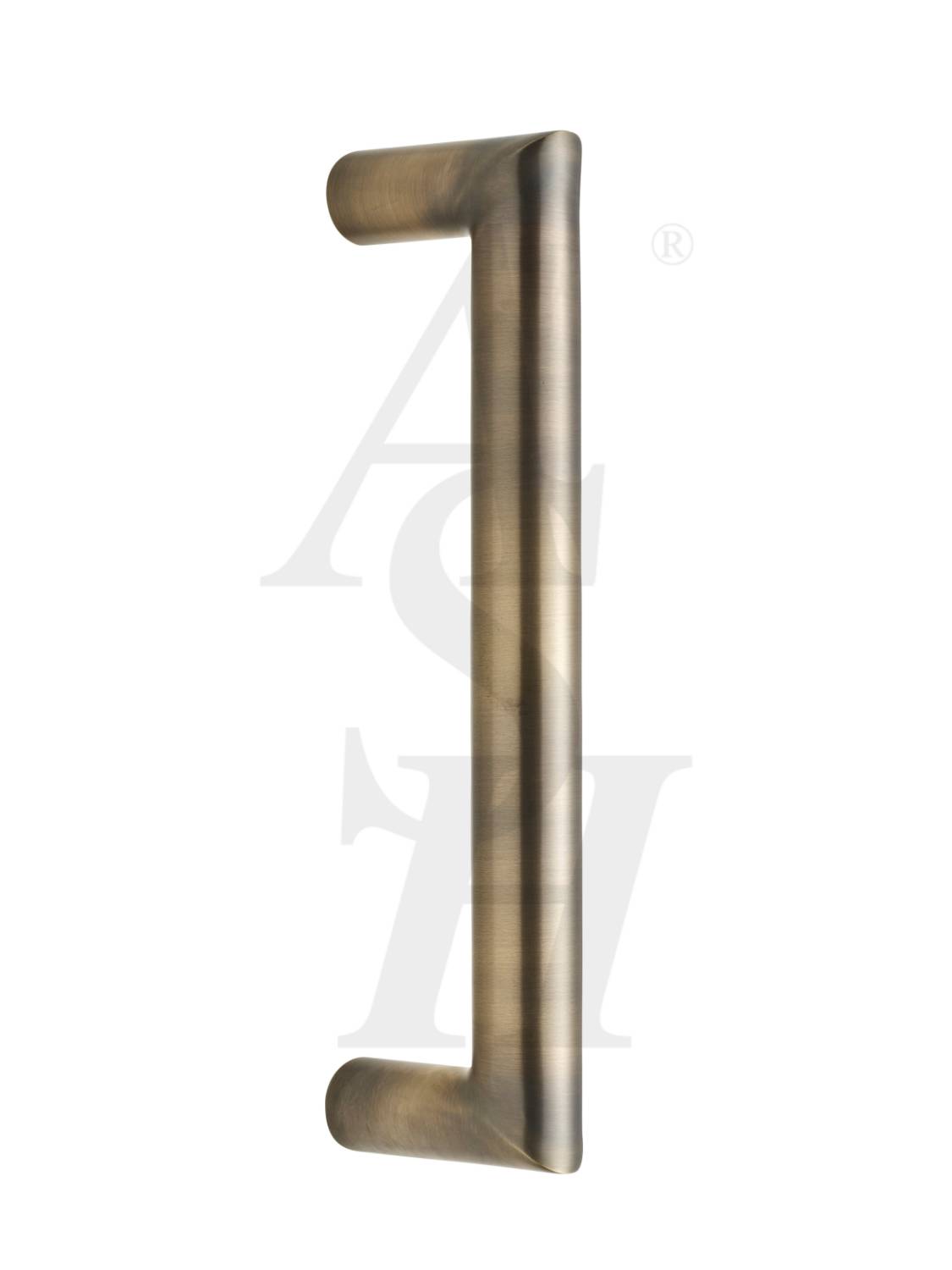

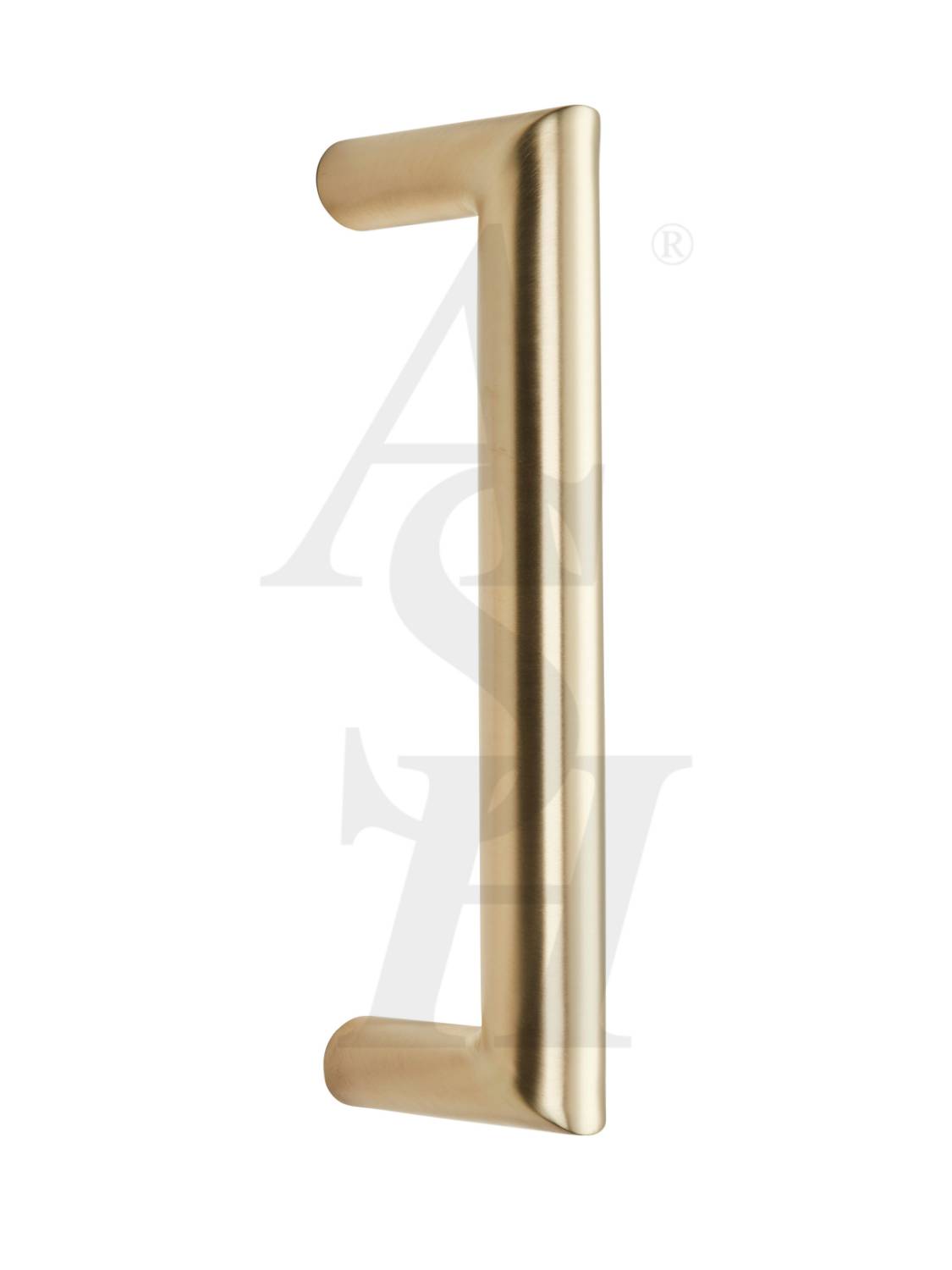

Straight tubular door pull handle with mitres.
Application
- Commercial doors.
- Aluminium doors.
- Timber doors.
- Glass doors.
Description
A straight tubular door pull handle with mitres.
It is available in a number of diameters, door fixing centres and finishes and comes complete with appropriate fixings to suit the door thickness.
Also available as a cranked or offset handle.
These door pull handles can be manufactured to any specified centres and are available in a range of materials.
General information
Color | Bronze Black Gold Silver Copper |
Finish | Brushed Antiqued Bright Powder-coated Manufacturer guidance19 finishes available |
Material | Metal Brass Bronze Copper Stainless steel |
Shape | Circle |
Length | Bespoke |
Width | 19 mm 25 mm 32 mm 38 mm 45 mm |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | P21/42 Pull handles P21/641 Pull handles |
Specification data - Pull handles
Form | Straight tubular. |
Diameter | 19 mm.Bespoke.Manufacturer guidanceGrip size. |
Distance between centres | 300-1050 mm. |
Material and finish | Satin brass (SB).Guidance for specification option: Brass. Polished brass (PB).Guidance for specification option: Brass. Peened brass (PEB).Guidance for specification option: Brass. Antique brass (AB).Guidance for specification option: Brass. Bronze patina (BP).Guidance for specification option: Brass. Weathered brass (WB).Guidance for specification option: Brass. Hammered satin brass (HSB).Guidance for specification option: Brass. Hammered polished brass (HPB).Guidance for specification option: Brass. Hammered antique brass (HAB).Guidance for specification option: Brass. Hammered bronze patina (HBP).Guidance for specification option: Brass. Hammered weathered brass (HWB).Guidance for specification option: Brass. Bronze powder coated 1 (BPC1).Guidance for specification option: Bronze powder coat. Bronze powder coated 3 (BPC3).Guidance for specification option: Bronze powder coat. Bronze powder coated 5 (BPC5).Guidance for specification option: Bronze powder coat. Bronze powder coated 7 (BPC7).Guidance for specification option: Bronze powder coat. Bronze powder coated 9 (BPC9).Guidance for specification option: Bronze powder coat. Satin black PVD (PVD.SBLK).Guidance for specification option: PVD. Polished black PVD (PVD.PBLK).Guidance for specification option: PVD. Satin brass PVD (PVD.SB).Guidance for specification option: PVD. Polished brass PVD (PVD.PB).Guidance for specification option: PVD. Satin copper PVD (PVD.SC).Guidance for specification option: PVD. Polished copper PVD (PVD.PC).Guidance for specification option: PVD. Satin gold PVD (PVD.SG).Guidance for specification option: PVD. Polished gold PVD (PVD.PG).Guidance for specification option: PVD. Satin stainless (SS).Guidance for specification option: Stainless. Polished stainless (PS).Guidance for specification option: Stainless. Peened stainless (PES).Guidance for specification option: Stainless. |
Colour | As material and finish. |
Mounting | Manufacturer guidanceFixing configuration dependent on requirements. Consult manufacturer for assistance. |
Projection | 65 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
ASH106 Product Data Sheet
