Pull Handle Cranked Guardsman on Posts ASH119 - Pull Handle

Verified by manufacturer 29 days ago

ASH119 - 19 mm

ASH Door Furniture & Entrance Specialists Ltd

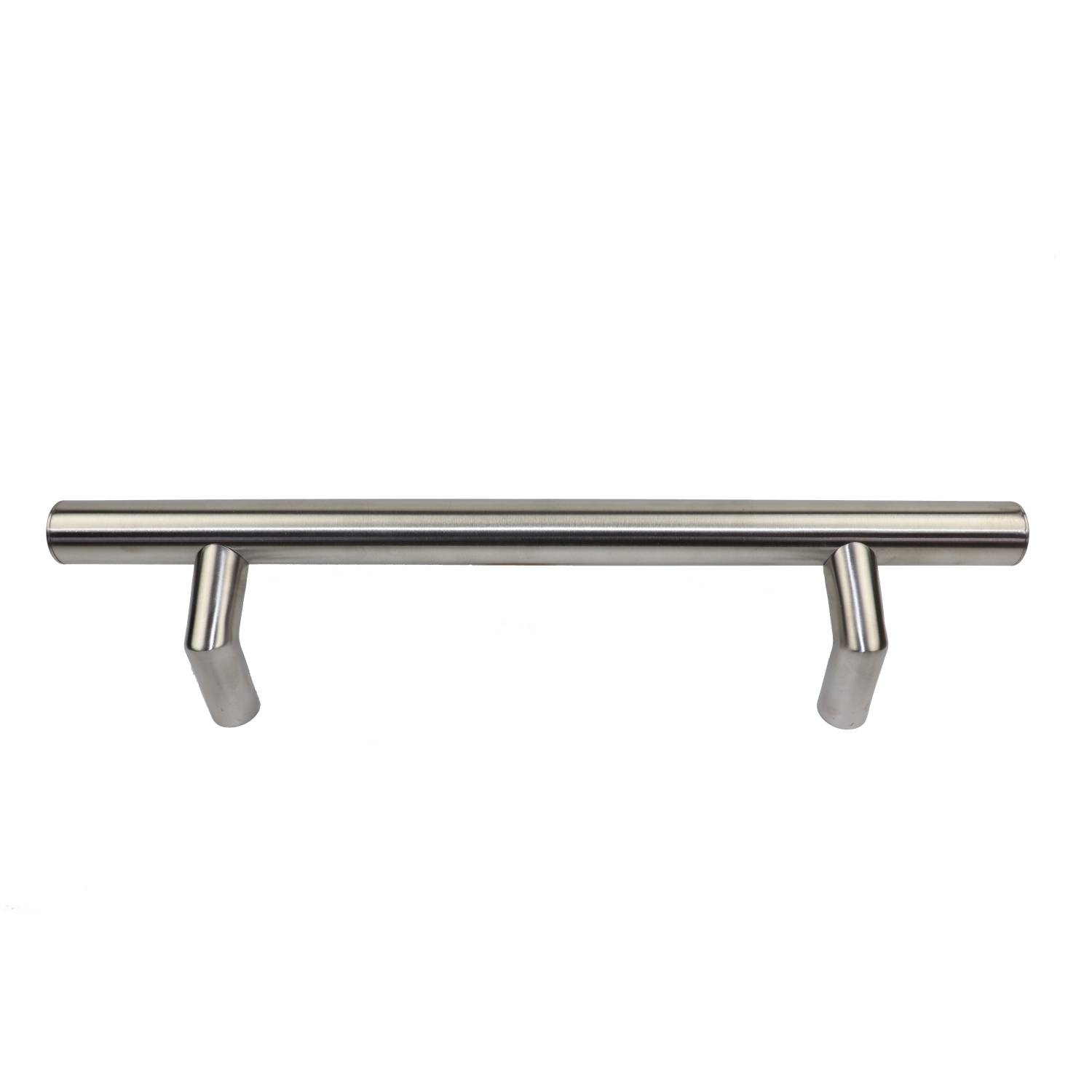

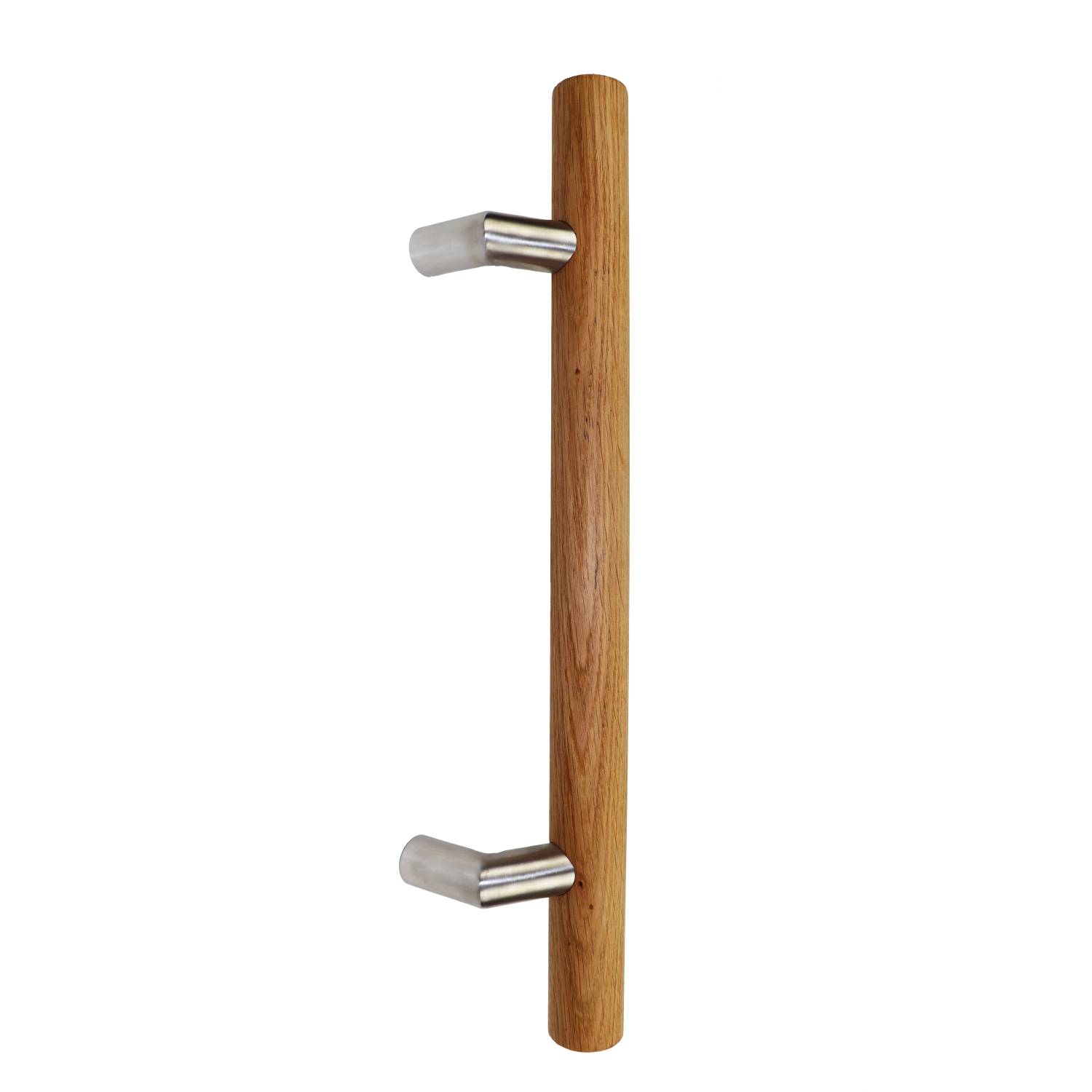

A cranked ‘Guardsman’ or ‘E’ style tubular pole door pull handle mounted on matching mitred posts.

Jump to:

+44 (0)115 987 4847 Website

Application

Commercial doors.
Timber doors.
Aluminium doors.
Cladded doors.
Glass doors.

Description

A cranked ‘Guardsman’ or ‘E’ style tubular pole door pull handle mounted on matching mitred posts. The handle is available in a number of diameters, door fixing centres and finishes. Appropriate fixings are available to suit the door thickness. The handles can be manufactured to any specified centres and the over-run at the ends can be made to suit requirements.

Features and benefits:

Multiple finishes available.
Different sized styles available.
Available in a range of materials.

General information

Color	Black Blue Bronze Copper Gold Silver White Other Show more
Finish	Brass Brushed Chrome Bright Weathered Satin Powder-coated Show more
Material	Brass Aluminium Bronze Stainless steel
Shape	Other Circle
Length	Bespoke
Width	19 mm 25 mm 32 mm 38 mm 45 mm 50 mm Bespoke Show more
Height	Bespoke
Warranty description	20 year

Uniclass	Pr_30_36_59_64 Pull handlesPrimary
CAWS	P21/42 Pull handles P21/641 Pull handles

SKU Code	ASH119

Specification data - Pull handles

Form	E handle.
Diameter	19 mm.
Distance between centres	300–1050 mm.
Material and finish	Satin Brass (SB). Guidance for specification option: Brass. Polished Brass (PB). Guidance for specification option: Brass. Peened Brass (PEB). Guidance for specification option: Brass. Antique Brass (AB). Guidance for specification option: Brass. Bronze Patina (BP). Guidance for specification option: Brass. Weathered Brass (WB). Guidance for specification option: Brass. Hammered Satin (HSB). Guidance for specification option: Brass. Hammered Polished Brass (HPB). Guidance for specification option: Brass. Hammered Antique Brass (HAB). Guidance for specification option: Brass. Hammered Bronze Patina (HBP). Guidance for specification option: Brass. Hammered Weathered Brass (HWB). Guidance for specification option: Brass. Bronze Powder Coated 1 (BPC1). Guidance for specification option: Bronze powder coated. Bronze Powder Coated 3 (BPC3). Guidance for specification option: Bronze powder coated. Bronze Powder Coated 5 (BPC5). Guidance for specification option: Bronze powder coated. Bronze Powder Coated 7 (BPC7). Guidance for specification option: Bronze powder coated. Bronze Powder Coated 9 (BPC9). Guidance for specification option: Bronze powder coated. Satin Black PVD (PVD.SBLK). Guidance for specification option: PVD. Polished Black PVD (PVD.PBLK). Guidance for specification option: PVD. Satin Brass PVD (PVD.SB). Guidance for specification option: PVD. Polished Brass PVD (PVD.PB). Guidance for specification option: PVD. Satin Copper PVD (PVD.SC). Guidance for specification option: PVD. Polished Copper PVD (PVD.PC). Guidance for specification option: PVD. Satin Gold PVD (PVD.SG). Guidance for specification option: PVD. Polished Gold PVD (PVD.PG). Guidance for specification option: PVD. Satin Stainless (SS). Guidance for specification option: Stainless. Polished Stainless (PS). Guidance for specification option: Stainless. Peened Stainless (PES). Guidance for specification option: Stainless.
Colour	As material and finish.
Mounting	Back plate, face-fix.

Projection	80 mm.
Throw	58 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Metal is recycable
