PSA MOB PF2 PS/SPU - Steel Encapsulated Panel

Description

BG systems feature loose lay flooring panels that are fully tested to the requirements of PSA MOB PS2/SPU.

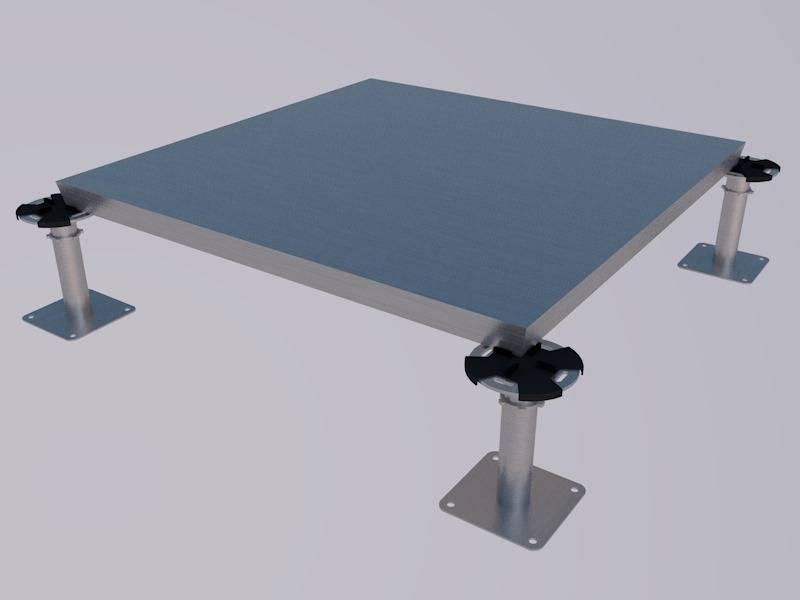

Precision engineered steel-encapsulated panels with a high performance particle board core, the BG system range is suitable for all types of general commercial office applications.

The core is wrapped and laminated with a galvanised steel top lid and bottom tray sheet all pressed together to make a fully steel encapsulated panel for greater strength.

BG systems enable easy panel removal and replacement. The system provides full electrical continuity and static dispersion where required.

The BG series of systems is world renowned for its exceptional characteristics of strength and durability.

BGM: MEDIUM GRADE, 8 kN/m2 UDL and BGH: HEAVY GRADE, 12 kN/m2 UDL are both ideal for general office and heavy office use.

PSA MOB PF2 PS/SPU - Steel Encapsulated Panel
- PSA BGM600 Medium Grade Gravity Lay Steel Encapsulated Panel
- PSA BGH600 Heavy Grade Gravity Lay Steel Encapsulated Panel

General information

Finish

Designed to be overlaid with finishes such as loose laid carpet tile

Color

Natural

Features

FSC® certified, extremely dimensionally accurate, designed to be loose laid with complete electrical continuity, high resistance to damage

Material

High density particle board core with steel top lid and bottom tray

Shape

Square

Size

600 x 600 x 31 mm

600 x 600 x 32 mm

Uniclass 2015

Pr_25_71_42_70 Raised access floor panelsPrimary

Digital objects

Platform Compatible Version Certified to
Revit
-

2

2.1
IFC
-

2

2.1
Download now from NBS National BIM Library
