PSA Medium Grade SD Vinyl Oversize Edge Banded Panel - Raised Access Floor Panel

Verified by manufacturer 7 days ago

Bathgate Flooring Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Access Flooring Panel. Medium Grade, gravity-laid, steel-encapsulated, oversized panel, with vinyl covering and edge banding.

Jump to:
BIM object icon
+44 (0) 1432 347700 Website

Application

Internal, Commercial, Office, access floor panels.

Description

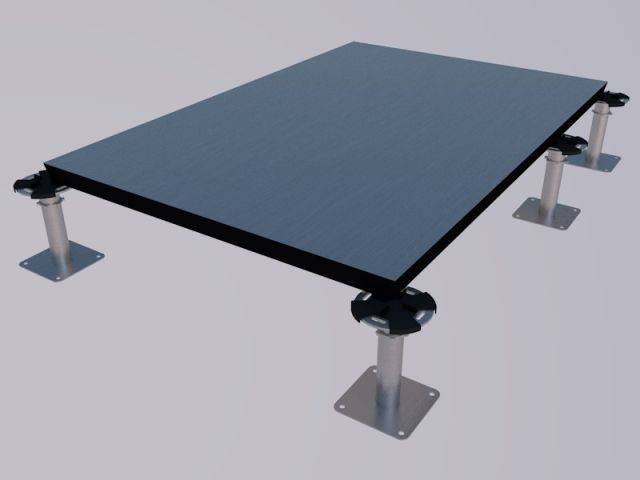

Raised Floor Panel, Medium Grade, gravity-laid, oversized panel, consisting of a high-grade, FSC®-certified, 30 mm thick, high-density particle board core in a sandwich construction with a steel top and bottom sheet, covered with standard static dissipative Gerflor Mipolam EL7 Robust Vinyl or other approved covering. A full-depth acrylonitrile butadiene styrene (ABS) edge band is then applied, creating a fully encapsulated 600 x 900 mm panel.


The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Medium Grade specification, and is certified as being fully compliant.


Features and benefits:

  • FSC®-certified.
  • Designed to be loose-laid with complete electrical continuity.
  • High resistance to damage.
  • Can be perforated for airflow.
  • Manufactured in the UK.

General information

Material

Steel

Top lid and bottom tray.

Acrylonitrile butadiene styrene (ABS)

Particleboard

Vinyl

Shape

Rectangle

Length

900 mm

Width

600 mm

Height

33 mm

WarrantyDescription

25 year

Uniclass

Pr_25_71_42_71 Raised access floor panels with finishPrimary

CAWS

K41/130 Raised access floor

K41/130 Raised access floor

K41/315 Floor panels

K41/315 Floor panels

Specification data - Raised access floor panels with finish

Casing

-

Material

Steel.

Factory finishes

Galvanized.

Core

HD particleboard.

Panel size

Width x length x height.

600 x 900 x 33 mm.

Dimensional deviations

To MOB PF2 PS/SPU.

Medium grade.

Weight (maximum)

Varies, consult manufacturer.

Panel fixing

Gravity laid.

Integral finish

-

Material

Gerflor mipolam EL7 robust vinyl.

Standard.

Special order.

Insert requirements.

Fixing

Integral finish fixing.

Factory-bonded.

Edges

Full-depth acrylonitrile butadiene styrene (ABS) edge band.

Colour

Contact manufacturer and insert requirements.

-

Perforations

Not required.

Required.

Insert requirements.

Loading

Load over: 4.5 kN (300 x 300 mm); Point load: 3 kN (25 x 25 mm); Working load safety factor: 3x; Uniform distributed load: 8 kN/m².

SurfaceSpreadOfFlame

Class 0.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

100

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

QA Certificate

QA Certificate

FSC®: Certified
