PSA Medium Grade Oversize Edge Banded Panel

PSA Medium Grade Oversize Edge Banded Panel

Bathgate Flooring Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Medium Grade, gravity-laid, steel-encapsulated oversized panel, with vinyl covering and edge banding.

Jump to:
+44 (0) 1432 347700 www.bathgateflooring.co.uk

Application

Access floor panel.

Description

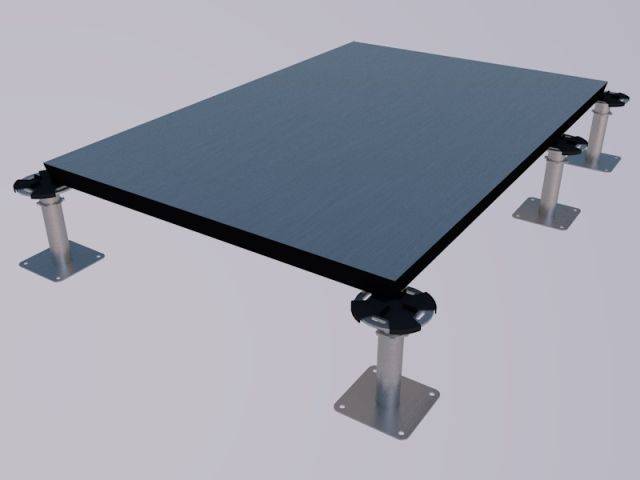

Medium Grade, gravity-laid oversized panel, consisting of a high-grade, FSC®-certified, 30 mm-thick, high-density particle board core in a sandwich construction with a steel top and bottom sheet. A full-depth acrylonitrile butadiene styrene (ABS) edge band is then applied, creating a fully encapsulated 600 x 900 mm panel.

The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Medium Grade specification, and is certified as being fully compliant.

Features and benefits:

  • FSC®-certified.
  • Designed to be loose-laid with complete electrical continuity.
  • High resistance to damage.
  • Can be perforated for airflow.
  • Manufactured in the UK.

Application:

Access floor panel.

General information

Finish

Galvanized

Material

Casing: steel top lid and bottom tray

Core: high-density particle board

Shape

Rectangular

Size

600 x 900 x 33 mm (w x l x h)

WarrantyDescription

25 years

Uniclass 2015

Pr_25_71_42_70 Raised access floor panelsPrimary

CAWS

K41/315 Floor panels

Specification data - Raised access floor panels

Product Reference

BEM69

Perforations

Not required

Required

Insert requirements.

Standard product features

Colour:

Natural.

Finish:

Galvanized.

Material:

  • Casing: steel top lid and bottom tray.
  • Core: high-density particle board.

Shape:

Rectangular.

Size:

600 x 900 x 33 mm (w x l x h).

Warranty description:

25 years.

Weight (maximum):

33 kg/m².

Panel fixing:

Gravity-laid.

Integral finish – edges:

Full-depth acrylonitrile butadiene styrene (ABS) edge band.

Panel grade (to PSA MOB PF2 PS/SPU March 1992):

Medium Grade.

Load over:

4.5 kN (300 x 300 mm).

Point load:

3 kN (25 x 25 mm).

Working load safety factor:

3 x.

Uniform distributed load:

8 kN/m².

Surface spread of flame:

Class 0.

Third party certifications

QA Certificate

QA Certificate

FSC®: Certified
