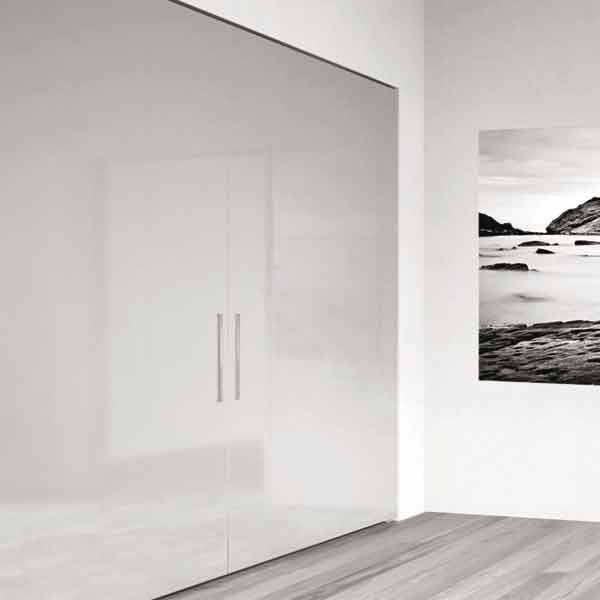

PS40 Flush Sliding Door System
Description

Flexible sliding door system for a pair of large flush wardrobe doors, each panel slides in front of the other, with soft closing in both directions. Guide rails, made of anodized aluminium, with self activating anti-derailment and can be cut to size.

Features:

  • Panel weight (maximum): 60 kg.
  • Door thicknesses: 16–55 mm.
  • Door width: 934–1800 mm (600 mm when using one door only).
  • With -4/ +6 mm height adjustment.
  • Also available for a three door application.

General information
Features

Panel weight (maximum): 60 kg

Door thicknesses: 16–55 mm

Door width: 934–1800 mm (600 mm when using one door only)

With -4/ +6 mm height adjustment

Also available for a three door application

Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Sliding door and partition sets
Product Reference

PS40 Flush Sliding Door System

Guide rails

Bottom rail 3050 mm, 400.50.965

Top rail 3050 mm, 400.50.763

Fitting set

For left hand door, 400.50.008

For right hand door, 400.50.001

Accessories

None

Cover profile, 400.50.764

Dust brush profile, 400.50.500

Standard product features

Fitting set:

  • Top guide, handed.
  • Bottom guide, handed.
  • Top device for door hooking/ adjustment, zinc alloy.
  • Bottom device for fixing bottom guide to door, zinc alloy.
  • Top lock, handed, plastic.
  • Bottom lock, handed, zinc alloy.
  • Door corners spacers set.
  • Soft closing device, handed.
  • Activator for soft closing device, handed, metal.
