PRX-RS-03

Verified by manufacturer over a year ago

System depth: 220 mm

Firth Steels Ltd Variant:

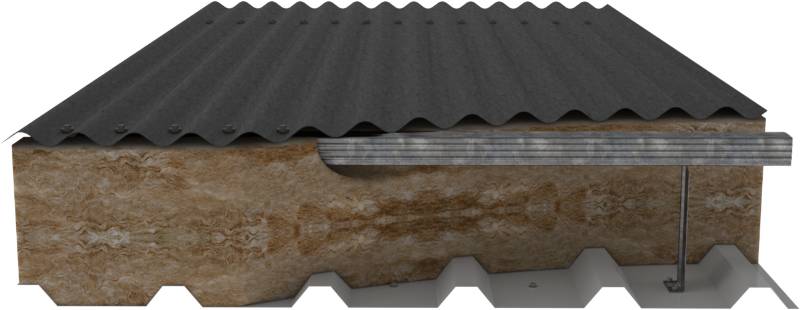

Protex® roof system.

Jump to:
+44 (0)1484 405940 Website

Application

Insulated roof system.

Description

Protex® Insulated Roof System 03 is a Built-up Roof System available with a 25 Year Guarantee.


The exterior profile is Mission XP40 as standard ensuring a high performance 40 year coating warranty combined with a system guarantee of 25 years. The N1000WL walkable liner profile enables reduction in installation times by offering a nonfragile liner profile. The system utilities approved components sourced directly through our Protex® approved supply partners to offer a competitive system solution.


Features and Benefits:

  • 25 Year System Guarantee.
  • Reduced installation times.
  • Flexible thermal performance.
  • Excellent acoustic performance.
  • Advanced coating range.
  • All Products CE marked.
  • Manufactured to ISO9001:2015.
  • Building Regulations Part L2 Compliant.
  • Perforated liner available.
  • Self Curve - 40 meters radius.

General information

Color

White

Guidance for specification option:

Liner profile - Bright white.

Grey

Guidance for specification option:

Goosewing grey or anthracite.

Other

Guidance for specification option:

Full colour range available.

Finish

Plastisol

Guidance for specification option:

F200 Plastisol. External profile. Standard.

Granite

Guidance for specification option:

HDX Granite. External profile.

Polyester

Guidance for specification option:

Mission XP40. Liner profile.

Material

Steel

Warranty description

25 year

Guidance for specification option:

System guarantee.

40 year

Guidance for specification option:

Coating warranty.

Size

Guidance for specification option:

120—430 mm system depth available.

Manufacturer guidance

System depth.

Uniclass

Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary

CAWS

H31/120 Metal

H31/110 Metal

H31/10 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

Liner sheets

-

Material

Steel.

Guidance for specification option:

S280 +z275 Grade Steel.

N1000WL 0.7 mm Liner Profile.

Primary fasteners

Protex® approved fixings.

Air and vapour control layer

-

Fasteners

Protex® approved fixings.

Sealing

Protex® approved sealants.

Spacers

Ashgrid AG40 system.

Acoustic insulation

Protex® approved insulation.

Guidance for specification option:

Insulation from Knauf, Rockwool or SuperGlass.

Thermal insulation

Protex® approved insulation.

External sheets

-

Material

Steel.

Guidance for specification option:

N14/3 Sinus 0.7 mm Roof Profile.

Primary fasteners

Protex® approved fixings.

Secondary fixings

Protex® approved fixings.

Thermal

0.20 W/m²k.

Acoustic performance

56 (dB).

Fire performance

Broof (t4).

System depth

220 mm.

Thickness

220 mm.

Manufacturer guidance

0.040 W/mk.

Liner

Bright white polyester.

Manufacturer guidance

Colour finish.

External

Mission XP40.

Guidance for specification option:

As standard.

HDX granite.

GreenCoat Hiarc Max.

Manufacturer guidance

Finish.

System

Guidance for specification option:

Supplied by Hambleside Danelaw or Brett Martin.

Manufacturer guidance

Daylight systems.

Sustainability data

Country of product manufacture

United Kingdom
