Proteus Pro-Cold System - Waterproofing Liquid Applied System

Verified by manufacturer 17 days ago

Built-up roof (warm exposed)

Proteus Waterproofing Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Liquid-applied roof waterproofing system for use on built-up roof (warm exposed), cold roof (exposed), overlay, coating to metal roof sheets and coating to gutters.

Jump to:
+44 (0)1268 777871 Website

Application

Suitable for:

Built-up roof (warm exposed), cold roof (exposed), overlay, coating to metal roof sheets and coating to gutters.


Suitable substrates:

  • Existing mastic asphalt.
  • Existing bituminous membrane.
  • Existing PVC/TPO single ply membrane.
  • Existing EPDM membrane.
  • Existing GRP.
  • Structural concrete.
  • Plywood deck.
  • Cross laminated timber deck.
  • Metal roof sheets.
  • Metal gutters.
  • Brickwork.
  • Blockwork.
  • Porous surface.

Some surfaces may require priming or sacrificial layers.

Description

A high performance, cold applied, seamless, elastomeric, liquid applied membrane system for waterproofing exposed and protected flat and pitched roof areas.


It is a single pack, moisture triggered polyurethane, quickly resistant to rain at application stage and can cure under water without gassing or foaming. It is designed to provide a monolithic, waterproof, liquid applied membrane that does not brittle with age.


The excellent and long lasting performance of Proteus Pro-Cold® liquid applied membrane is provided by the combination of the Pro-Force reinforcement (specified separately) and the Proteus Pro-Cold® polyurethane characteristics.


Features and benefits:

  • European fire classification of BROOF(t4).
  • Cold installed, elastomeric and seamless waterproofing membrane – no lap-joints.
  • Moisture triggered curing - Shower proof at 30 minutes.
  • Low/high temperature application range of 2–35°C.
  • Awkward details easily completed.
  • UV stable, resistant to diluted acids and alkalis, oil, petrol, diesel, vegetable oils and fruit acids.
  • Proteus Pro-Cold® systems can be overcoated at the end of their designed life to extend the service life of the Proteus Pro-Cold® liquid applied membrane, reducing lifecycle costs and landfill waste.
  • BBA Certified 30 years - Certificate No. 22-6497.

General information

Color

Grey

Guidance for specification option:

  • RAL7015- Slate Grey.
  • RAL7038- Light Grey.

Finish

Smooth

Textured

Material

Polyurethane (PUR)

Shape

Formless

Warranty description

30 year

Guidance for specification option:

Proteus guarantees are available, subject to the current terms and conditions which are available separately on request.

Uniclass

Ss_30_40_30_43 Liquid-applied warm roof covering systemsPrimary

CAWS

J31/5 Cold deck roof coating

J31/120 Warm deck roof coating

J31/110 Cold deck roof coating

J31/10 Warm deck roof coating

Specification data - Liquid-applied warm roof covering systems

Preparation

-

Horizontal work

Pro-Prime® SA.

Guidance for specification option:

  • For best results ensure that surfaces to be primed are free from oil or dust.
  • Apply Pro-Prime® SA by roller or brush at a rate min of 5 m²/lit (the green colour will indicate the treated area); refill roller if ‘cobwebbing’ appears. Avoid puddling of the primer.
  • Drying time will be affected by surface porosity, film thickness and temperature and can vary between 40-90 minutes.
  • Pro-Prime® SA will remain tacky even after dry.
  • To test, use the back of a glove or dry object to press into the primer and remove; there should be no transfer of primer when the primer is ready. It is essential that sufficient drying time is allowed as any entrapment of solvent will result in blistering/ delamination.
  • Only prime areas that will be covered with Pro-Carrier SA within 2-3 hours. Avoid walking over areas already primed.


As per manufacturers instructions.

Skirtings and vertical work

As horizontal work.

Pro-Epoxy Primer.

Pro-Sealer WB.

Air and vapour control layer

Pro-Vapour/ Carrier Membrane SA.

Guidance for specification option:

Fixed using Pro-Prime® SA.

Insulation

-

Type

Proteus Pro-Therm Cellular Glass.

Proteus Pro-Therm HP PIR Plus.

Proteus Pro-Therm HP PIR.

Proteus Pro-Therm Mineral Wool.

Proteus Pro-Therm PIR.

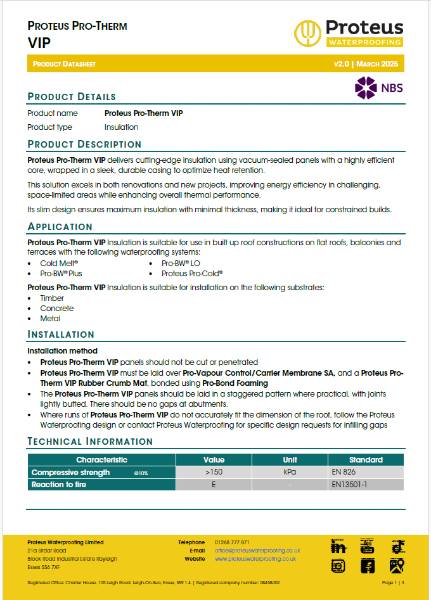

Proteus Pro-Therm VIP.

Fixing

Proteus Pro-Bond Foaming Adhesive.

Carrier membrane

-

Type

Pro-Vapour/ Carrier Membrane SA.

Fixing

Pro-Prime® SA.

Liquid-applied waterproofing

-

Type

Proteus Pro-Cold®, RAL 7015 - Slate Grey.

Proteus Pro-Cold®, RAL 7038 - Light Grey.

Manufacturer guidance

Proteus Pro-Cold® is a high performance, cold applied, seamless, elastomeric, liquid applied membrane for

waterproofing exposed and protected flat and pitched roof areas.

Reinforcement

Pro-Force.

Surface treatment

None.

Anti-slip walkway.

Reaction to fire classification

BROOF(t4).

Third-party certification

BBA certificate.

Sustainability data

Contains Red List materials

No

Material

Polyurethane (PUR)

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA - Proteus Pro-Cold®

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management

Literature

Product Data Sheet - Proteus Pro-Cold®

Product Data Sheet - Proteus Pro-Cold®

Material Safety Data Sheet - Proteus Pro-Cold®

Material Safety Data Sheet - Proteus Pro-Cold®

Material Safety Data Sheet - Proteus Pro-Prime® TPO 1 Litre

Material Safety Data Sheet - Proteus Pro-Prime® TPO 1 Litre

Material Safety Data Sheet - Proteus Pro-Prime® TPO 5 Litre

Material Safety Data Sheet - Proteus Pro-Prime® TPO 5 Litre

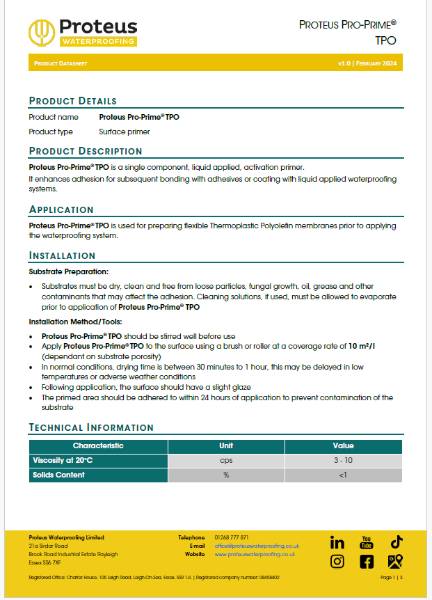

Product Data Sheet - Proteus Pro-Prime® TPO

Product Data Sheet - Proteus Pro-Prime® TPO

Material Safety Data Sheet - Proteus Pro-Joint Tape SA

Material Safety Data Sheet - Proteus Pro-Joint Tape SA

Case studies

Case Study - Proteus Pro-Cold® - BMI The Blackheath Hospital

Case Study - Proteus Pro-Cold® - BMI The Blackheath Hospital

Case Study - Proteus Pro-Cold® - The Gatehouse Whaddon

Case Study - Proteus Pro-Cold® - The Gatehouse Whaddon
