Protan SE PVC Single-Ply Roof Waterproofing Membrane

Protan SE PVC Single-Ply Roof Waterproofing Membrane

Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Protan (UK) Ltd

Plasticized PVC single-ply roof waterproofing membrane with a knitted polyester reinforcement. For installation in the Protan Standard Overlap, Protan Prefabricated and Protan Vacuum Systems.

Jump to:
+44 (0)1925 658001 www.protan.co.uk
Application

Suitable for new build and refurbishment applications on flat or pitched roofs.

Description

Features:

  • Suitable for new build and refurbishment applications on flat or pitched roofs.
  • Protan SE membrane is manufactured from pliable PVC reinforced with knitted polyester. The PVC contains stabilizers, which provide fire resistance and make the product UV stable and resistant to both high and low temperatures. The membrane remains flexible at low temperatures, during installation and use.
  • Protan SE membrane has a unique slip resistance surface texture, which provides a significant safety factor when walked upon in wet weather.

Durability:

  • Accelerated weathering tests and in-service performance indicates that Protan SE 1.2 mm membrane should have a life in excess of 40 years with mandatory maintenance.
  • Protan SE 1.6/ 1.8 mm membranes may have a longer life expectancy.
  • The use of lighter colours helps to reduce surface temperature, which may improve the membrane’s ageing performance.

Fire Resistance:

–Tests indicate that:

  • A system comprising 0.7 mm profiled steel decking, 50 mm polyurethane insulation with an aluminium foil facing on the upper side and glass tissue facing to the underside, and one layer of Protan SE mechanically fixed, will be unrestricted.
  • Asystem comprising 0.7 mm profiled steel decking, 0.21 mm thick vapour control layer, 90 mm foil-faced polyurethane insulation, and one layer of Protan SE mechanically fixed can be classified under BS EN 13501-5:2005 as Broof (t4).
  • A system comprising 0.7 mm profiled steel decking, a polyethylene vapour control layer, 150 mm foil faced Kingspan TR26 PIR insulation and one layer of Protan SE mechanically fixed can be classified under BS EN 13501-5:2005 as Broof (t4).
  • A system comprising an 18 mm plywood deck, a polyethylene vapour control layer, 150 mm foil faced Kingspan TR26 PIR insulation and one layer of Protan SE mechanically fixed can be classified under BS EN 13501-5:2005 as Broof (t4).

Substrates:

  • Concrete roof decking.
  • Plywood WBP to BS 5268–2 and BS EN 636–3, minimum thickness 18 mm.
  • Roofing Grade OSB Board to BS EN 300, Grade 3, minimum thickness 18 mm.

Properties of waterproof membrane:

– Thickness: 1.2 mm.

  • Weight: 1.4 kg/m².
  • Roll length: 20 m.
  • Roll widths: 1000 and 2000 mm.
  • Tensile strength (EN 12311-2(A)): >1050 N/50 mm.
  • Elongation at break (EN 12311-2(A)): >15%.
  • Tear strength (EN 13210-2): 210 N.
  • Unique slip resistant texture.

– Thickness: 1.6 mm.

  • Weight: 1.8 kg/m².
  • Roll length: 20 m.
  • Roll widths: 1000 and 2000 mm.
  • Tensile strength (EN 12311-2(A)): >1100 N/50 mm.
  • Elongation at break (EN 12311-2(A)): >15%.
  • Tear strength (EN 13210-2): 210 N.
  • Unique slip resistant texture.

– Thickness: 1.8 mm.

  • Weight: 2.1 kg/m².
  • Roll length: 15 m.
  • Roll widths: 1000 and 2000 mm.
  • Tensile strength (EN 12311-2(A)): >1100 N/50 mm.
  • Elongation at break (EN 12311-2(A)): >15%.
  • Tear strength (EN 13210-2): 210 N.
  • Unique slip resistant texture.
  • Protection layer (recommended):

- Protan F2B Protection Fleece:

  • Weight: 140 g/m².
  • Material: Polypropylene.
  • Use: Over timber or plywood decks, smooth or screeded concrete, old single ply membrane or bitumen roofs. (Please contact Protan (UK) Ltd for further guidance.).

- Protan F300M Protection Fleece:

  • Weight: 300 g/m².
  • Material: Polypropylene.
  • Use: Over smooth or screeded concrete, old bitumen roofs, concrete. (Please contact Protan (UK) Ltd for further guidance.).

Application:

Suitable for new build and refurbishment applications on flat or pitched roofs.

General information
Color

Dark grey (RAL7012) or light grey (RAL7040)

Features

Anti-slip texture, when prefabricated, secret-fix strips are factory-welded to the reverse side to minimise on-site welding

Finish

Anti-slip texture

Material

Polyvinyl chloride (PVC) reinforced with knitted polyester

WarrantyDescription

Protan System Warranty

Uniclass 2015
Ss_30_40_30_78 Single layer sheet cold roof covering systemsPrimary
CAWS

J42/130 Cold deck roof covering

Specification data - Single layer sheet cold roof covering systems
Product Reference

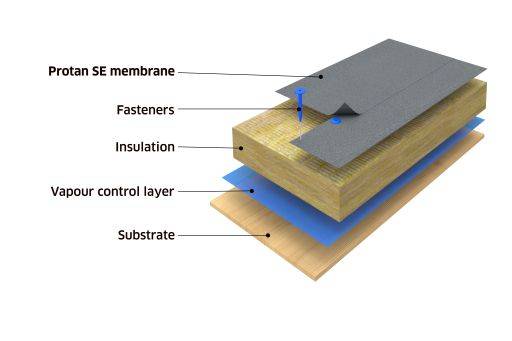

Protan Standard Overlap System - SE Membrane, Cold Roof Construction

Waterproof covering -
Type

Protan SE Membrane

Protection layer

Protan F2B Protection Fleece

Protan F300M Protection Fleece

System accessories

None

Protan Approved Fixings

Protan Approved Leaf Guard

Protan Approved Mastic

Protan Cover Strip

Protan G 1.5 mm Detailing Membrane

Protan Grip Bar

Protan Laminated Metal

Protan Lightning Conductor Clips

Protan Omega Profiles

Protan Prefabricated External Corners

Protan Prefabricated Internal Corners

Protan Prefabricated Pipe Collars

Protan ProJual Rainwater Outlets

Protan Stainless Steel Jubilee Clips

Protan Walkway Membranes

Waterproof Covering Thickness

1.2 mm

1.6 mm

1.8 mm

Width

1000 mm

2000 mm

As manufacturer's recommendations

Colour

Black

Subject to minimum order.

Blue

Subject to minimum order.

Copper green

Subject to minimum order.

Dark grey

Light grey

Red

Subject to minimum order.

White (Cool Roof)

Subject to minimum order.

Standard product features

Features:

Anti-slip texture. When prefabricated, secret fix strips are factory welded to the reverse side to minimise onsite welding.

Finish:

Anti-slip texture.

Material:

Polyvinyl chloride (PVC) reinforced with knitted polyester and polypropylene protection fleece.

Size:

1.2 mm, 1.6 mm, 1.8 mm (thickness), 1000 mm, 2000 mm, As manufacturer's recommendations (width), 20 m roll length or 15 m roll length.

Warranty Description:

Protan system warranty.

Recyclability:

Fully recyclable at the end of its working life.

Environmental information
Recyclability

Fully recyclable at the end of its working life

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2016 6 2.0
ARCHICAD
- 1.0
AECOsim
- 1.0
Vectorworks
- 1.0
Download now from NBS National BIM Library
