Protan G PVC Single-Ply Roof Waterproofing Membrane

Protan G PVC Single-Ply Roof Waterproofing Membrane

Protan (UK) Ltd

Plasticized PVC single-ply roof waterproofing membrane with a glass fibre carrier. For installation in the Protan Green and Protan Protected Systems, as well as for detailing.

Jump to:
+44 (0)1925 658001 www.protan.co.uk
Description

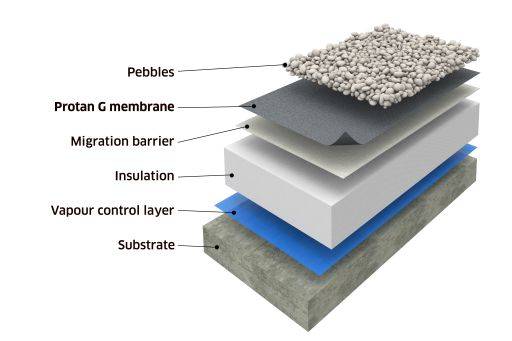

Protan G PVC single-ply membranes are designed for installation in the Protan Green and Protan Protected systems in warm, cold and inverted roof constructions.

Protan G membranes are manufactured from pliable PVC with a glass fibre carrier. The PVC contains stabilisers, which make the membranes resistant to both high and low temperatures and UV-stable; and a fungicide for added protection against microbial attack.

The membranes are suitable for new-build and refurbishment projects on flat and pitched roofs, as well as forming details in exposed systems and fully adhered up-stands in the Protan Adhered System.

Protan G membranes are usually loose-laid, although they can be supplied with secret-fix strips factory-welded to the reverse side to allow for mechanical fixing.

General information
Finish

Anti-slip texture

Color

Dark grey (RAL7012) or light grey (RAL7040)

Features

Anti-slip texture, when prefabricated, secret-fix strips are factory-welded to the reverse side to minimise on-site welding and allow for mechanical restraint

Material

Polyvinyl chloride (PVC) reinforced with glass fibre

Size

2 x 15 m roll

WarrantyDescription

Protan System Warranty

Uniclass 2015
Pr_25_57_51_66 Polymeric membranesPrimary
Digital objects
PlatformCompatibleVersionCertified to
AECOsim
- 1.0
ARCHICAD
- 1.0
Vectorworks
- 1.0
Revit
Revit 2016 4 2.0
IFC
IFC2X3 3 1.3
Download now from NBS National BIM Library
