This product is no longer available

Description

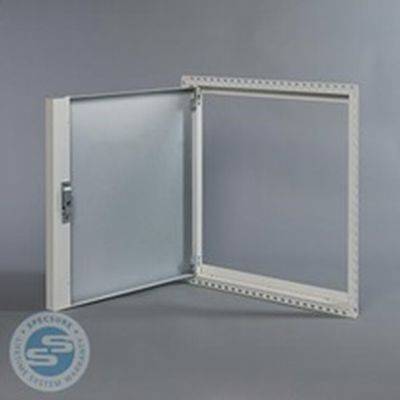

A range of access panels designed to provide access in British Gypsum ceiling systems and for wall applications.

Fire-rated and non fire-rated panels are available, in a range of finishes and sizes, with a variety of lock types

General information
Size

300 x 300 mm

450 x 450 mm

600 x 300 mm

600 x 600 mm

600 x 900 mm

600 x 1200 mm

Uniclass 2015
Access panels (Pr_30_59_36_01)Primary
Specification data - Access panels
Product Reference

Profilex Access Panel

FireRating

None

60 minutes

120 minutes

Size

300 x 300 mm

450 x 450 mm

600 x 300 mm

600 x 600 mm

600 x 900 mm

600 x 1200 mm

Lock type

3-point

Budget

Tamper proof

Touch catch

Standard product features

Frame:

Picture frame:

  • Used where supporting construction is already built.
  • The frame is visible after installation.
  • Panels are powder coated gloss white.

Product Options

Lock types:

– Budget:

  • Basic lock operated by an 8 mm square open drive.
  • Used where low security locking is required.

– Tamper proof:

  • Used where a medium level of security is required.
  • Needs a key to open, but the key will open any tamper proof lock.

– 3-point:

  • Operates as budget lock, but locks to the side and, by the use of shoot bolts, to the top and bottom of the frame.
  • Used on 120 minute fire-rated access panels.

– Touch catch:

  • Operated by pushing the door near the touch catch, which then springs slightly open.
  • Used on loft hatches.
