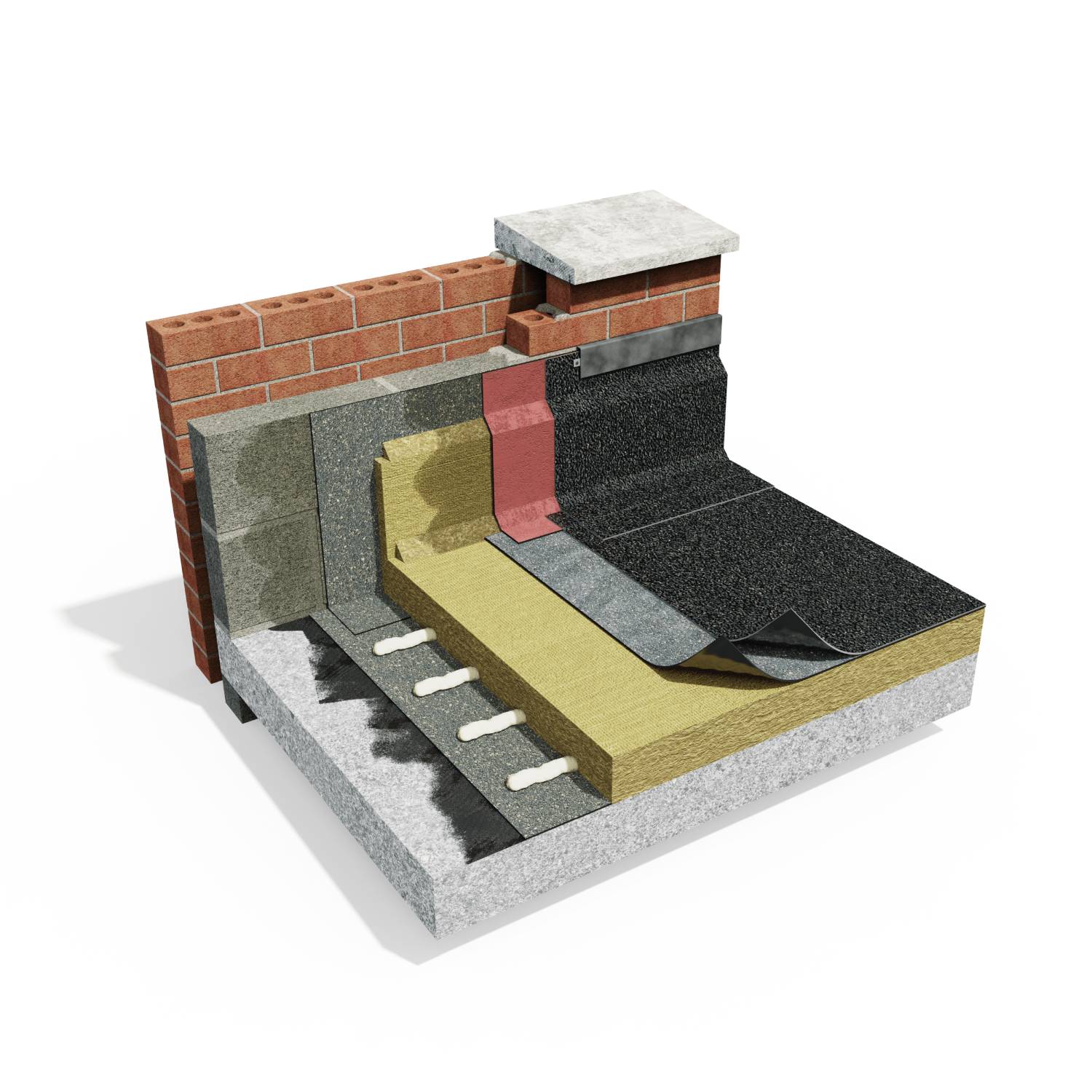

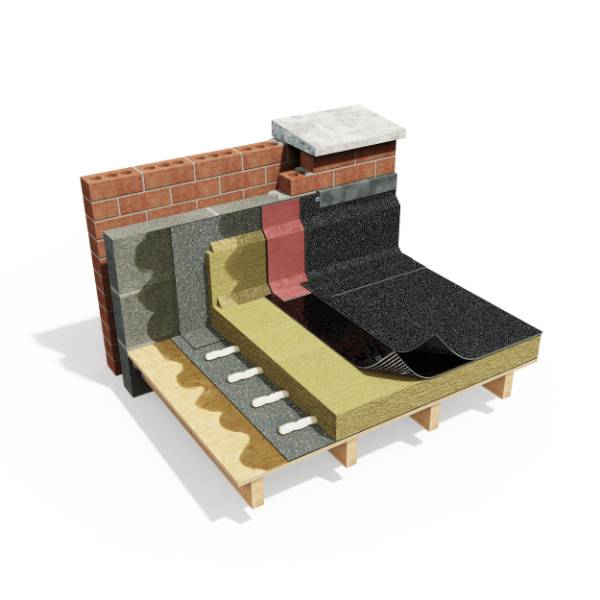

Profiles XL FireSmart Plus System - Warm Roof / Torch On / Full Bond / Heated / MW - System Number 10

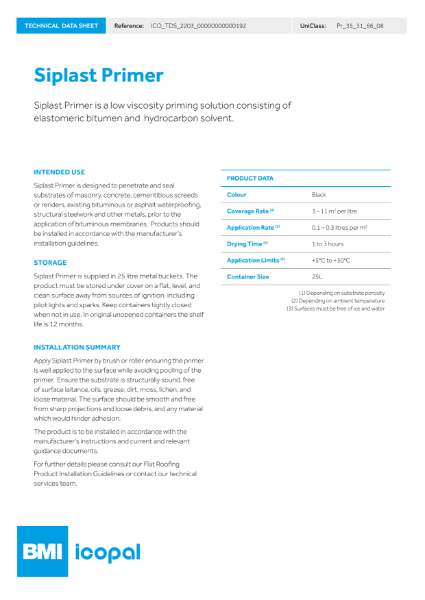

Siplast Primer.

Guidance for specification option:

Low viscosity priming solution consisting of elastomeric bitumen and hydrocarbon solvent.

• Colour: Black.
• Coverage rate: 3–11 m² per litre.
• To be applied by brush or roller.
• Application rate: 0.1–0.3 L/m².
• Application limits: 5–30°C.
• Drying time: 1–3 hours.
• Available in container sizes of 25 L.

As Horizontal work.

Icopal Torch On VCL.

Guidance for specification option:

Glass reinforced SBS-modified bitumen membrane with silica sand on the upper surface.

• Independently site and laboratory tested by the British Board of Agrément and awarded BBA certificate number 09/4645, Products Sheet 4.
• CE marked.
• Upper surface: Silica sand.
• Lower surface: Heat-activated self-adhesive SBS-modified bitumen with release sheet.
• Type of reinforcement: Glass, 80 g/m².

Characteristics:

• Length, to BS EN 1848-1: 15 m.
• Width (including selvedge), to BS EN 1848-1: 1 m.
• Straightness, to BS EN 1848-1: <20 mm/10m.
• Effective thickness, to BS EN 1849-1: 3.5 mm.
• Mass per unit area, to BS EN 1849-1: 3.8 kg/m².
• Water tightness, to BS EN 1928 (A): Pass.
• Water vapour resistance, to BS EN 1931: SD >1500 m.
• Reaction to fire, to BS EN 13501-1: Class E.
• Tensile strength, to BS EN 12311-1: 840 N/50mm (MD); 550 N/50mm (TD).
• Elongation, to BS EN 12311-1: 3.5% (MD); 3.8% (TD).
• Dimensional stability, to BS EN 1107-1: ≤0.5.
• Flexibility at low temperature, to BS EN 1109: ≤-10°C.

Consult manufacturer's literature for tolerances.

Icopal Insulation Spray Adhesive.

Guidance for specification option:

Must be laid on a clean level surface.

The boards are to be installed in accordance with the manufacturer's instructions and current and relevant standards such as BS 6229 and BS 5250.

For further details consult the manufacturer's Flat Roofing Product Installation Guidelines or contact their technical services team.

Torch-applied.

Torch-applied.

As Waterproof covering.

FormFlash lead-free roof flashing.

Guidance for specification option:

Insert requirements.

• Roll length: 10 m; available in widths between 120 and 950 mm.
• Lightweight, lead-free alternative for roof flashing. 50% lighter than Code 4 lead making it easier to handle and speedier to install.
• FormFlash fixing clips included.
• Smooth grey finish.

Not required.

As Waterproof covering.

Not required.

As Waterproof covering.

Not required.

As Waterproof covering.

Not required.

None.

Roofgard GRP Edge Trims.

Guidance for specification option:

A range of perimeter trims is available in sizes B50, B100 or B150, with match internal and external corners available throughout.

Consult manufacturer and insert requirements.

Roofgard Universal Outlets.

Guidance for specification option:

Insert requirements.

Standard sizes: 50, 62, 80, 90 or 145 mm.

Leaf grate also available.

Roofgard Parapet Outlets.

Guidance for specification option:

Roofing outlet that complements built up roof systems allowing drainage of the roof through the parapet to an external hopper.

Insert requirements: 100 mm outlet opening as standard. Leaf grate, 45° chute and extension also available.

Roofgard Cable & Pipe Ducts.

Guidance for specification option:

Provides a weatherproof sleeve for cables or tubes that penetrate through a flat roof

Rockwool Hardrock M/Fix Angle Fillet.

Roofgard Universal Cowled Telescopic Vents.
