Profab 2000 - Access panels

Description

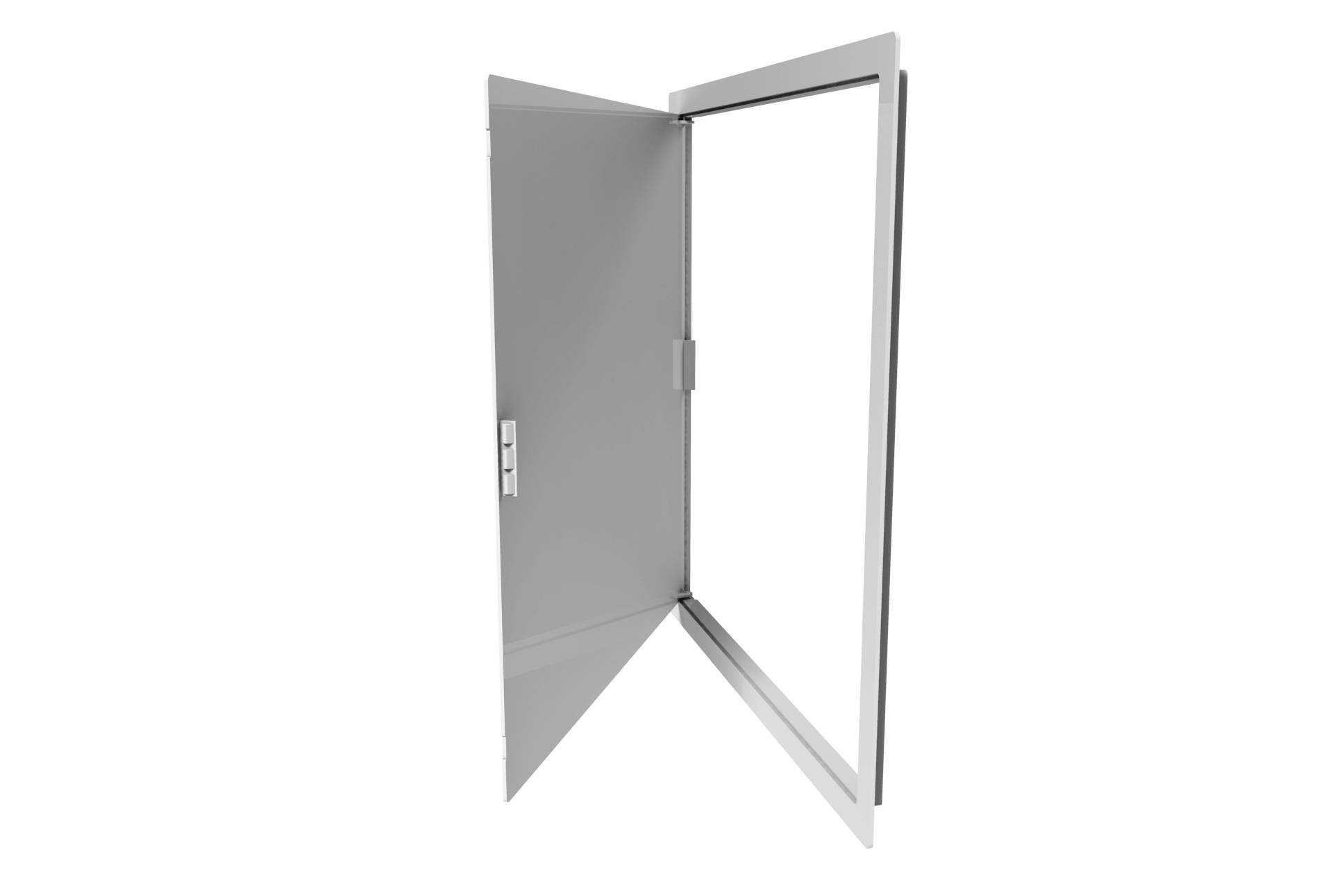

The 2000 metal series access panel provides a simple, economic solution to ceilings and walls, suitable for new build or retrofitted after remedial work where lockable access is required.

Door and frame finished with a lightly textured surface suitable for painting over if required.

Unique three way installation option available, which includes;

  • Using the holes in the frame, the panel can be secured to the structure by using standard fasteners, or
  • Bending the metal tags on the back of the panel frame to secure onto the back of the structure or
  • Applying proprietary contact adhesive to the 25 mm picture frame (for wall installation only).

Customization of the access panel may be possible including alterative sizes, lock and paint colours, consult manufacturer for details.

General information

Size

100 x 150 mm

150 x 225 mm

200 x 200 mm

350 x 350 mm

Color

White

Features

The door can easily be opened with a standard flat-head screwdriver

Material

Styrene plastic

Uniclass 2015

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/145 Wall lining system (metal studs)

K10/15 Lining on timber

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/25 lining on timber . . . . . .

K10/30 Metal stud

K10/430 Access panels

K10/50 Suspended ceiling system on metal framing

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

K40/135 Board-suspended ceiling system

K40/280 Access units

L20/630 Hatches

Specification data - Access panels

Product Reference

2000 Series Metal Access Panel

Size

100 x 150 mm

150 x 225 mm

200 x 200 mm

350 x 350 mm

Standard product features

Frame:

1.2 mm thick electro-galvanized carbon steel incorporating a 25 mm visible picture frame with radiused corners. Factory welded to specified size and finished white powder coat gloss paint.

Door:

0.9 mm electro-galvanized carbon steel tray finished white powder coat gloss paint.

Lock:

The door is held closed with a concealed budget lock (BL) which opens towards the user. The pivot hinge system allows the door to be removed during installation. A white round removable cap on the door face conceals the keyhole.

Frame depth:

21 mm with the door in the closed position. In the open position adds a further 8 mm along the hinge side.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

3

2.0
IFC
-

3

2.0
Download now from NBS National BIM Library
