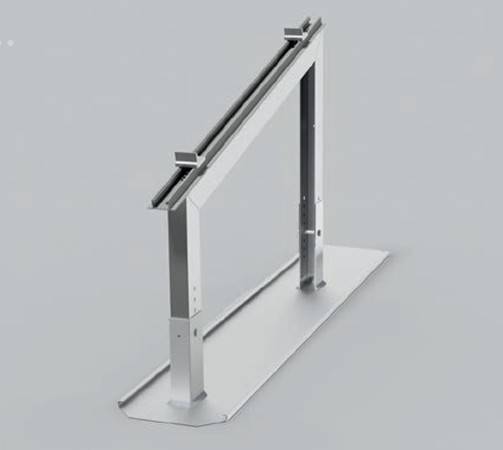

Pro-Living® Bio-Solar Mount - Bio-Solar Green Roof Component
Verified by manufacturer 7 days ago
Load-supported solar mounting system for photovoltaic (PV) modules without roof penetration, including base plate, mounting frame, screws, nuts, and pre-assembled rail fixings.
Application
Suitable for use on extensive and bio-diverse roofs with waterproofing membranes such as Cold Melt®, Proteus Hot Melt®, Pro-BW® Plus, Pro-BW® LO, and Proteus Pro-Felt® Ultima Plus Anti-Root Capsheet.
Description
Pro-Living® Bio-Solar Mount is a load-supported solar mounting system for the mounting of PV modules without the need for roof penetration.
Features and benefits:
- Load-supported solar mounting system for PV modules.
- No need for roof penetration.
- Consists of base plate and mounting frame.
- Supplied with screws and nuts for fastening to the base plate.
- Includes pre-assembled rail fixings.
- Suitable for use with a wide range of waterproofing membranes.
Should be installed in accordance with the requirements of BS 6229, BS 8217, BS 8000-0 and BS 8000-4.
Consult manufacturer/ literature for installation guidelines.
General information
Color | Silver |
Finish | Natural |
Material | Aluminium |
Shape | Other |
Length | 1390 mm |
Width | 260 mm |
Height | 717 mm |
Warranty description | Other Guidance for specification option: Defects arising from lack of maintenance or abnormal use may fall outside of the cover of the Proteus Waterproofing guarantee. |
Uniclass | |
CAWS | Q37/355 Combined layers |
Specification data - Free-standing mounting frames for solar modules
Classification data | |
Material | Aluminium. |
Tilt angle | Variable with three fixed settings at 10, 15 and 20°. |
Dimensions | 1390 x 717 x 260 mm. Guidance for specification option: Length x height x width. |
Roof pitch | 0–5°. |
Weight | 4.2 kg. |
Sustainability data
Material | Aluminium |
Literature
Product Data Sheet - Pro-Living® Bio-Solar Mount
