PRO 100PC Channel drain with cast iron grating H150, D400 - Drainage Channels with Grating
Verified by manufacturer 4 days ago
Heavy-duty drainage channel made made of high quality polymer concrete with steel edge rails and cast iron grates. Rated D400 to EN 1433, it supports loads up to 40 tonnes.
Application
Drainage channel suitable for commercial and industrial settings: retail car pars, trading estates, warehouses, roads, distribution centres, petrol stations and more.
Description
Vodaland PRO Series drainage is carefully designed for demanding and heavy duty environments including but not limited to industrial parks, depots, truck stops, and petrol stations.
PRO 100PC Channel drain is made of high quality polymer concrete and feature reinforced steel edges and comes with two half-metre cast iron grates featuring a modern pattern. This drainage channel and grates are rated load class D400 as per EN 1433 and can safely support loads up to 40 tonnes.
Features and benefits:
- Made of polymer concrete.
- Reinforced with steel edges.
- Comes fitted with cast iron grating with KTL coating.
- Load class D400.
- 1000 mm length.
- 100 mm internal and 146 mm external width.
- 150 mm depth.
- Flow rate - 6 l/s
- Channel comes equipped with reinforced edges and cast iron grates.
General information
Color | Black Grey Other |
Finish | Coated Guidance for specification option: Protective KTL coating. |
Material | Cast iron Concrete |
Shape | Rectangle |
Length | 1000 mm |
Width | 146 mm |
Height | 150 mm |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
SKU Code | 070077334/150 |
Specification data - Drainage channels with gratings
Classification data | |
Standard | To BS EN 1433. |
Properties | |
Material | Polymer concrete. |
Gratings | |
Material | Cast iron. |
Form | Slotted. |
Colour | Black. |
Load class (minimum) | D 400. |
Channel unit dimensions | |
Width (nominal) | 146 mm. Guidance for specification option: 100 mm internal and 146 mm external width. |
Depth (nominal) | 150 mm. |
Length | 1000 mm. |
Sustainability data
Material | Cast iron Concrete |
Similar products from Vodaland
BASE 100P Channel drain with cast iron grating, C250 - Drainage Channels with Grating
BASE DN150 Plastic Channel Drain with Galvanized Steel Slotted Grate, A15 - Drainage Channels with Grating

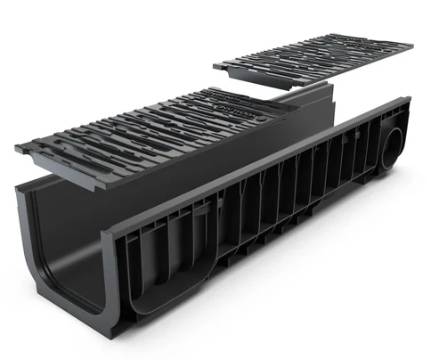

BASE DN200 Plastic Channel Drain with Cast Iron Grate, C250 - Drainage Channels with Grating
BASE DN200 Plastic Channel Drain with Galvanized Steel Slotted Grate, A15 - Drainage Channels with Grating
EASY 2 Radius channel drain, A15 - Curved Drainage Channels with Grating
Modular LD100 Stainless steel channel drain with mesh anti-slip grating B125 - Drainage Channels with Grating

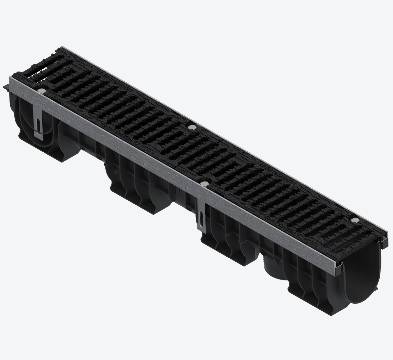

PRO DN100 Plastic Channel Drain with Cast Iron Grates, D400 - Drainage Channels with Grating
